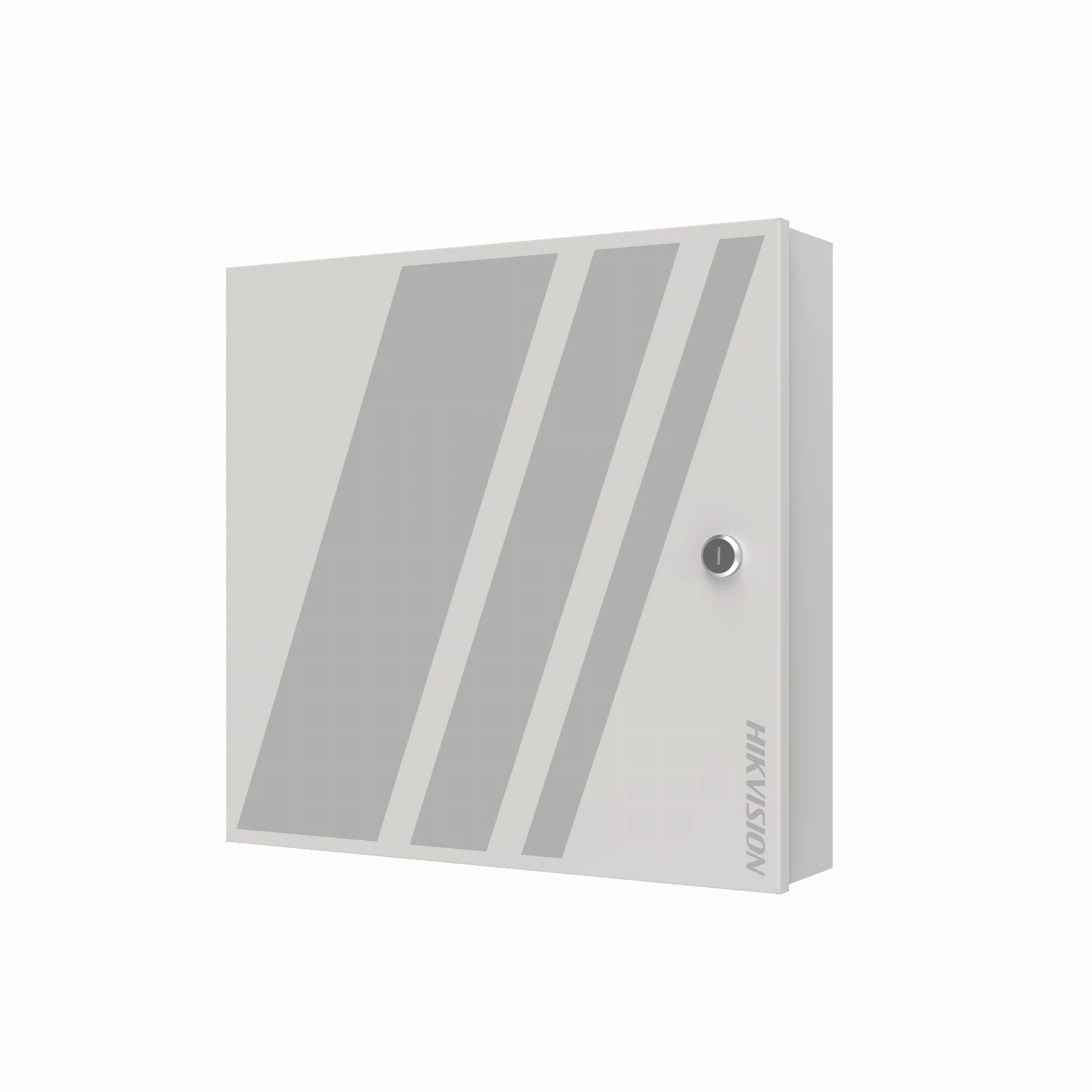

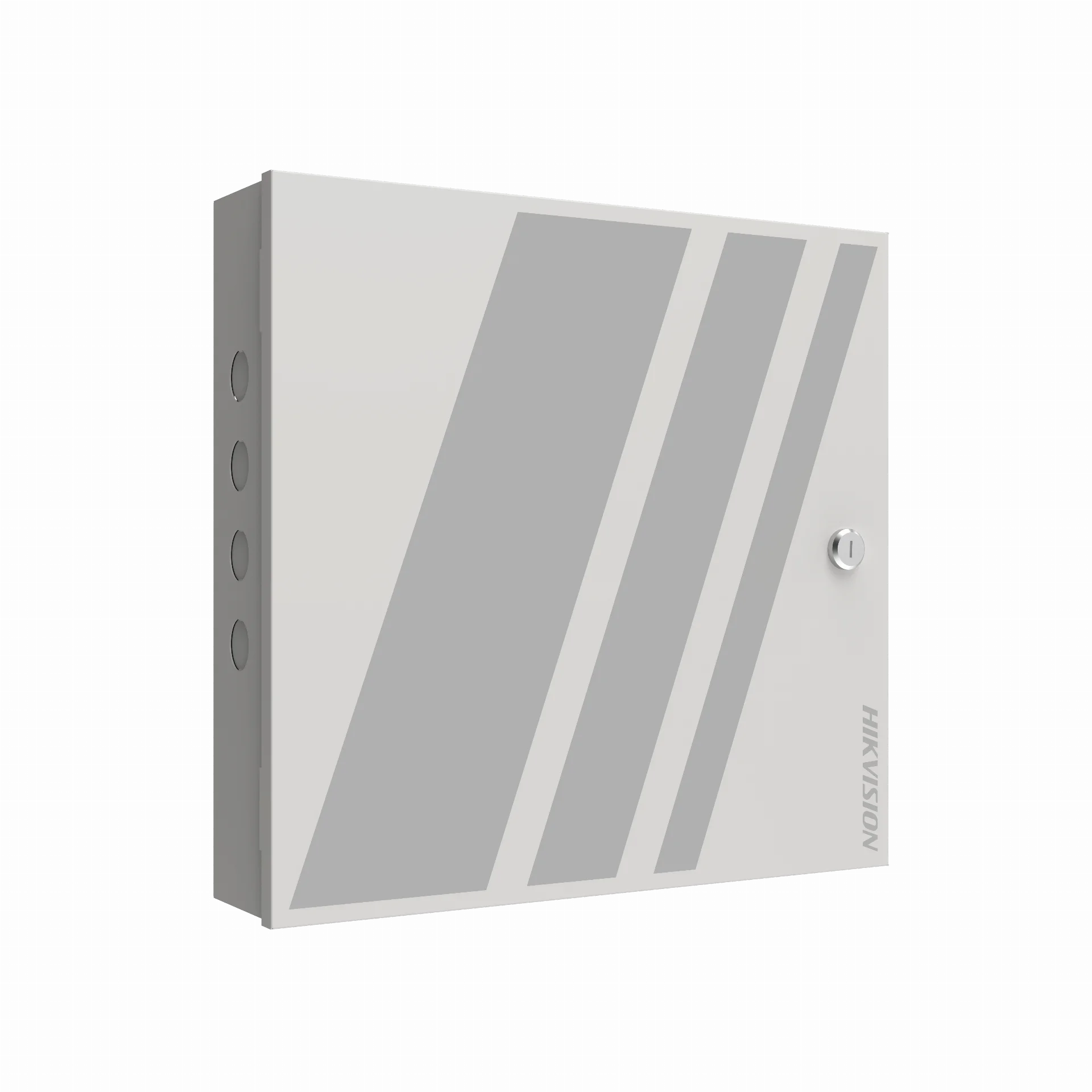

The Hikvision 4-Door Control Panel is a high-performance access controller designed for secure and scalable access management. Featuring support for up to four doors, it offers flexible connectivity with a 10/100/1000 Mbps self-adaptive Ethernet port, RS-485 interface, and USB 2.0. Ideal for enterprise-level installations, it ensures seamless integration with Hikvision systems and third-party platforms.
.webp)
# of #
| Feature | Specification |
|---|---|
| Operating System | Linux |
| Network Type | Wired, 10/100/1000 Mbps self-adaptive Ethernet |
| Network Interface | 1 |
| USB Port | 1 × USB 2.0 |
| RS-485 Ports | 7 total (2 for card readers, 5 for access modules; each module supports up to 16) |
| Wiegand Interfaces | 4 (Standard 26/34-bit, supports custom settings) |
| Fire Interface | 1 |
| Tamper Input | 1 |
| Lock Control Outputs | 4 |
| Exit Button Inputs | 4 |
| Door Contact Inputs | 4 |
| Alarm Inputs | 8 |
| Alarm Outputs | 4 |
| User Capacity | 100,000 users |
| Fingerprint Capacity | 10,000 fingerprints |
| Card Capacity | 200,000 cards |
| Event Capacity | 600,000 events |
| Linked Doors | Self: 4 doors<br>Extended: up to 128 doors (with 62 access modules) |
| Card Reader Capacity | 8 × RS-485 (OSDP protocol), 4 × Wiegand |
| Fingerprint Recognition Speed | < 1 second |
| Multi-Factor Authentication | Supported |
| Anti-Passback | Supported (up to 32 routes, 64 card readers each) |
| Multi-Door Interlocking | Supported (32 groups, 32 doors per group) |
| First Person In | Supported |
| Indicators | 12 total: Power, Run, Network, RS-485 (×5), Door Status (×4) |
| Installation | Wall Mounting |
| Configuration | Web Browser-Based |
| Power Supply | 100–240 VAC input |
| Power Consumption | ≤ 102 W |
| Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 0% to 90% (non-condensing) |
| Battery Support | Charge and Discharge Supported |
English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (EU & South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (EU & Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
