| GPU Model | NVIDIA GeForce GTX 1660 SUPER |
| Stream Processors | 1408 CUDA Cores |
| Boost Clock Speed | OC Mode: 1860 MHz Gaming Mode: 1830 MHz |
| Base Clock Speed | 1530 MHz |
| Interface | PCI Express 3.0 x16 |
| Supported APIs | DirectX: 12 OpenGL: 4.5 |
| Operating System Support | Windows |
Memory
| Memory Speed | 14 Gb/s |
| Memory Configuration | 6 GB |
| Memory Interface | GDDR6 |
| Memory Interface Width | 192-Bit |
Display Support

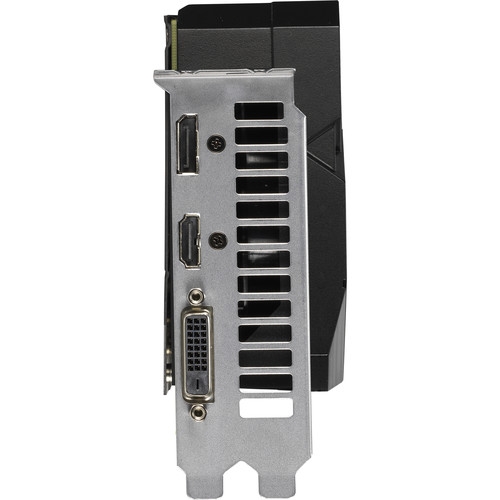

| Display I/O | 1 x DisplayPort 1.4 1 x HDMI 2.0b 1 x DVI-D |
| Maximum Digital Resolution | 7680 x 4320 @ 60 Hz |
Power Requirements
| PCI Power Connectors | 1 x 8-Pin |
| Recommended System Power Requirement | 450 W |
Dimensions
| Expansion Slot Compatibility | Full Height |
| Height | 5.12" / 130.00 mm |
| Length | 9.53" / 242.00 mm |
| Width | 2.5-Slot |
General
| Cooler Type | Open Fansink with Two Fans |
