ASUS motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Z790 GAMING WIFI7 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
# of #
| Model | Z790 GAMING WIFI7 |
| CPU Support | Intel® LGA1700 Socket for 14th/13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Chipset | Intel® Z790 |
| Memory | 4x DDR5 DIMM slots, up to 192GB, up to 7200MHz (OC); Dual Channel; Supports XMP and OptiMem II |
| Graphics | 1 x HDMI 2.1 port (4K@60Hz), graphics depend on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU), 3 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 (Chipset) |
| Storage | 3 x M.2 (PCIe 4.0 x4 & SATA), 4 x SATA 6Gb/s, RAID 0/1/5/10 support |
| Ethernet | Realtek 1Gb Ethernet |
| Wi-Fi & Bluetooth | Wi-Fi 7 (802.11be) 2x2, supports 2.4/5/6GHz, Bluetooth® v5.4 |
| USB (Rear) | 1 x USB 3.2 Gen 2x2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C®, 2 x USB 3.2 Gen 1 headers (4 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround HD Audio, 24-bit/192kHz, audio shielding, premium capacitors |

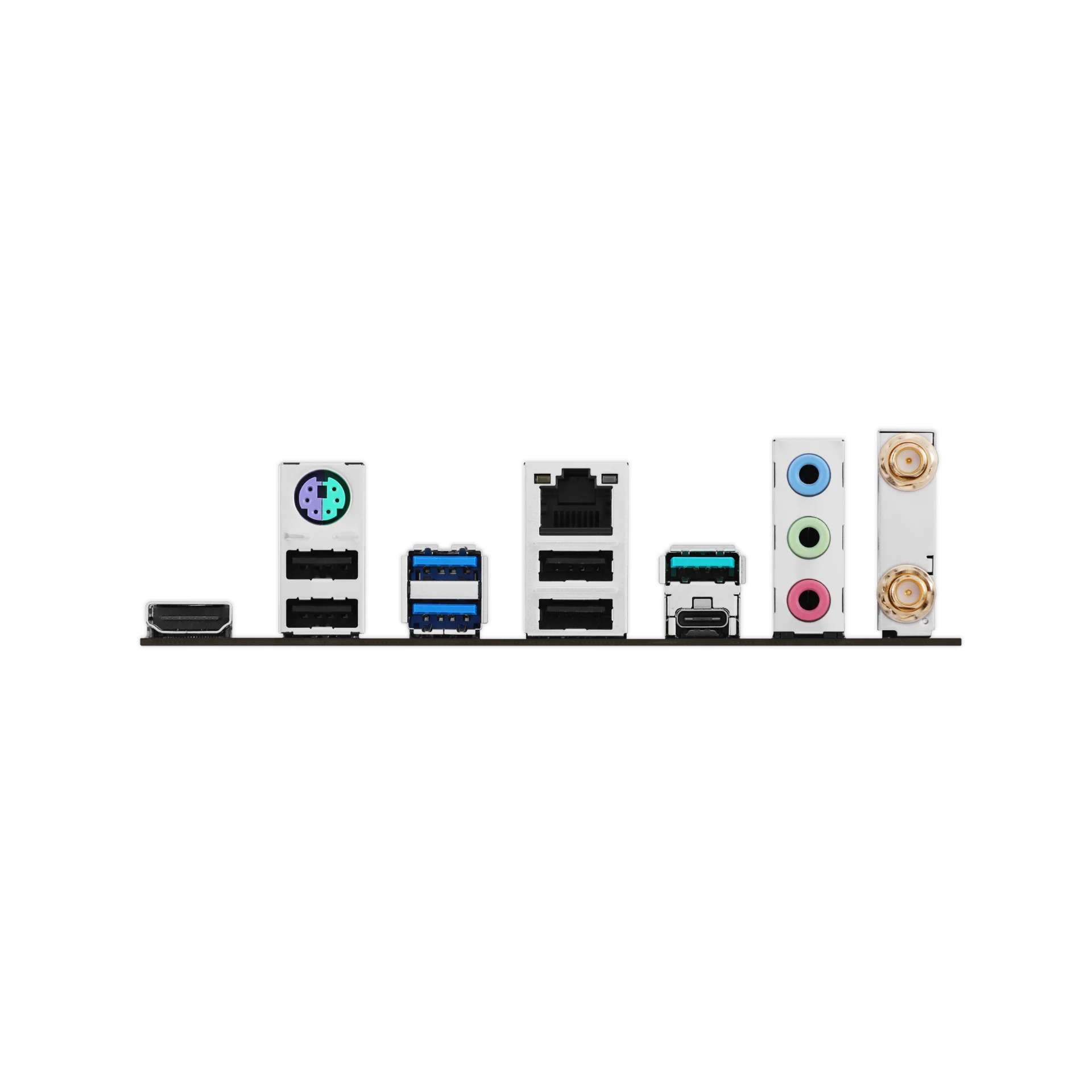

| Back I/O Ports | 1 x HDMI, 1 x USB-C 3.2 Gen 2x2, 3 x USB 3.2 (1 Gen 2 Type-A, 2 Gen 1), 4 x USB 2.0, 1 x PS/2 combo, 1 x RJ45 LAN, 3 x audio jacks, Wi-Fi antenna connectors |
| Internal Headers | 3 x Addressable Gen 2 RGB, 1 x Aura RGB, 1 x Clear CMOS, 1 x COM, Front Panel Audio, S/PDIF Out, TPM, System Panel, Thunderbolt™ (USB4®), Fan, Power & USB headers |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 3 x Chassis Fan |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V |
| Special Features | 5X PROTECTION III, Q-Design (Q-DIMM, Q-LED, Q-Slot), VRM Heatsinks, Armoury Crate, Aura Sync |
| Bundled Software | Armoury Crate, AI Suite 3, ASUS CPU-Z, MyASUS, Norton 360 (60-day trial), WinRAR |
| BIOS | 192 Mb UEFI AMI BIOS, EZ Mode, CrashFree BIOS 3, EZ Flash 3 |
| Manageability | WOL by PME, PXE |

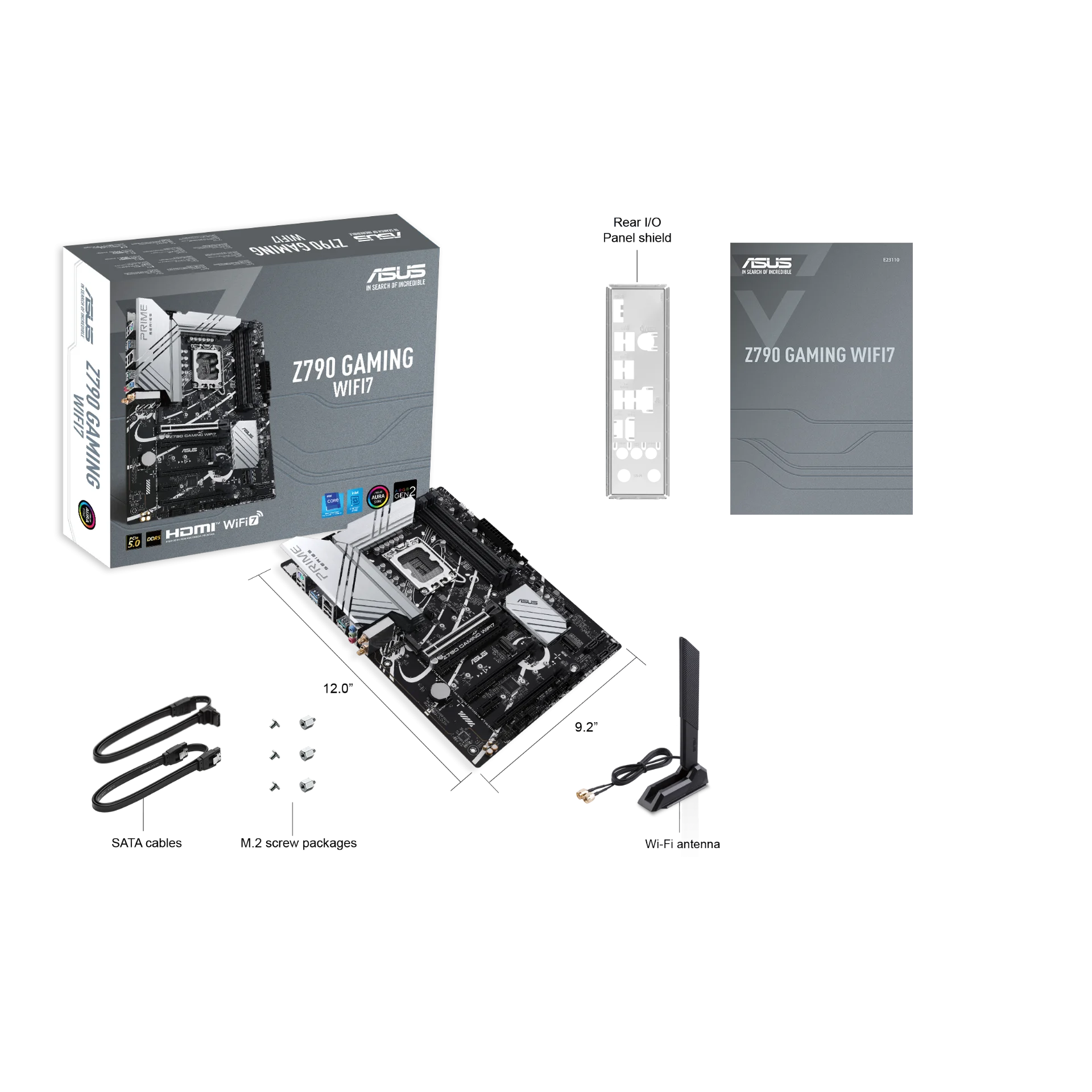

| Accessories Included | 2 x SATA cables, 1 x Wi-Fi antenna, 1 x I/O Shield, 2 x M.2 screws, 1 x User Guide |
| Operating System | Windows® 11 64-bit |
| Form Factor | ATX (30.5cm x 23.4cm / 12" x 9.2") |
