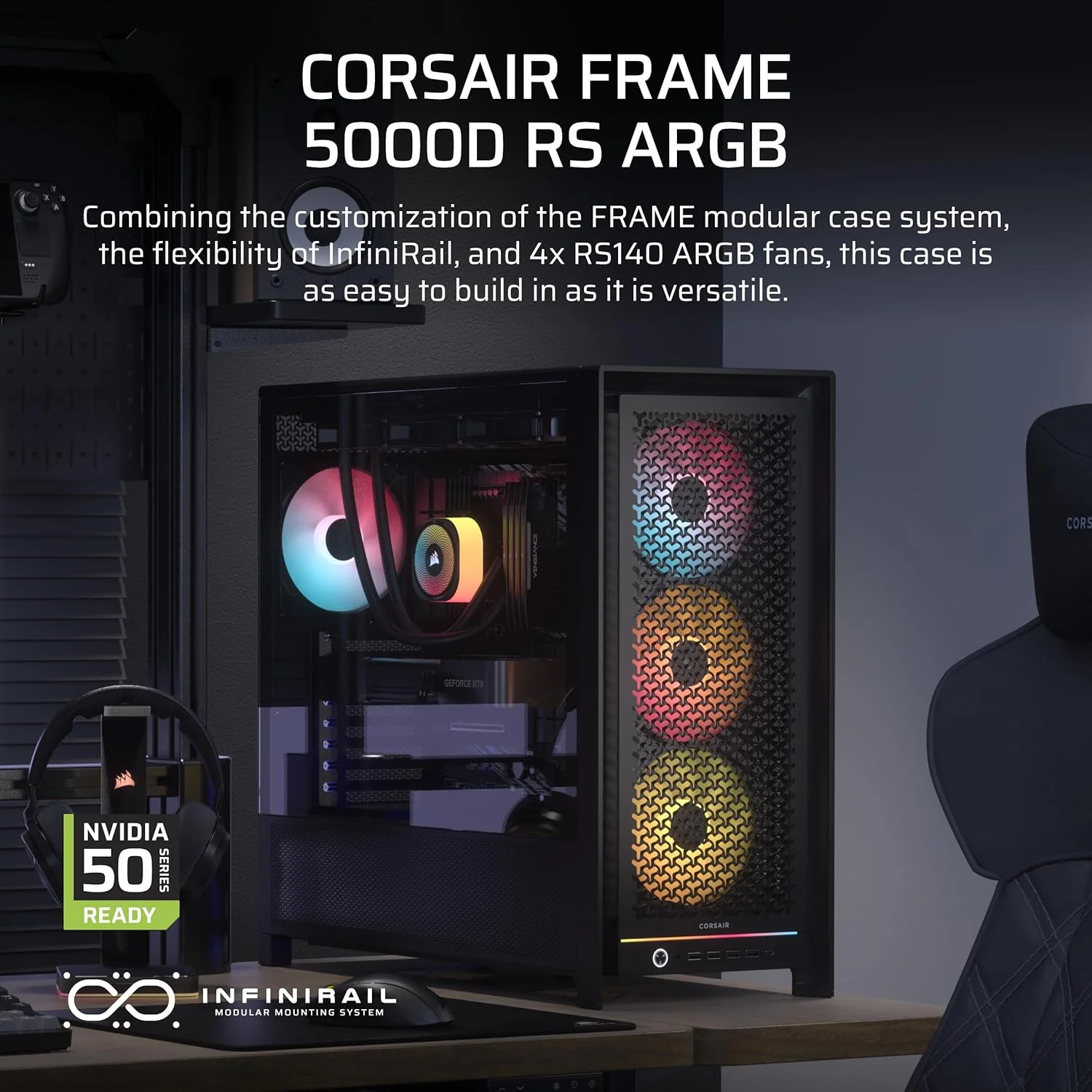

CORSAIR FRAME 5000D RS ARGB BLACK - CC-9011309-WW

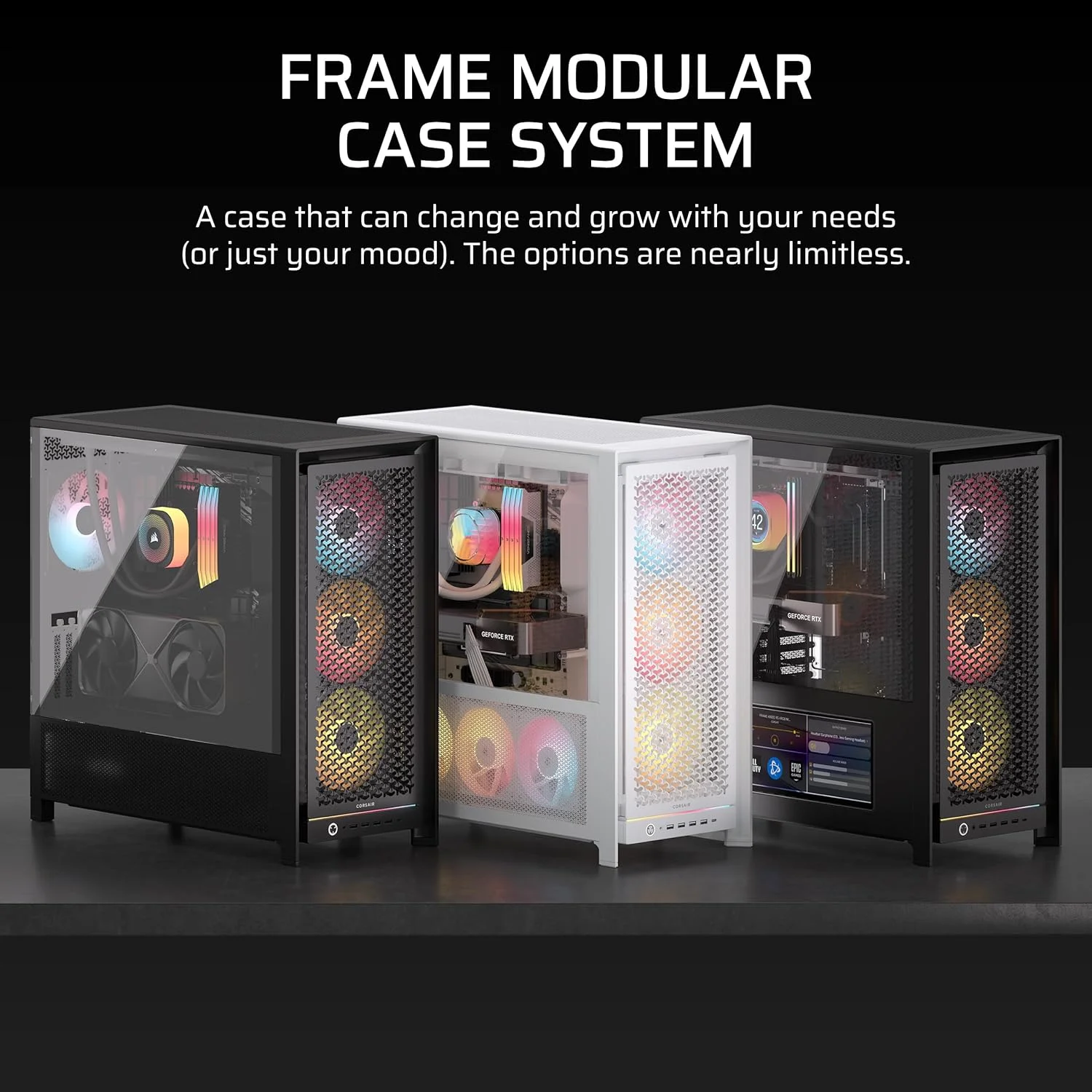

Build without limits using the CORSAIR FRAME 5000D RS ARGB — a next-generation mid-tower PC case engineered for high-performance systems, extreme cooling, and unmatched customization. Designed around CORSAIR’s innovative FRAME modular system, this chassis gives you the freedom to configure, upgrade, and evolve your build like never before.

# of #

Out of stock

Sold and Shipped By:

Availability

Head Office and Technical Facility 0
Barrie Store 0
Orillia Store 0
Midland Store 0

Quick Specs

General

  • Case Type: Mid-Tower
  • Color: Black

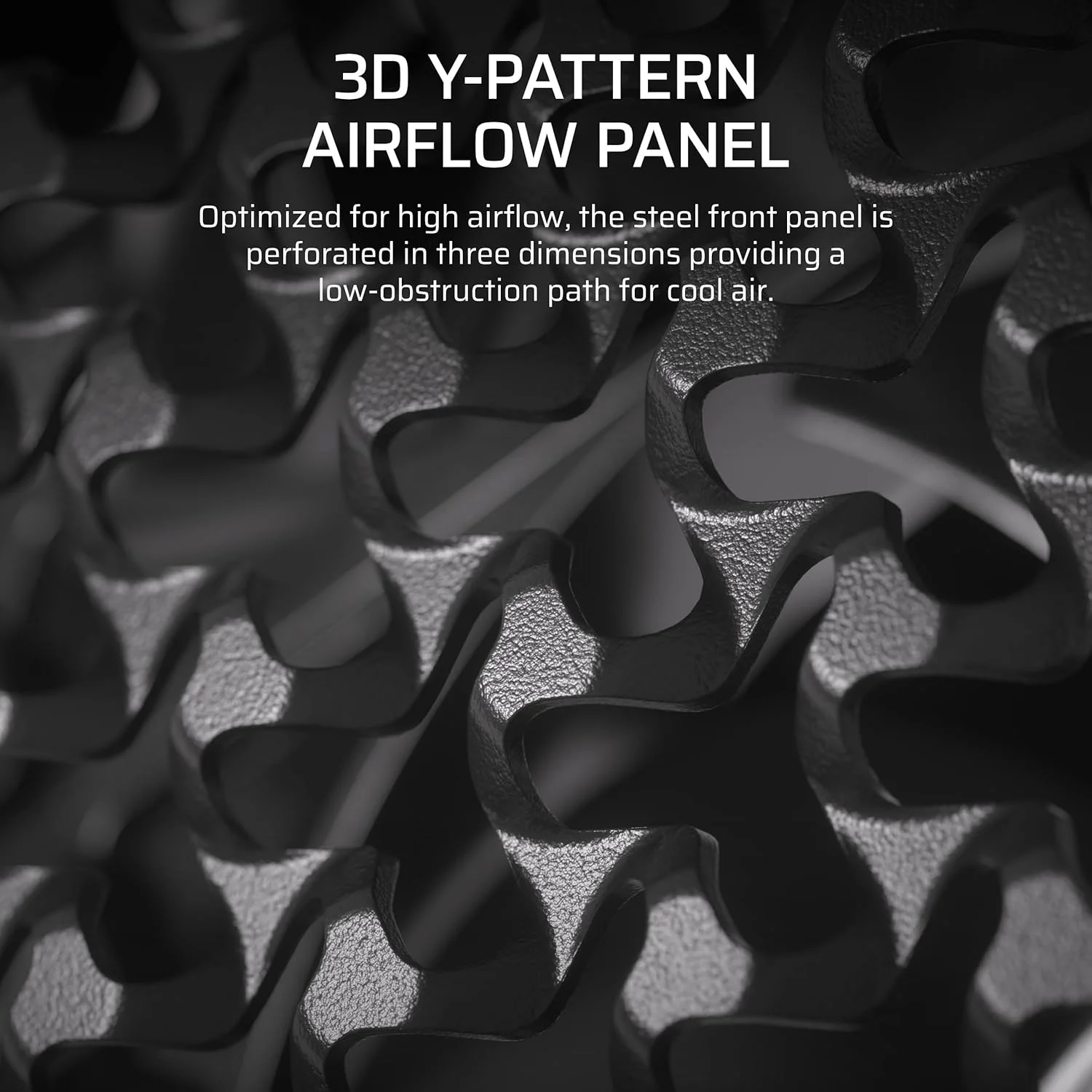

  • Materials: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
  • Side Panel (Left): Tempered Glass
  • Side Panel (Right): Steel
  • Case Window: Tempered Glass
  • Weight: 15.48 kg

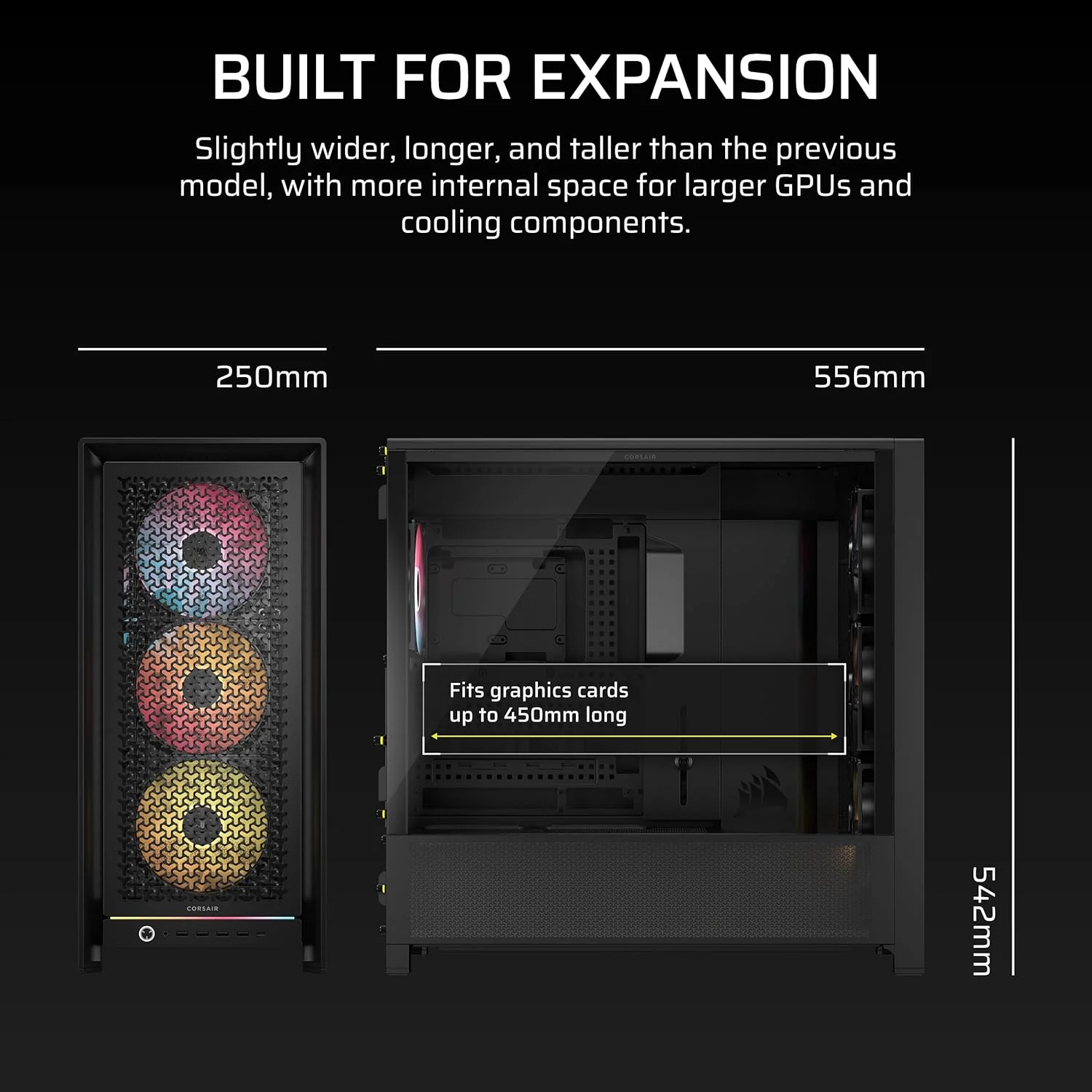

Dimensions

  • Height: 542 mm
  • Length (Depth): 556 mm
  • Width: 250 mm

Motherboard Compatibility

  • Supported Form Factors:
    Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)

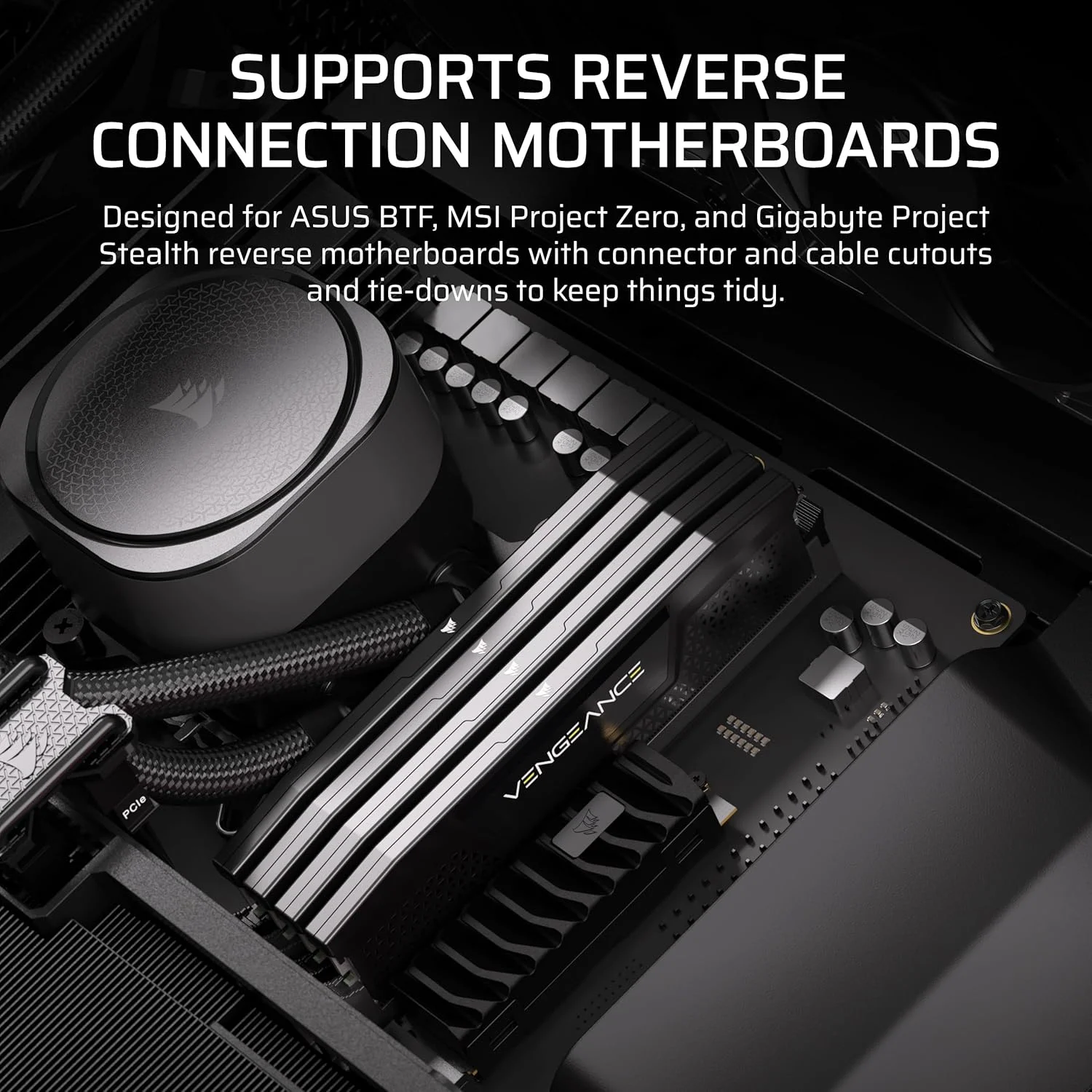

  • Reverse Connector Motherboard Support: Yes

Drive Bays

  • 3.5" Bays: 2
  • 2.5" Bays: 6

Expansion & Clearance

  • Expansion Slots: 8 Horizontal + 3 Vertical
  • Maximum GPU Length: 450 mm
  • Maximum CPU Cooler Height: 175 mm
  • Power Supply Support: ATX
  • Vertical GPU Mounting: Supported (Riser Card Sold Separately)

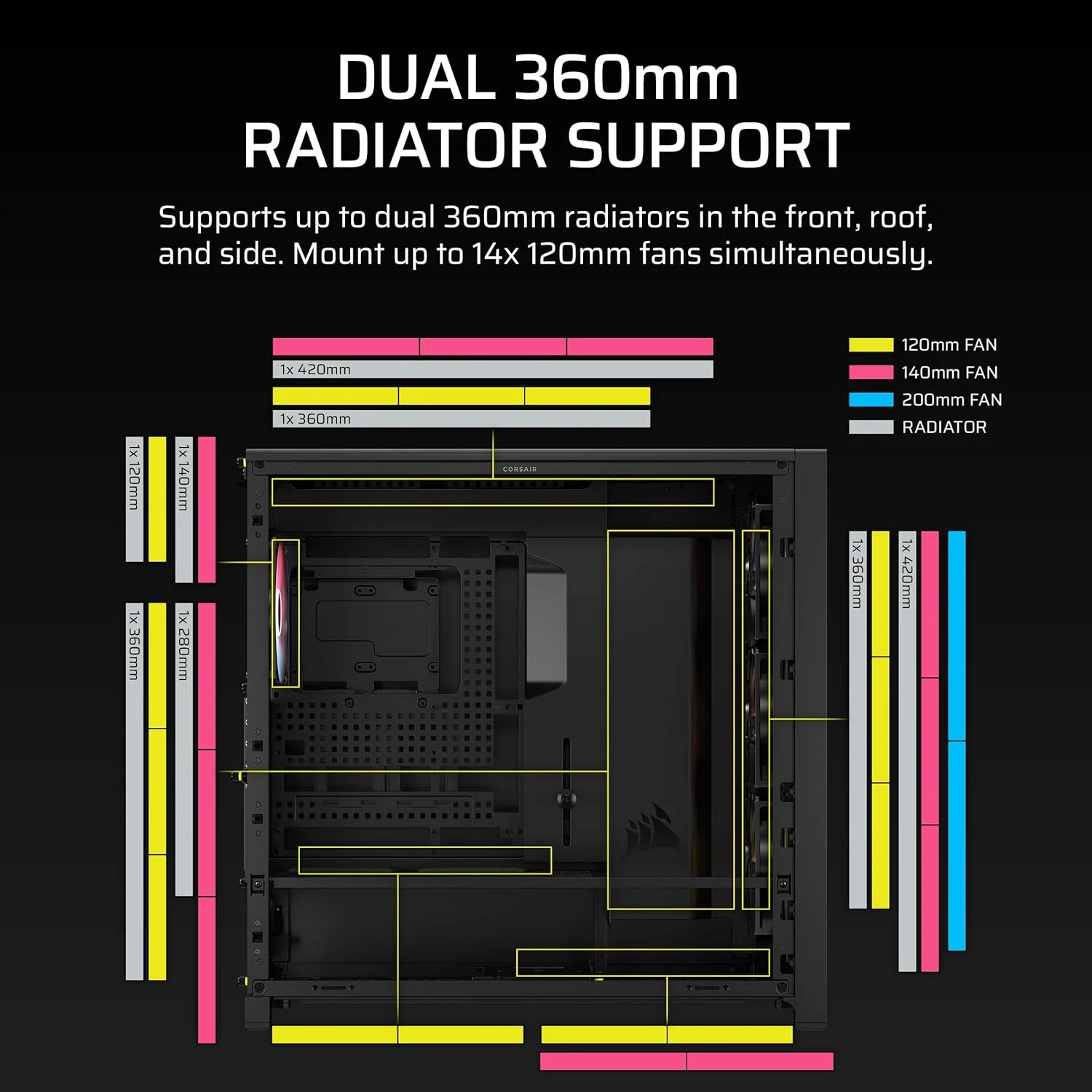

Cooling Support

Radiator Compatibility

  • Top: 420mm / 360mm / 280mm / 240mm
  • Front: 420mm / 360mm / 280mm / 240mm
  • Side: 420mm / 360mm / 280mm / 240mm
  • Rear: 140mm / 120mm
  • Bottom: None

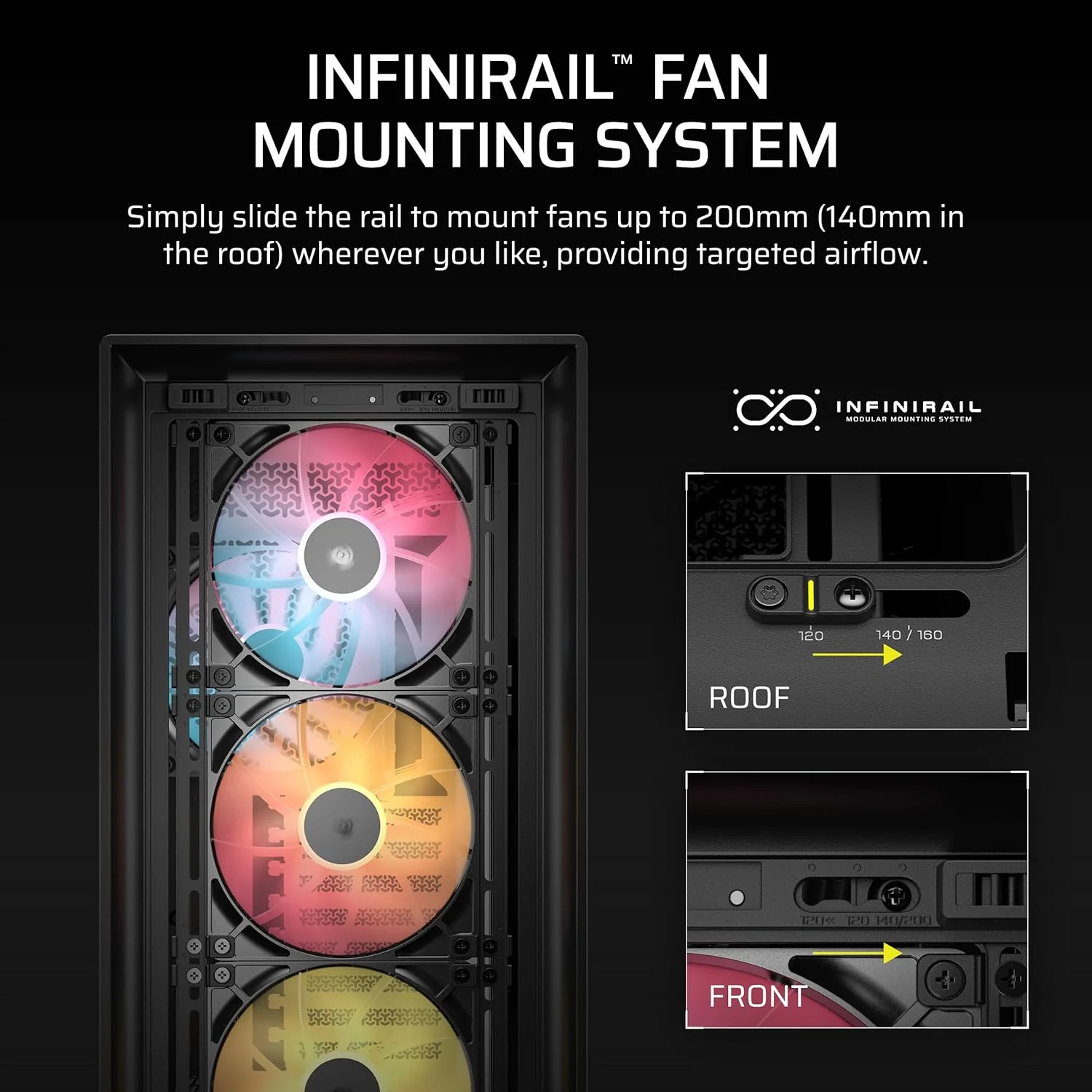

Fan Support

  • Top: 3×120mm or 3×140mm
  • Front: 3×120mm or 3×140mm or 2×200mm
  • Bottom: 4×120mm
  • Side: 3×120mm or 3×140mm
  • Rear: 1×120mm or 1×140mm
  • Included Fans: RS ARGB Series

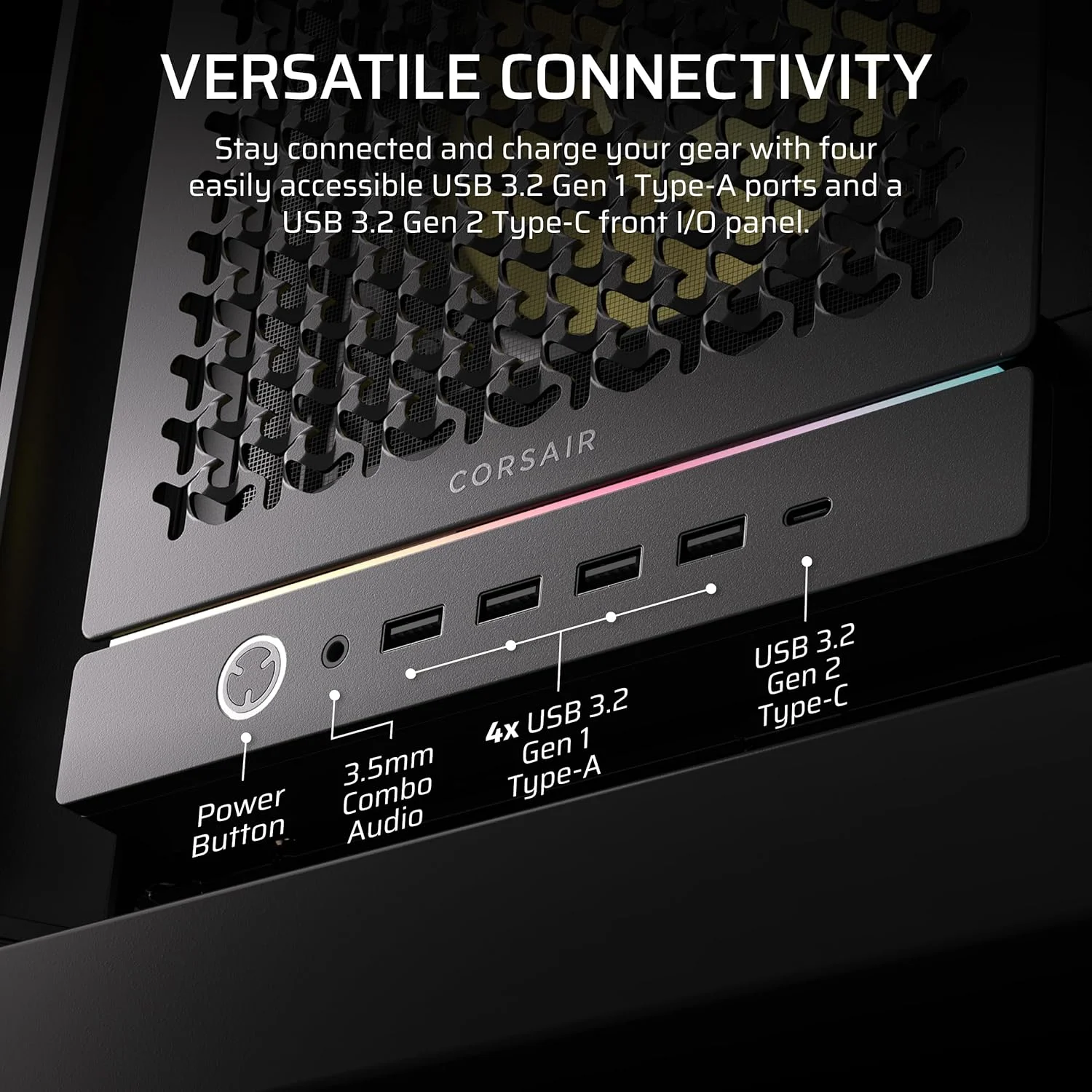

Front I/O Ports

  • 1 × USB 3.2 Gen 2 Type-C
  • 4 × USB 3.2 Gen 1 Type-A
  • 1 × Audio In/Out

Internal Motherboard Connections

  • 1 × HD Audio
  • 1 × USB 3.2 Gen 1 Header
  • 1 × USB 3.2 Gen 2 Type-E Header
  • 1 × Front Panel (F_PANEL)
  • 1 × 5V ARGB Header

Features

  • Dust Filtration: Yes
  • Cable Routing Space: 42 mm
  • RapidRoute Cable Management: Included
