HDMI IP Extender 150m
Device Parameters
Standards: HDMI 1.3; HDCP 1.2
Compressed Format: H.264
Resolution Max: 1920X1080p@60Hz
HDMI Cable: HDMI-A, HDMI cable <5m

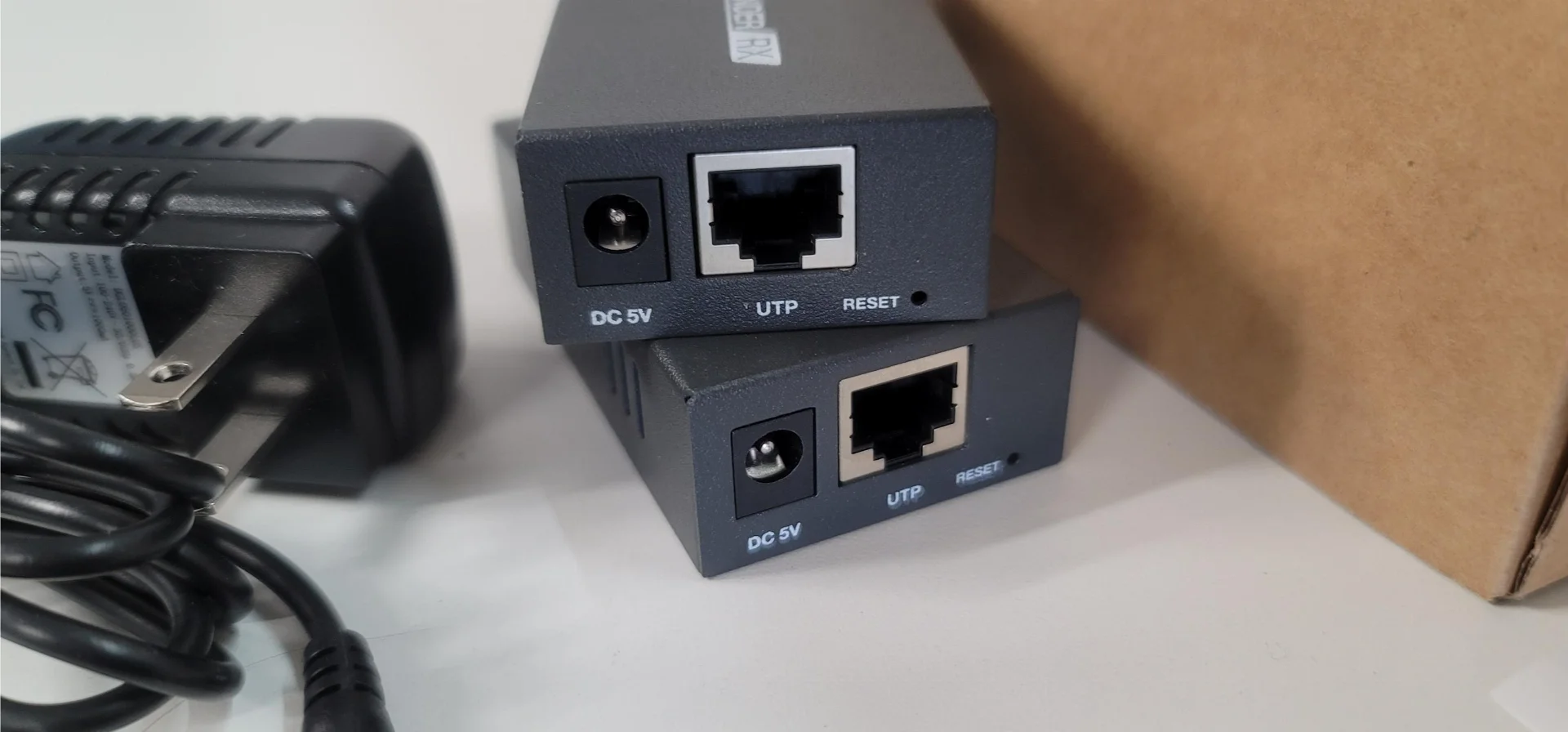

Ethernet Interface: RJ45, T568B (white orange, orange, white green, blue, white blue, green, white brown, brown)

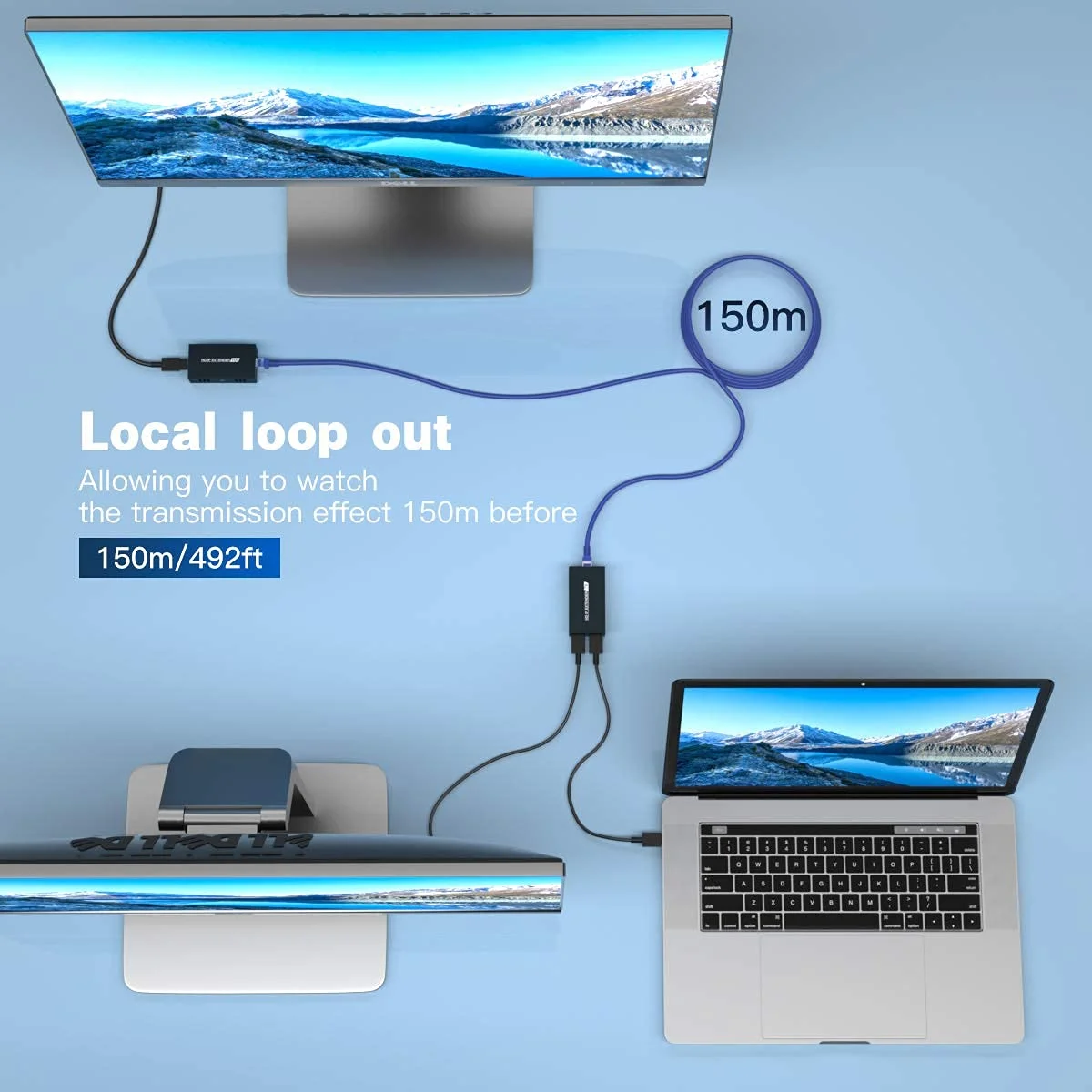

Distance: CAT5E/6---150M
Compatible Equipment: Signal source and monitor with HDMI interface. Or other interfaces such as VGA to HDMI adapter.
Power supply - power adapter: DC 5V/1A
Power dissipation: MAX: 2.5W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%
Dimension: 81*45*23mm
Note:
1. When powering on, it takes about 10 seconds for the HDMI port on the receiver side to display the image, which is normal operation.
2. Connect your device to see if the signal is stable before connecting the HDMI extender.
3. To ensure your signal transmission is stable, please use a high-quality cable for connection.
