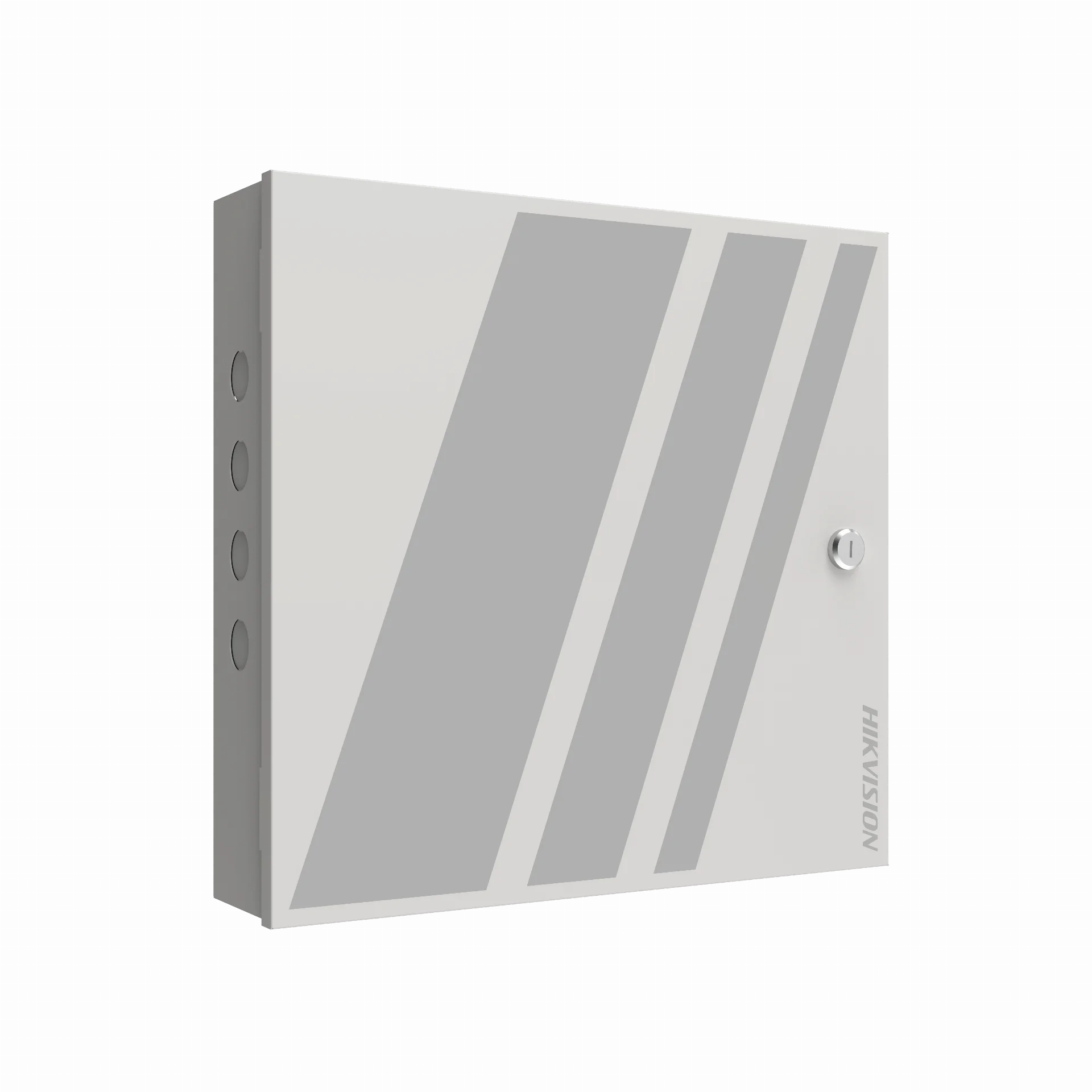

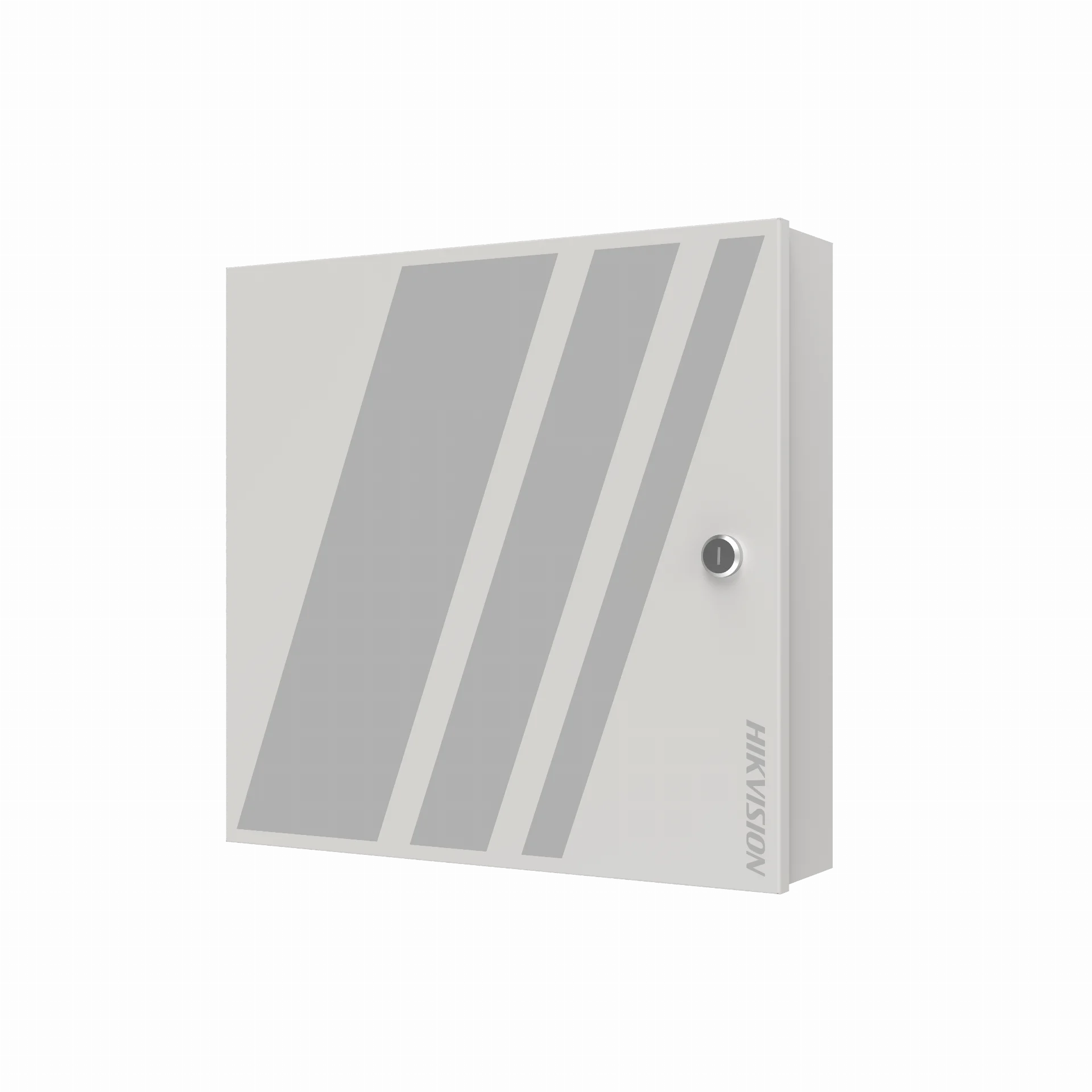

HIKVISION 2-DR CONTROL PANEL, 1, 10/100/1000 Mbps self-adaptive, Support, 2.4 G, 802.11b/g/n DS-K2702WX-E1

The HIKVISION 2-Door Control Panel is a reliable and high-performance access control solution designed for secure, scalable deployments. Featuring a 1× 10/100/1000 Mbps self-adaptive Ethernet port and built-in 2.4 GHz Wi-Fi (802.11b/g/n), it offers flexible network connectivity for any environment.

$899.95

Sold and Shipped By:

Availability

Head Office and Technical Facility 0

Barrie Store 1

Orillia Store 0

Midland Store 0

Quick Specs

Access Control System – 2-Door Controller with Fingerprint, Card, Wi-Fi & PoE Support

System & Network

Feature	Specification
Operating System	Linux
Wired Network	1 × 10/100/1000 Mbps self-adaptive Ethernet
Wi-Fi	Supported, 2.4 GHz, IEEE 802.11b/g/n
PoE Support	Yes (Standard PoE)

Interface & Connectivity

Network Interface	1 × Ethernet port
Lock Control	2 channels
Exit Button Input	2 channels
Door Contact Input	2 channels
Alarm Input	4 channels
Alarm Output	4 channels
Tamper Input	1
RS-485	7 ports (2 for readers, 5 for access modules)
Wiegand Interface	4 (Standard 26/34 bit input, custom supported)
USB	1 × USB 2.0 port
Fire Interface	1

System Capacity

User Capacity	100,000 users
Fingerprint Capacity	10,000
Card Capacity	200,000
Event Log Capacity	600,000
Linked Door Capacity	Self: 2 doors Extended: up to 126 doors (via 62 modules)
Linked Reader Capacity	4 RS-485 (OSDP) + 4 Wiegand readers

Authentication & Security

Authentication Methods	Fingerprint, Card, Multi-Factor
Fingerprint Recognition	< 1 second
Multi-factor Authentication	Supported
First Person In	Supported
Anti-passback	Supported (32 routes, 64 readers each)
Multi-door Interlocking	Up to 32 groups (32 doors each)

General Features

Indicators	11 total:<br>Power, System Status, Wired & Wi-Fi, RS-485 (5), Door (2)
Web Configuration	Supported
Installation Method	Wall-mount
Languages Supported	English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (EU & SA), Italian, French, Dutch, Russian, Ukrainian, Portuguese (EU & Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian

Power & Environment

Power Supply	100–240 VAC input, supports PoE
Power Consumption	≤ 72 W
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Humidity	0% to 90% RH (non-condensing)
