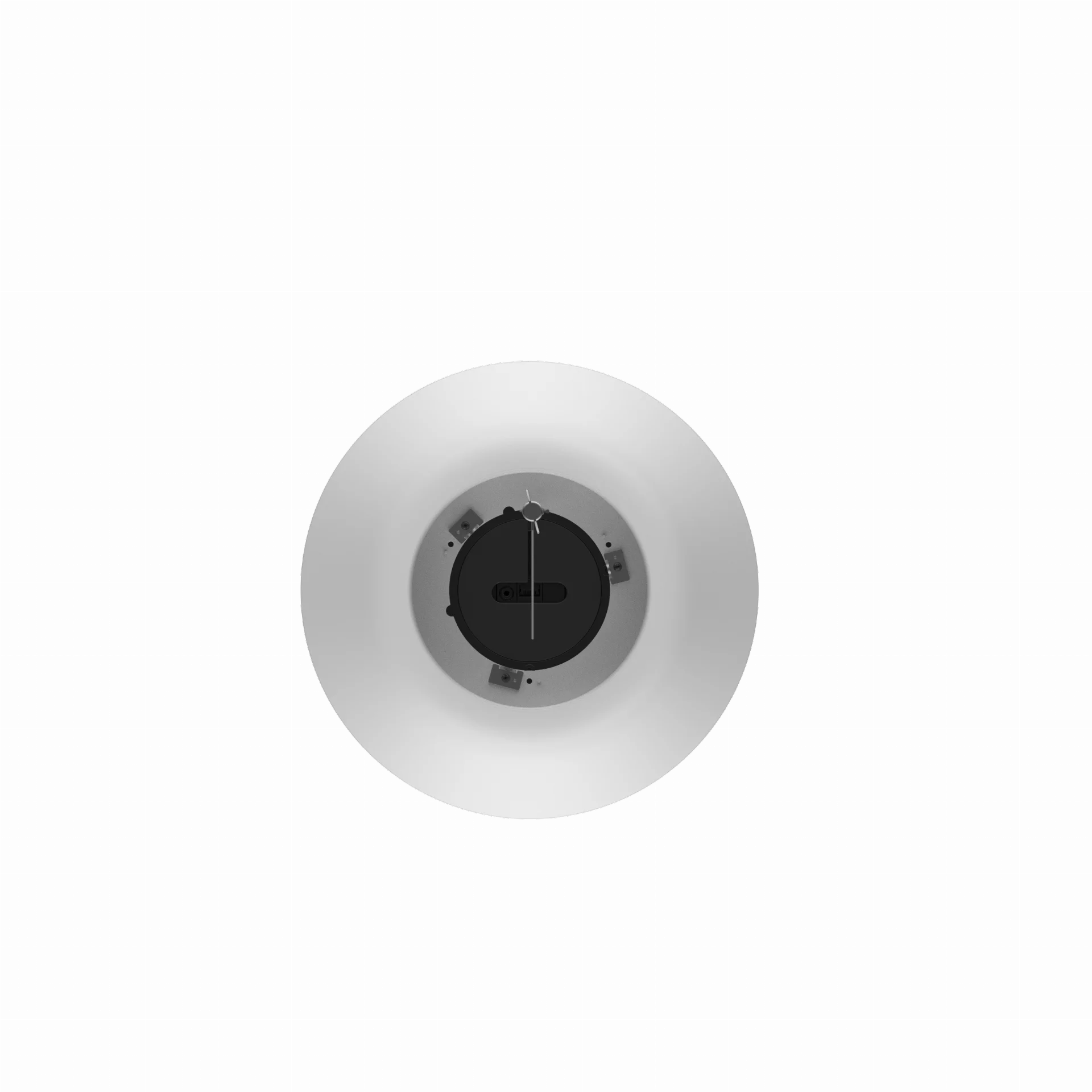

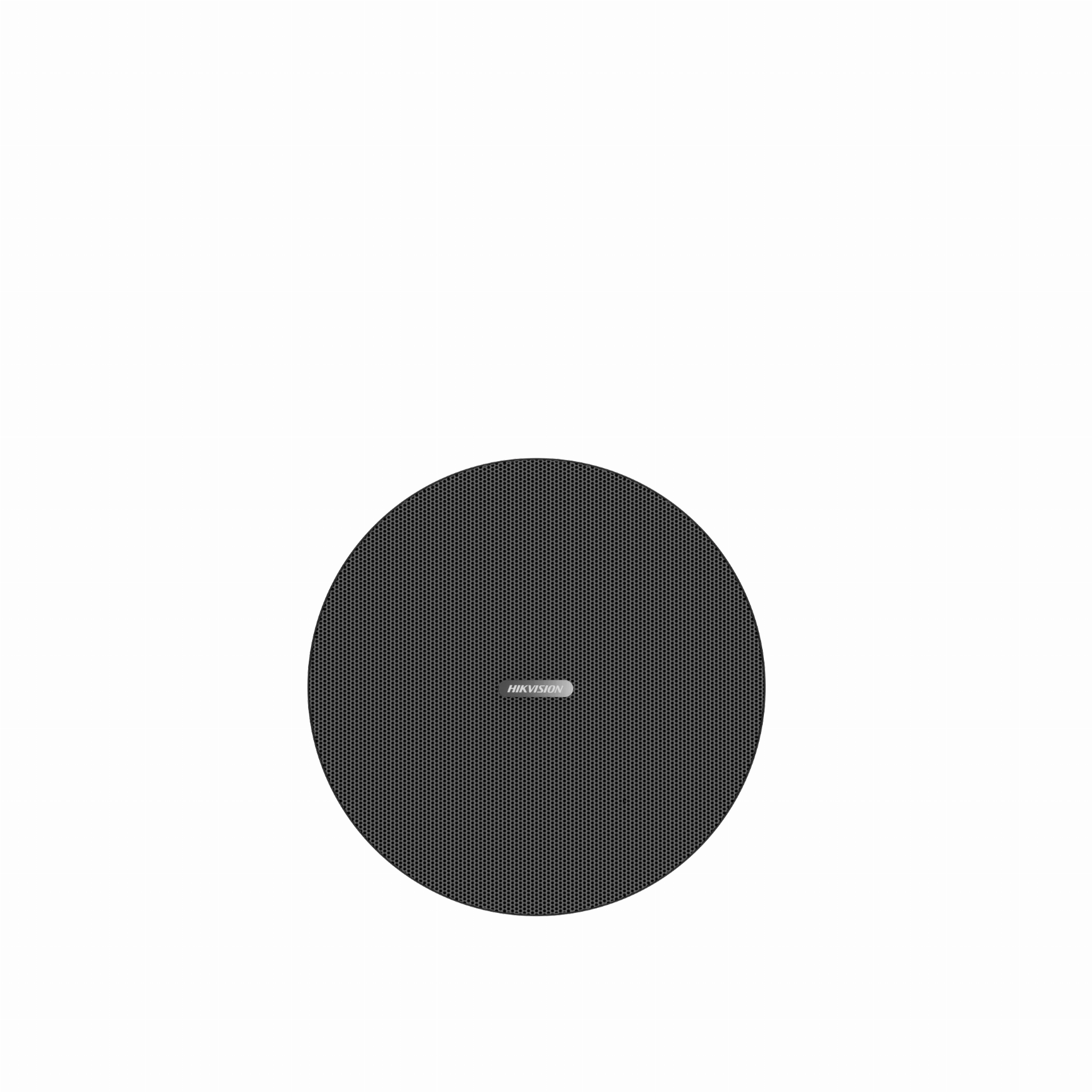

HIKVISION ANALOG PENDANT SPEAKER 30W DS-QAZ0530G1

The Hikvision Analog Pendant Speaker 30W is a high-performance ceiling-hanging speaker designed for clear, powerful audio in large open spaces such as retail stores, warehouses, and public areas. With a 30W output, 8Ω impedance, and wide frequency response (80Hz–20kHz), it delivers rich sound with minimal distortion.

# of #

Out of stock

Sold and Shipped By:

Availability

Head Office and Technical Facility 0
Barrie Store 0
Orillia Store 0
Midland Store 0

Quick Specs

Specifications

Speaker Performance

  • Impedance: 8 Ω

  • Rated Power: 30 W

  • Total Harmonic Distortion (THD): ≤ 1%

  • Sensitivity (1 m, 1 W): 92 dB

  • Maximum Acoustic Pressure: 104 dB

  • Frequency Response: 80 Hz ~ 20 kHz (-10 dB)

  • Speaker Unit: 1 × 6.5" woofer + 1 × 1.0" tweeter

  • Coverage Angle: 90° conical

Input & Interface

  • Input Type:

    • Constant Voltage: 100V / 70V

    • Constant Impedance: 8 Ω

  • Voltage Input Levels:

    • 100V: 30W, 15W, 7.5W

    • 70V: 30W, 15W, 7.5W, 3.25W

    • 8Ω: Full Power

Physical Characteristics

  • Material:

    • Main Body: PC

    • Base: ABS

  • Dimensions: Ø286.74 × 246.17 mm (11.29" × 9.69")

  • Weight: Approx. 2.7 kg (5.95 lb.)

Packaging

  • Package Dimensions: 350 × 350 × 343 mm (13.78" × 13.78" × 13.5")

  • Package Weight: Approx. 2.9 kg (6.49 lb.)

  • Packing List:

    • Device × 1

    • Regulatory Compliance & Safety Info × 1

Environmental

  • Operating Temperature: -10 °C to 45 °C (14 °F to 113 °F)

  • Operating Humidity: < 90% (non-condensing)
