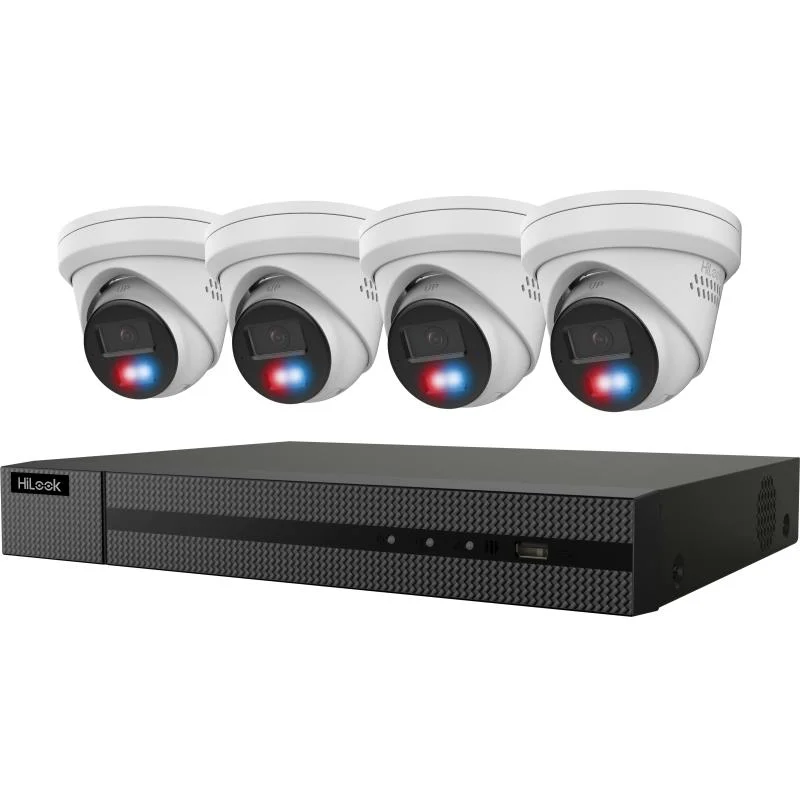

The Hikvision Hilook IK-4248TH-MH/PL is a comprehensive 4-channel 4K IP surveillance kit designed to deliver intelligent deterrence and advanced security features for residential, commercial, and retail applications. This all-in-one system includes one 4K Hilook NVR and four 4K turret IP cameras equipped with red and blue strobe lights, audible warnings, and two-way audio to proactively deter intruders.
.webp)
# of #
Model Type: Turret IP Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Min. Illumination:
Color: 0.01 Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Day/Night: IR Cut Filter
IR Range: Up to 30 m
Lens:
Focal Length: 2.8 mm
Aperture: F2.0
Focus: Fixed
Field of View:
Horizontal: 113°
Vertical: 62°
Diagonal: 134°
Lens Mount: M12
Angle Adjustment:
Pan: 0°–360°
Tilt: 0°–75°
Rotation: 0°–360°
Video Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
H.264 Profiles: Baseline/Main/High
H.265 Profile: Main
Video Bitrate: 32 Kbps to 16 Mbps
Max Resolution: 3840 × 2160 (4K)
Frame Rates:
Main Stream:
50 Hz: 12.5 fps @ all supported resolutions
60 Hz: 15 fps @ all supported resolutions
Sub-Stream:
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Image Settings: Day/Night Mode, Auto, Manual, Schedule
Alarm Triggers: Motion Detection, Video Tampering, Illegal Login
Network Protocols:
TCP/IP, DHCP, HTTP, HTTPS, RTP, RTSP, UDP, FTP, NTP, SMTP, SNMP, IPv4/IPv6, IGMP, QoS, ICMP
Integration:
Client: iVMS-4200, HiLookVision
Interface: 1 × RJ45 (10/100 Mbps)
Onboard Storage: Not Supported
Reset Button: Not Available
Build & Environment:
Housing Material: Metal (body), Plastic (base)
Ingress Protection: IP67
Operating Temp: -30°C to +60°C (-22°F to 140°F)
Humidity: ≤ 95% (non-condensing)
Power Supply:
12 VDC ±25% (Max 3.5 W)
PoE (802.3af, class 3) (Max 4.5 W)
Dimensions: Ø110 × 93.2 mm (4.3" × 3.7")
Weight: Approx. 360 g (0.8 lb)
Model: HIKVISION DS-7604NI-K1/4P or Equivalent
Video Input: 4 IP Channels
Max Bandwidth:
Incoming: 40 Mbps
Outgoing: 80 Mbps
Video Output:
HDMI: 1-ch, up to 4K (3840 × 2160) @ 30 Hz
VGA: 1-ch, up to 1080p @ 60 Hz
HDMI/VGA Simultaneous Output Supported
Audio Support:
1-ch Audio Output (RCA)
1-ch Two-Way Audio (RCA)
Decoding Capability:
Up to 1-ch @ 8 MP (30 fps)
Up to 3-ch @ 4 MP (30 fps)
Up to 6-ch @ 1080p (30 fps)
Synchronous Playback: 4 Channels
Video Compression: H.265+/H.265/H.264+/H.264
Supported Resolutions:
8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Network:
Interface: 1 × RJ45 (10/100 Mbps)
Protocols: TCP/IP, DHCP, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, HTTP, HTTPS, UPnP™, SADP
Remote Connections: Up to 32
PoE Interface:
4-ch RJ45 Ports (10/100 Mbps)
IEEE 802.3af/at Compliant
Power Budget: ≤ 50 W
Storage:
1 × SATA Interface
Up to 8 TB per HDD
USB Ports: 2 × USB 2.0
Alarm I/O: Not Supported
Power & Environment:
Power Supply: 48 VDC, 1.35 A
Power Consumption (NVR only): ≤ 10 W
Operating Temp: -10°C to +55°C (14°F to 131°F)
Humidity: 10% to 90%
Dimensions: 265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
Weight: ≤ 1 kg (2.2 lb, without HDD)
