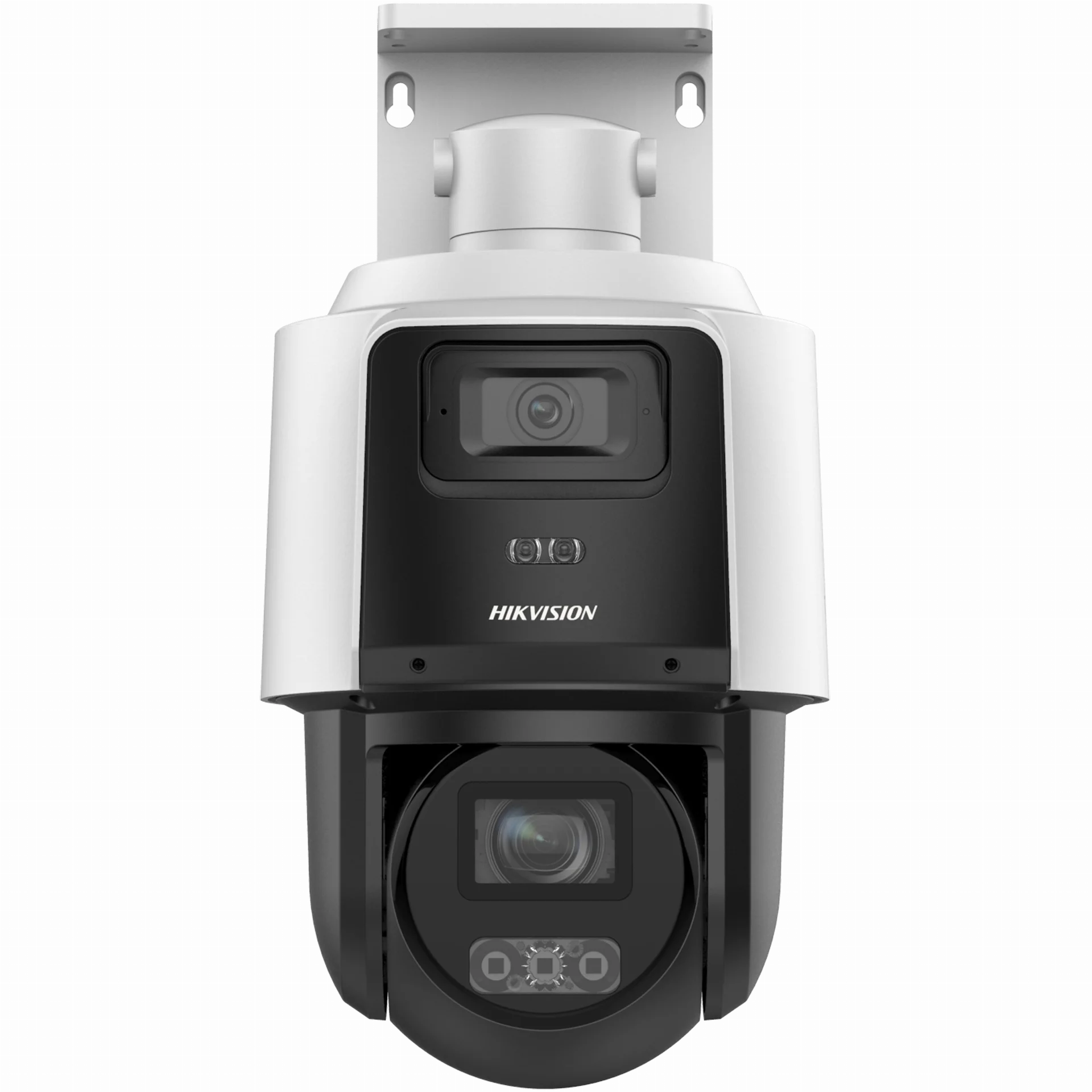

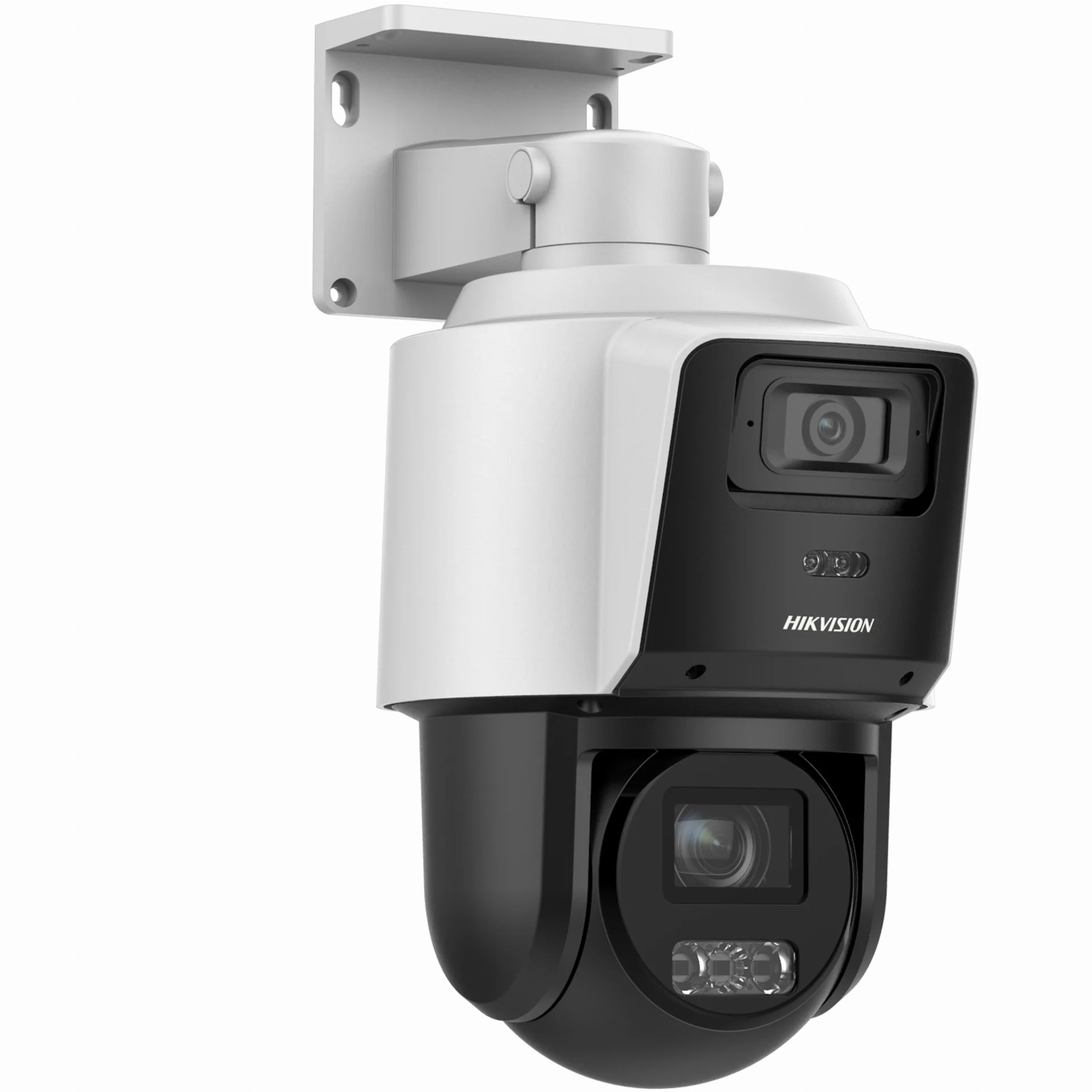

The HIKVISION TandemVu 4MP + 4MP 4X PoE PTZ Camera combines dual-lens technology with advanced PTZ functionality, delivering comprehensive coverage and high-definition imaging in one unit. With two integrated 4MP lenses—one fixed and one PTZ—this camera provides both broad situational awareness and detailed close-up views simultaneously.
_image_1.webp)
_image_2.webp)
_image_3.webp)
# of #
| Category | Details |
|---|---|
| Image Sensor | Bullet: 1/2.8" Progressive Scan CMOS PTZ: 1/2.8" Progressive Scan CMOS |
| Minimum Illumination | Bullet: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux with IR PTZ: 0.01 Lux (Color), 0.005 Lux (B/W), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | ICR |
| Zoom | PTZ: 4× Optical, 16× Digital |
| Max. Resolution | Bullet & PTZ: 2560 × 1440 |
| Bullet | 2.8 mm, F1.6 |
|---|---|
| PTZ | 2.8 – 12 mm, F1.5–F2.9, Autofocus |
| Zoom Speed | ~3.3 s (PTZ) |
|---|---|
| Field of View (FOV) | Bullet: H 114.9°, V 62.4°, D 130.7° PTZ: H 98°–34.2°, V 52°–19.2°, D 111°–39° |
| Light Type | Bullet: Hybrid (IR & White Light)<br>PTZ: IR |
|---|---|
| Range | Bullet: IR 30 m, White Light 30 m PTZ: IR 40 m |
| Smart Supplement Light | Yes |
| Pan Range | 0° to 350° |
|---|---|
| Tilt Range | Bullet: 7°–17° (manual), PTZ: -5° to 90° |
| Pan/Tilt Speed | Configurable 0.1°–30°/s, Preset: 30°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, 32 presets each |
| Park Action | Preset, patrol scan |
| 3D Positioning / Status Display / Preset Freezing | Yes |
| Scheduled Tasks | Dome reboot, preset, patrol scan, etc. |
| Main Stream | Up to 30 fps @ 2560×1440 |
|---|---|
| Sub/Third Stream | Up to 30 fps @ 1280×720/640×480/360 |
| Video Compression | H.265, H.264, MJPEG |
| Bitrate | 32 kbps to 16,384 kbps |
| SVC / ROI | Supported / 1 fixed region |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
|---|---|
| Bit Rates | Up to 160 kbps |
| Sampling Rates | MP2L2: 16 kHz, AAC: 16 kHz, PCM: 8/16 kHz |
| Built-in Mic & Speaker | Yes |
| Noise Filtering | Yes |
| Interfaces | RJ45, 10M/100M adaptive |
|---|---|
| Storage | MicroSD/SDHC/SDXC (up to 512 GB) |
| Protocols | ONVIF, ISAPI, TCP/IP, HTTPS, NTP, etc. |
| Simultaneous Live View | 20 |
| Users | 32 |
| Security | 802.1X, IP filtering, HTTPS encryption, etc. |
| WDR / SNR / Defog | 120 dB / ≥52 dB / Digital Defog |
|---|---|
| Image Settings | Brightness, Contrast, Saturation, etc. |
| Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 polygon masks per channel |
| Regional Exposure/Focus | PTZ Only |
| Image Parameter Switch | Yes |
| Basic Events | Motion detection, tamper, input/output alarms |
|---|---|
| Smart Events | Line crossing, intrusion, region entry/exit, audio exception |
| Event Linkage | Upload to FTP/NAS, notify center, email alerts, PTZ actions |
| Power Supply | 12 VDC / PoE+ (Max. 13.5 W) |
|---|---|
| Operating Conditions | -30 °C to 50 °C, ≤95% RH (non-condensing) |
| Demisting | Heated glass |
| Material | PC |
| Dimensions | 311.5 × 223.5 × 156 mm (12.26" × 8.80" × 6.14") |
| Weight | Approx. 1.37 kg (3.02 lb) |
| Protection | IP66, Surge & Voltage Transient Protection |
