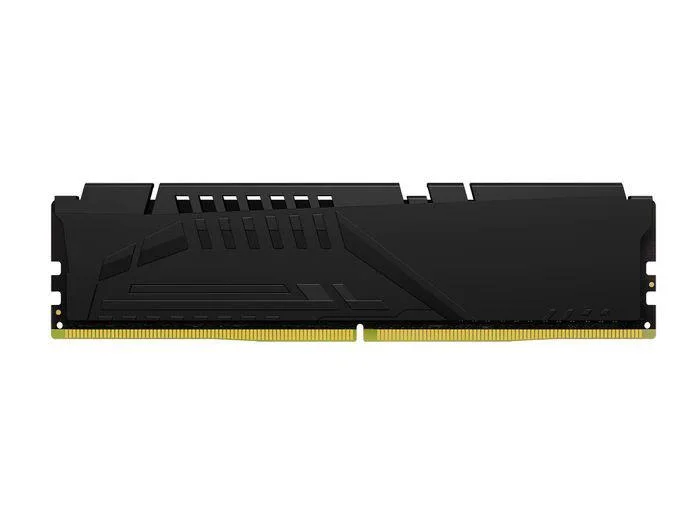

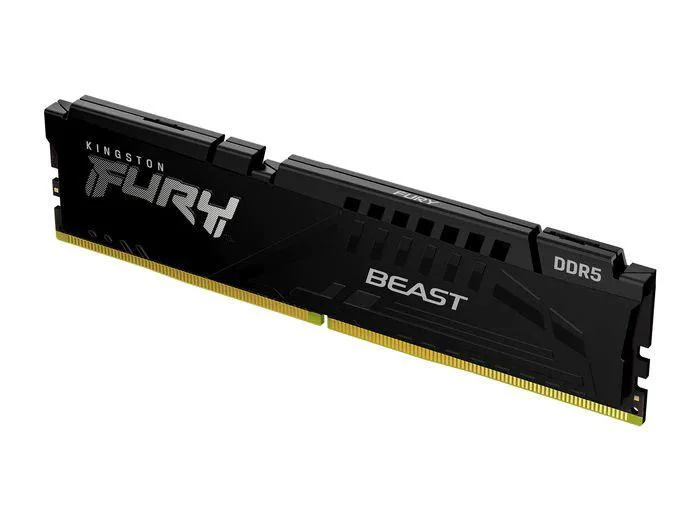

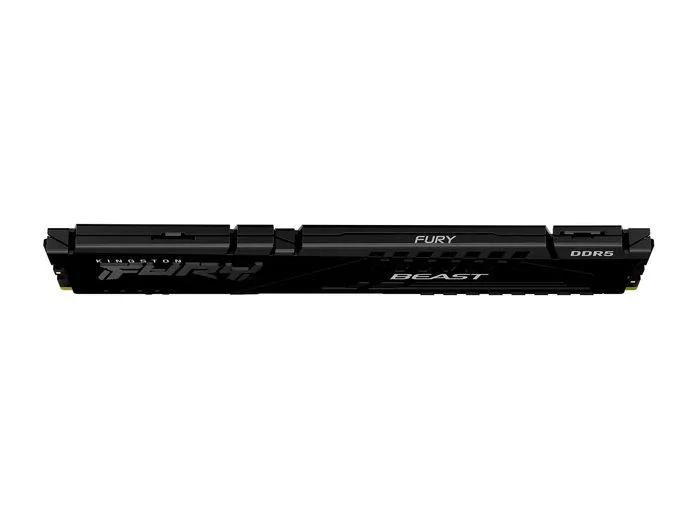

Unleash high-speed performance with the Kingston FURY Beast 16GB DDR5-5600 memory module. Engineered for modern desktops and gaming systems, this DDR5 DIMM delivers blazing 5600 MT/s data transfer speeds and responsive CL36 latency for smoother multitasking, faster loading, and improved overall system responsiveness.
# of #
| Specification | Details |
|---|---|
| Model Number | KF556C36BBE-16 |
| Brand | Kingston FURY Beast |
| Memory Type | DDR5 SDRAM |
| Capacity | 16GB (1 x 16GB) |
| Module Rank | Single-rank (1R) |
| Form Factor | 288-pin DIMM |
| Memory Standard | DDR5-5600 / PC5-44800 |
| Voltage | 1.25V (Operating) |
| Lifetime Warranty | Yes |
| Specification | Details |
|---|---|
| Data Rate / Speed | 5600 MT/s |
| CAS Latency (CL) | CL36-38-38 (at 1.25V) |
| JEDEC Default Timing | DDR5-4800 CL40-39-39 @ 1.1V |
| Profiles Supported | Intel® XMP 3.0 & AMD EXPO v1.0 |
| On-Die ECC | Yes |
| SPD Profiles | JEDEC standard |
| Specification | Details |
|---|---|
| Height | 34.9 mm (1.37”) |
| Width | 133.3 mm |
| Thickness | 6.62 mm |
| Pins | 288 |
| Color | Black Heatspreaders |
| Contact Type | Gold fingers |
| Specification | Details |
|---|---|
| Operating Voltage | 1.25V (typical) |
| Power Supply (VDD) | 1.1V typical |
| VDDQ | 1.1V |
| VPP | 1.8V |
| VDDSPD | 1.8–2.0V |
| Row Cycle Time (tRCmin) | 48 ns (min) |
| Row Active Time (tRASmin) | 32 ns (min) |
| Refresh to Active/Refresh (tRFCmin) | 295 ns (min) |
| Specification | Details |
|---|---|
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -55°C to 100°C |
| UL Rating | 94V-0 |
Unbuffered DIMM (UDIMM) for desktop systems
Non-ECC
Compatible with DDR5-capable motherboards supporting EXPO/XMP profiles
Enhanced performance and efficiency for gaming and productivity builds
