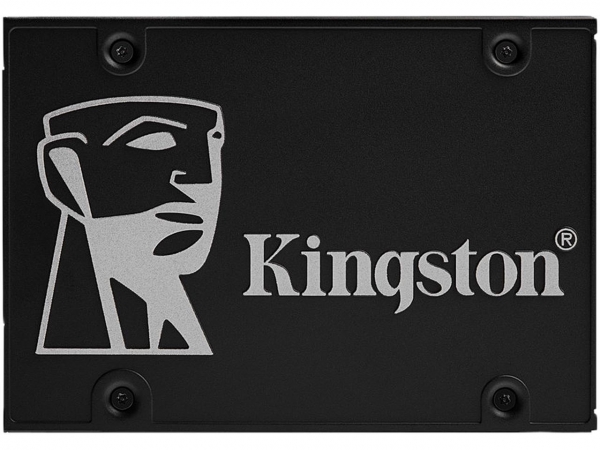

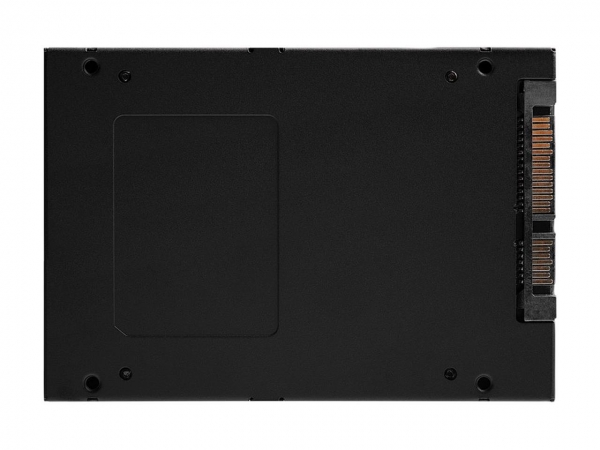

Kingston's KC600 is a full capacity SSD designed to provide remarkable performance and optimized to provide functional system responsiveness with incredible boot, loading, and transfer times. It comes in a 2.5" form factor using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilizes the latest 3D TLC NAND technology while supporting a full-security suite that includes AES 256-bit hardware encryption, TCG Opal, and eDrive. It features read/write speeds up to 550/520MB/s*.
# of #
| Device Type | Solid state drive - internal |
| Capacity | 512 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | 3D NAND Technology, eDrive, Silicon Motion SM2259 controller |
| Width | 69.85 mm |
| Depth | 100.1 mm |
| Height | 7 mm |
| Weight | 40 g |
Performance
| SSD Endurance | 300 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 520 MBps (write) |
| Maximum 4KB Random Write | 80000 IOPS |
| Maximum 4KB Random Read | 90000 IOPS |
Reliability
| MTBF | 1,000,000 hours |
Expansion & Connectivity
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
| Compatible Bay | 2.5" |
Power
| Power Consumption | 0.2 Watt (average) 0.06 Watt (idle) 1.3 Watt (read) 3.2 Watt (write) |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years Technical support |
Environmental Parameters
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Vibration Tolerance (operating) | 2.17 g @ 7-800 Hz |
| Vibration Tolerance (non-operating) | 20 g @ 10-2000 Hz |
