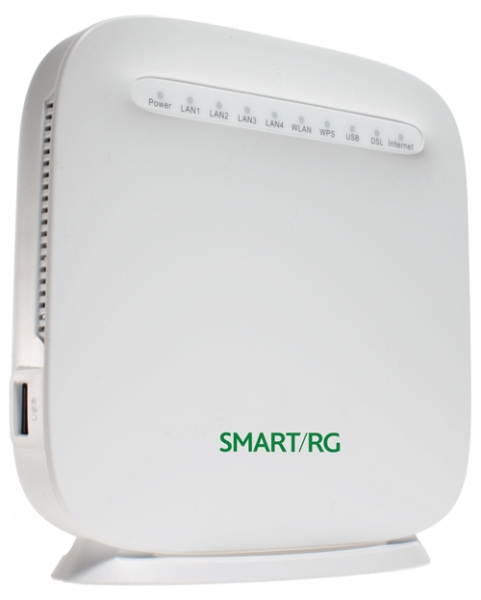

SmartRG SR505N ADSL/VDSL2 + 4-Port WiFi

THE SR505N DSL/FTTH GATEWAY provides high performance and flexibility for broadband and IPTV subscribers. Utilizing the latest Broadcom VDSL2 chipset, the SR505N offers increased packet processing performance, a highly-integrated 802.11n WiFi Access Point with internal antenna array, while consuming less power than previous generation VDSL2 gateways. The SR505N can be used as a DSL or Ethernet gateway, and includes a router, firewall, and TR-069 management.

The SR505N is designed with ease of deployment in mind. The Automatic Broadband Connection feature eliminates the need for an installation CD or manual configuration and, if you decide to deploy a remote management solution, the SR505N offers maximum interoperability with industry-leading TR-069 remote management systems.

$139.95

Sold and Shipped By:

Availability

Out of Stock

Quick Specs

VDSL2 Vectoring
VDSL2 profiles up to 17a, with automatic fallback to ADSL2/2+ Annexes A, L (Reach-Extended) and M (Extended Upstream Bandwidth)
IPv6, Dual-Stack, Dual-Stack Lite, and 6RD transition mechanisms
Managed SPI Firewall
Managed WiFi
TR-069 Captive Portal

VDSL2

- G.993.2
- G.993.5 Vectoring
- Broadcom PhyR™ / G.998.4 (G.inp) Impulse Noise Protection

ADSL

ANSI T1.413 Issue 2
G.992.1 (G.dmt)
G.992.2 (G.lite)
G.992.3 (G.bis/ADSL2)
G.992.5 (ADSL2+)
Annex L (Reach Extended ADSL2)
Annex M (Extended Upstream Bandwidth)
ITU-T G.998.4 (G.inp) & Broadcom PhyRTM Impulse Noise Protection
SRA (Seamless Rate Adaptation)
ITU-T G.992.1 (G.dmt) & ITU-T G.992.2 (G.lite)
ANSI T1.413 Issue 2
3FE + 1GE

Packet Transfer Mode (PTM) in both VDSL2 and ADSL2+
Up to 16 ATM PVCs or 8 PTM flows
Per-PVC packet level QoS
Supports UBR, VBR and CBR traffic shaping
Diffserv and 802.1Q prioritization

802.11n 300Mbps AP with 2×2 MIMO
Wireless bridge, WDS
Multiple SSIDs, including isolated Guest SSID
WiFi QoS (WMM) and PowerSave

Wireless Security

Wi-Fi Protected Access (WPA, WPA2)
AES, TKIP, WEP encryption
802.1x authentication
Wi-Fi Alliance Certified

TR-069 Device Management
TR-098 Gateway Device Model
TR-106 Generic Device Model
TR-111 LAN Device Management
Automatic Subscriber Activation
Real-time Status and Reporting
Remote Firmware Upgrades
Configuration Backup and Restore

Dimensions:
120mm*118mm*30mm

Weight:160g

Power Requirements

Power Requirements
The SR505N uses an AC adapter that supplies DC voltages.

AC Power Adaptor:
100VAC-240VAC

DC Voltage:
12V, 1.5A

Heat & Power Dissipation
Power: < 9W

Electromagnetic Compatibility

Certified with FCC, complied with ETSI standards.

Certified with FCC and Industry Canada

The SR505n complies with the following
standards:

Temperature:
- 0 to 55 degrees C (Standard Operating)
- 20 to 70 degree C (Non-operating)
  - Humidity:
    - - 0% to 90% (Non-condensing, Standard Operating)
      - 5% to 95% (Non-condensing, Non-operating)

        Vibration:
        IEC 68-2-36, IEC 68-2-6
    Shock:
    IEC 68-2-29

    Drop:
    IEC 68-2-32
