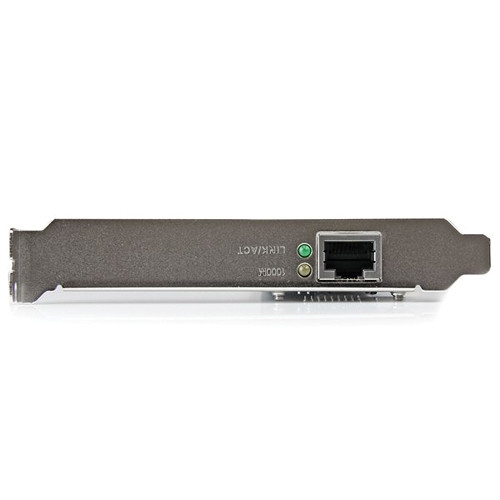

The 1-Port Dual Profile PCIe Gigabit Network Server Adapter NIC Card from StarTech adds a 10/100/1000 Mb/s compatible RJ-45 Ethernet port to a PCIe enabled client, server, or workstation, providing a convenient addition or replacement networking interface. The adapter is compliant with IEEE 802.3/u/ab standards. With support for 9K jumbo frames, VLAN tagging, and Wake-on-LAN (WOL), this adapter delivers superior performance. Furthermore, the card includes both full profile and low profile/half-height brackets for installation in a wide range of computer/server chassis, regardless of form factor.
# of #
Connectivity
| Networking I/O | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
| System Connection | PCIe x1 (Full-Height/Low-Profile Slot) |
General
| Chipset | Realtek RTL8111E |
| Supported IEEE Standards | 802.3, 802.3ab, 802.3u, 802.3x |
| OS Compatibility | Linux Windows macOS *As of June, 2018: Check with manufacturer for the most up-to-date compatibility |
| Auto-MDIX/MDI Support | Yes |
Environmental
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | 32 to 212°F / 0 to 100°C |
| Operating Humidity | 10 to 90% |
Physical
| Certifications | RoHS *as per Manufacturer |
| LED Indicators | Yes |
| Dimensions | 2.7 x 4.7 x 0.7" / 6.8 x 11.9 x 1.7 cm |
| Weight | 1.4 oz / 39.6 g |
