The MXT101MMHQ25 High Resolution VGA Cable (25ft) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
# of #
Triple-coaxial + twisted-pair wire for crystal clear display
Durably constructed cable, with high quality HD15 connectors
Impedance matched at 75 Ohms for full brightness and vibrant picture color from your VGA monitor
High quality VGA connectors with molded PVC strain relief
Warranty Information
Warranty
Lifetime
Connector(s)
Connector A

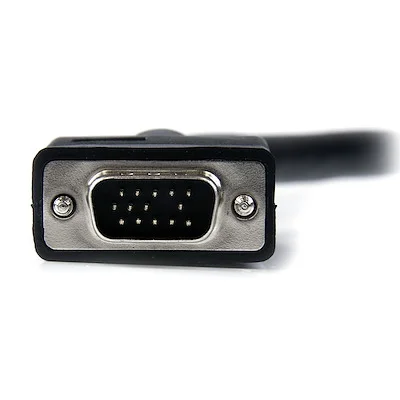

1 - VGA (15 pin, High Density D-Sub)
Connector B
1 - VGA (15 pin, High Density D-Sub)
Environmental
Operating Temperature
0 to 60 °C
Storage Temperature
-20 to 80 °C
Humidity
0 - 80 %RH
Hardware
Number of Conductors
14
Connector Plating
Nickel
Cable Jacket Material
PVC - Polyvinyl Chloride
Cable Shield Material
Aluminum-Mylar Foil with Braid
Number of Ferrites
1
Regulatory Approvals
UL2919
Packaging Information
Package Height
2.4 in [60 mm]
Package Length
13.0 in [33 cm]
Shipping (Package) Weight
27.2 oz [771 g]
Package Width
10.0 in [25.5 cm]
Package Quantity
1
Performance
Impedance
75 Ohm
Physical Characteristics
Weight of Product
26.4 oz [748 g]
Color
Black
Wire Gauge
28 AWG
Max Connector Dimension
1.3 in [34 mm]
Cable Length
25.0 ft [7.6 m]
Cable OD
0.4 in [9 mm]
Product Length
25.0 ft [7.6 m]
Special Notes / Requirements
Note
Pin number 9 is not populated on these connectors
Website Filters
Fire Rating
CMG Rated (General Purpose)
What's in the Box
Included in Package
1 - 25 ft Coax High Resolution Monitor VGA Cable - HD15 M/M
2 - Nuts
