4-Port USB-A Hub, 5Gbps, Bus Powered, Small Travel Mini USB Hub, Multi-Port USB 3.0 Splitter, Portable USB Hub, Overcurrent Protection (OCP)

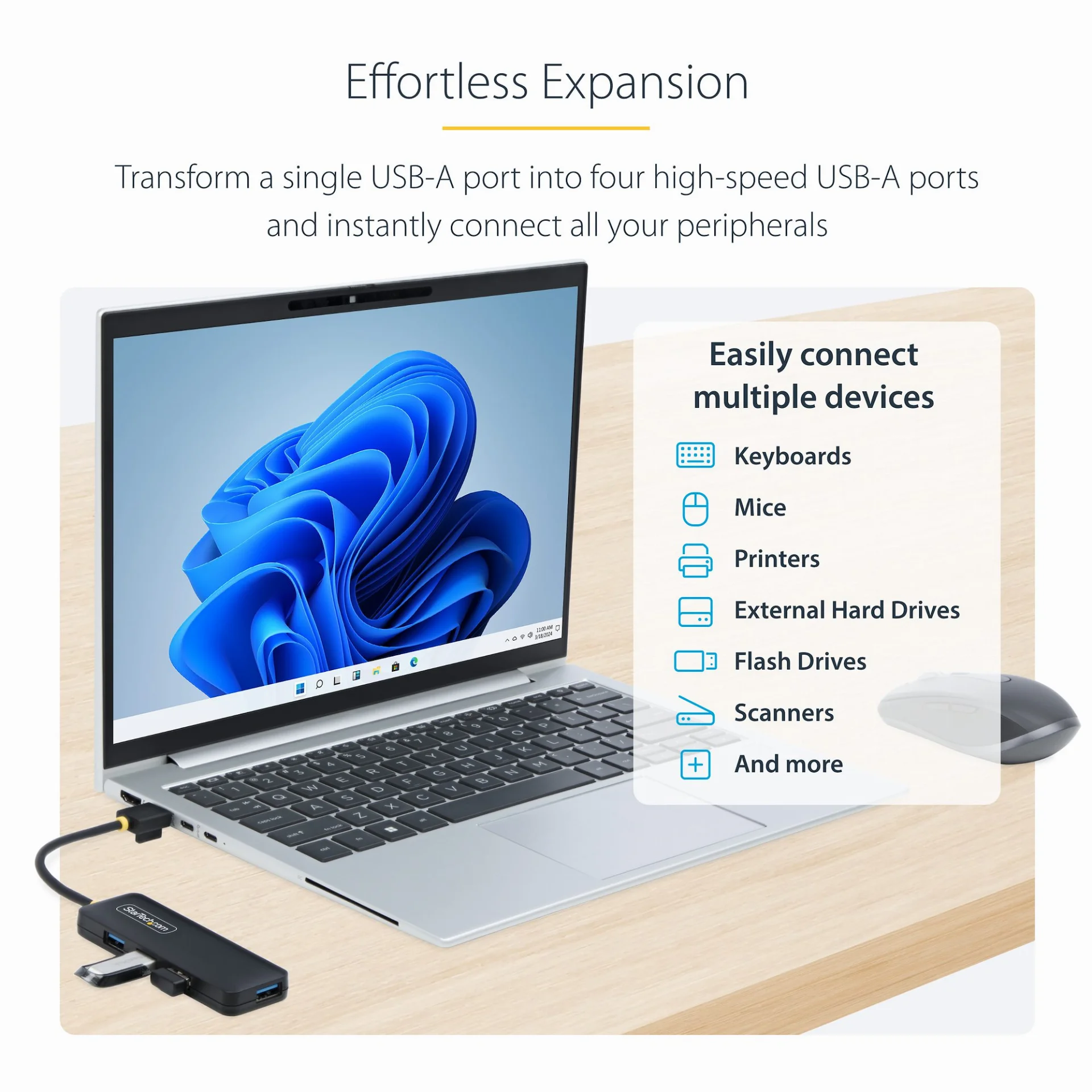

Add four external USB 3.0 ports to your notebook or Ultrabook™ with a slim, portable hub
# of #

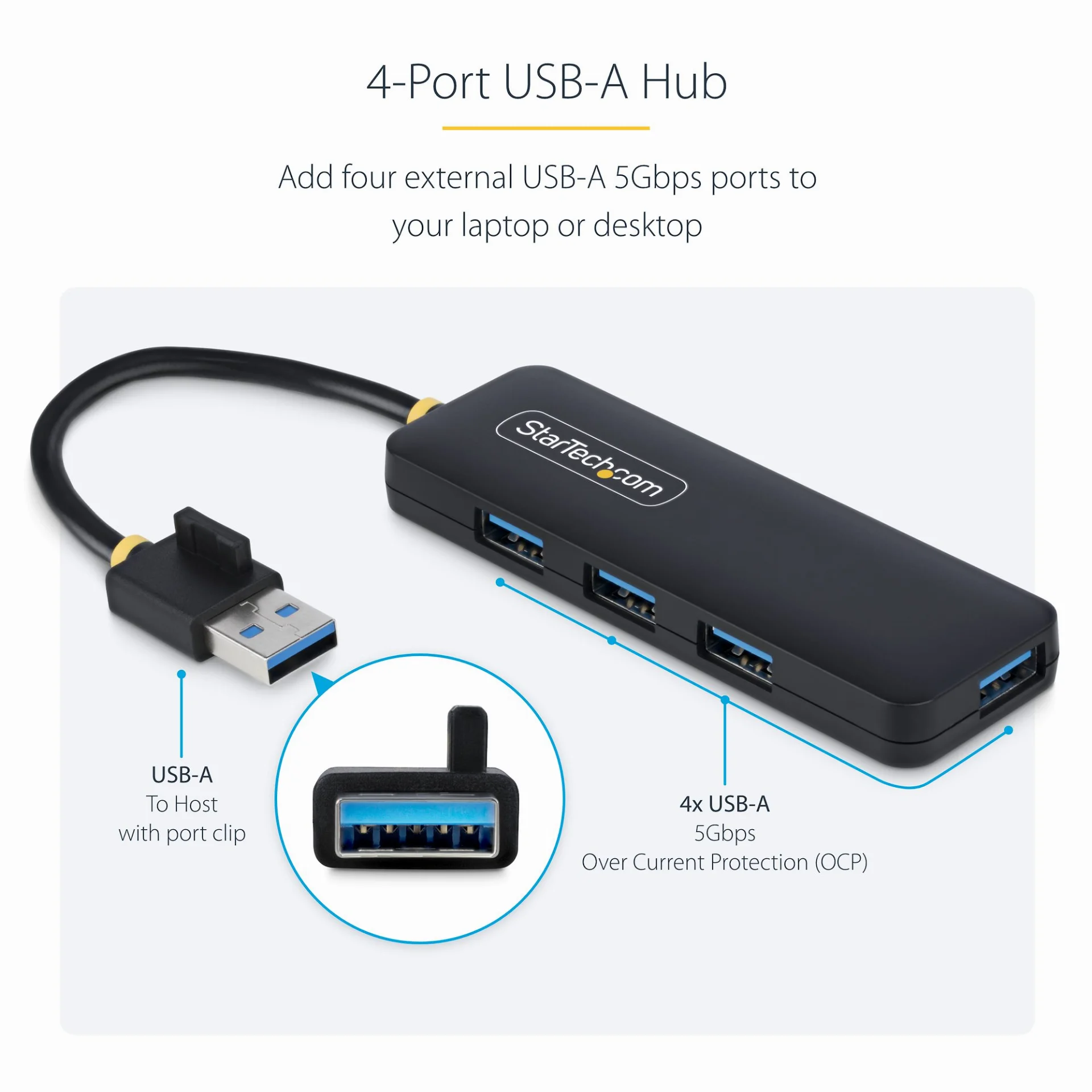

4-PORT USB-A HUB: Bus-powered USB 3.0 expansion hub with built-in USB-A host cable connects up to four USB devices to a computer through a single USB-A port; Supports USB 3.0 (5Gbps) transfer speeds; Wake on USB; Easy, driverless setup

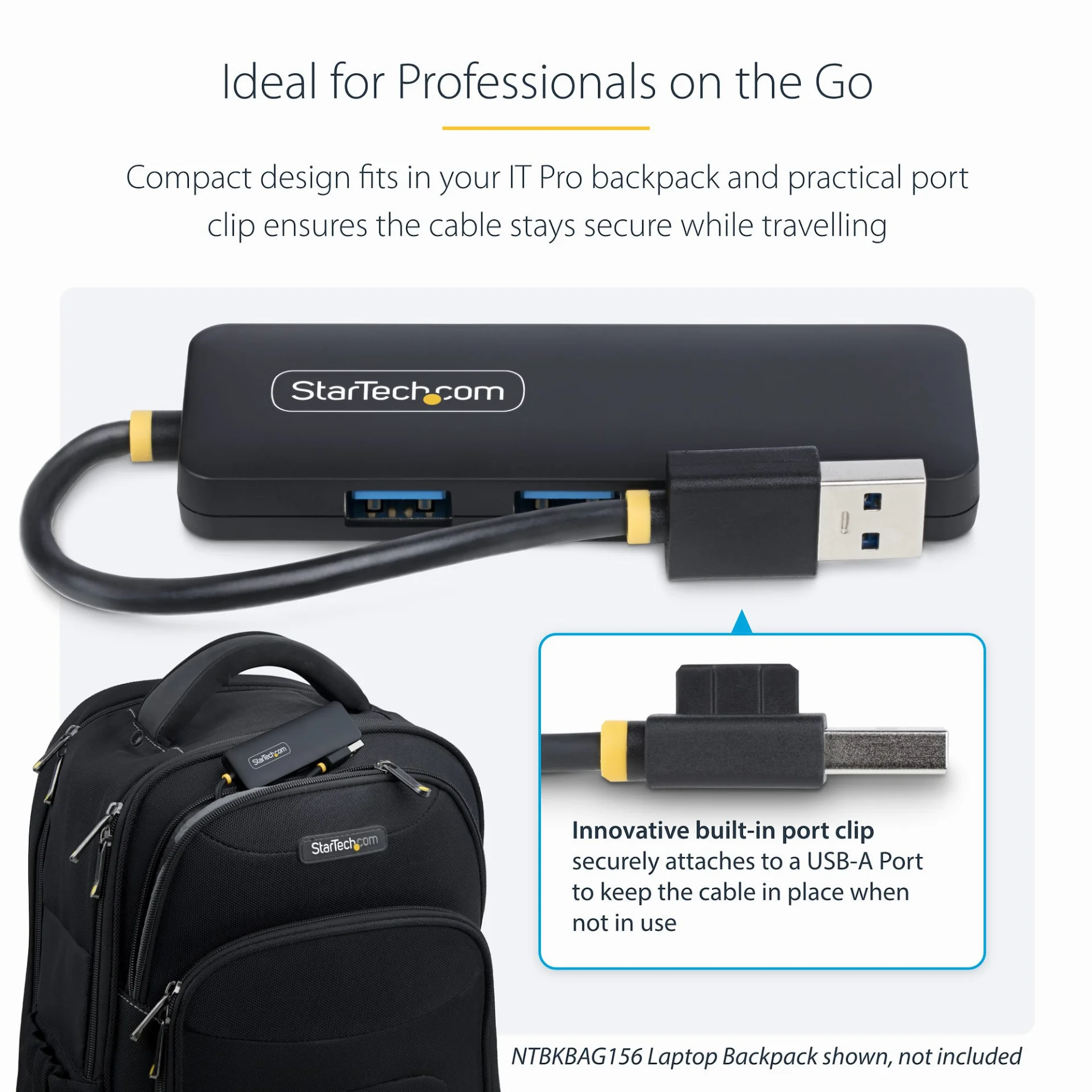

COMPACT & PORTABLE: Compact and lightweight design with 5in (13cm) attached USB-A cable for travelling and desktop use; Cable Management Clip prevents tangles; Three ports on one side/one on the end for easy access when connecting/disconnecting devices
BUS-POWERED: Versatile USB-A hub is bus-powered, drawing power directly from a computer's USB-A port and eliminating the need to carry an external power adapter; Overcurrent Protection (OCP) protects connected peripherals from overdrawing power

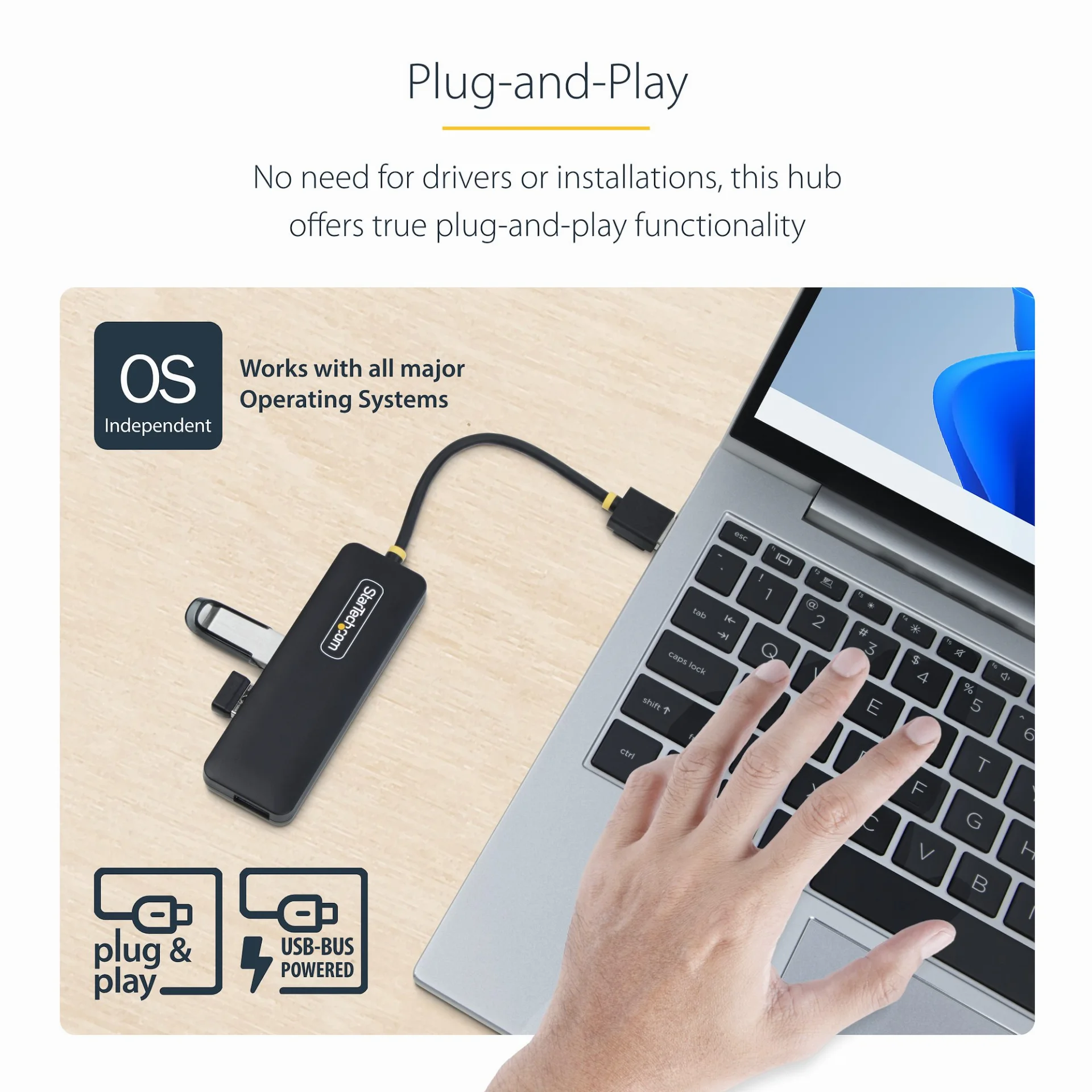

PLUG-AND-PLAY: Automatically detected, configured & installed when connected to a host computer; Works on all operating systems incl. Windows, macOS & ChromeOS; Compatible with USB Type-A host devices incl. Lenovo X1 Carbon, Dell XPS and Microsoft Surface
OUR ADVANTAGE: Included connectivity tools for IT Professionals and IT Help-Desk support teams; Features USB Event Monitoring that logs and timestamps USB port usage, enabling IT administrators to identify potentially malicious devices
Compatibility
OS Independent; No additional drivers or software required
Specifications
Connector(s)
External Ports 4 - USB Type-A (9 pin, 5 Gbps)
Host Connectors 1 - USB Type-A (9 pin, 5 Gbps)
Environmental Operating Temperature 5°C to 35°C (41°F to 95°F)
Storage Temperature 5°C to 35°C (41°F to 95°F)
Humidity 20~80% RH
Fast-Charge Port(s) No
Ports 4
Cable Jacket Material TPE - Thermoplastic Elastomers
Interface USB 3.2 Gen 1 (5Gbps)
Bus Type USB 3.2 Gen 1 (5Gbps)
Chipset ID VIA - VL817S
Packaging Information
Package Height 1.3 in [3.3 cm]
Package Length 6.3 in [16.1 cm]
Shipping (Package) Weight 1.5 oz [42.0 g]
Package Width 5.0 in [12.7 cm]
Performance
Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1)
Type and Rate USB 3.2 Gen 1 - 5 Gbit/s
UASP Support Yes
MTBF 24000 hours

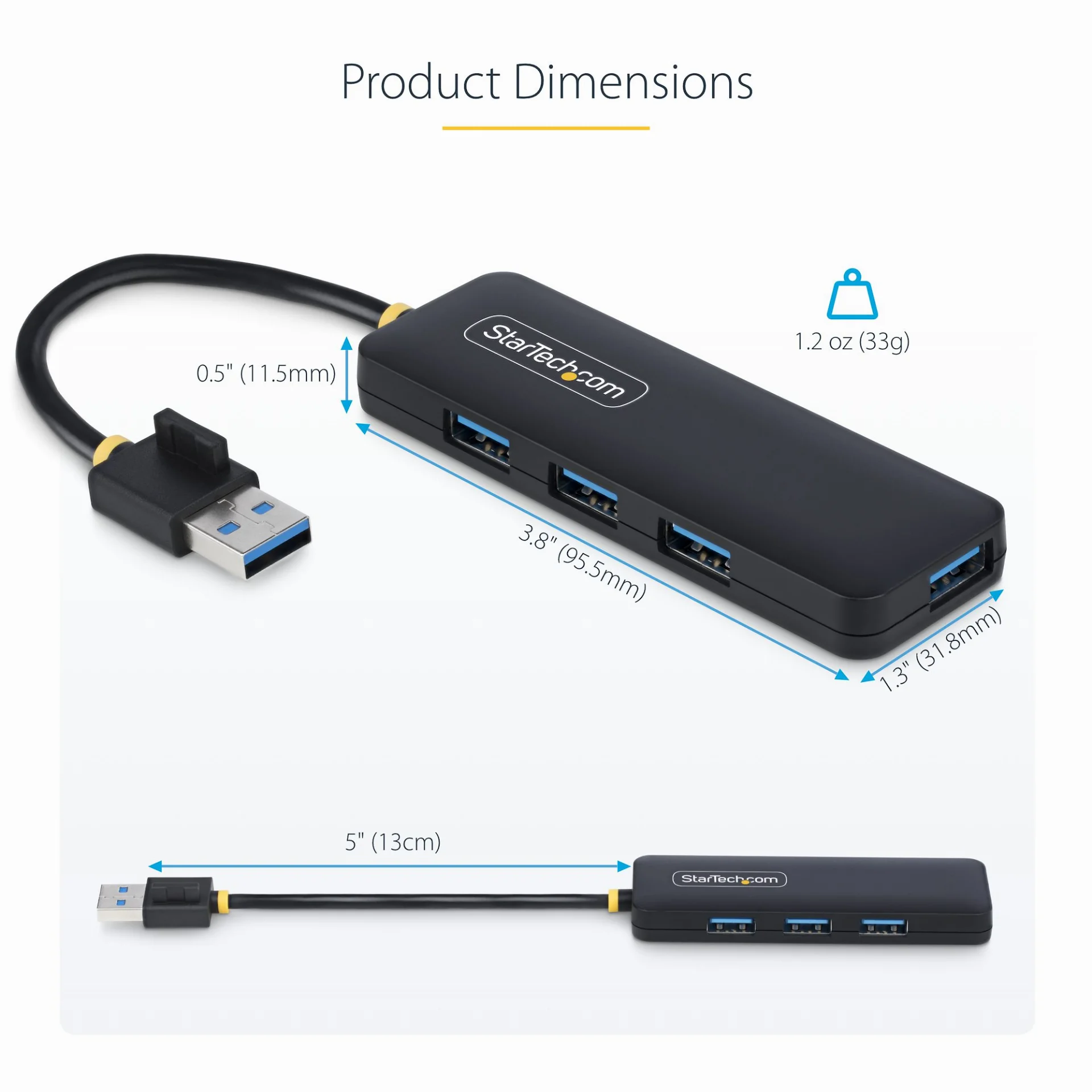

Physical Characteristics
Form Factor Compact
Product Height 0.5 in [11.5 mm]
Product Length 3.8 in [95.5 mm]
Weight of Product 1.2 oz [33 g]
Product Width 1.3 in [31.8 mm]
Colour Black
Material Plastic
Cable Length 5.7 in [145 mm]
Power
Power Source USB-Powered
Input Voltage 5V DC
Output Voltage 5 DC
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements Available USB Port
What's in the Box
Included in Package 1 - USB Hub 1 - Quick Start Guide
