PERFORMANCE: DisplayPort 1.4 to HDMI 2.0b adapter with HDR10 supports UHD 4K 60Hz (3840x2160), 18Gbps bandwidth supports YCbCr 4:4:4 8-bit chroma subsampling, 7.1ch Audio, HDCP 2.2, DPCP | 4.8" (12cm) attached cable | Backwards compatible w/ 1080p
CONTENT CREATION: HDR10 produces lifelike images with a higher contrast-ratio on HDMI 2.0b displays, making it ideal for creative professionals | Use the adapter to connect an HDMI monitor, TV or projector, or add a secondary display to your workstation
HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source including workstations, desktops (AMD Radeon Pro Workstation Graphics, Nvidia RTX/Quadro), small form factor computers & docking stations | Tested w/ HDMI cables up to 23'

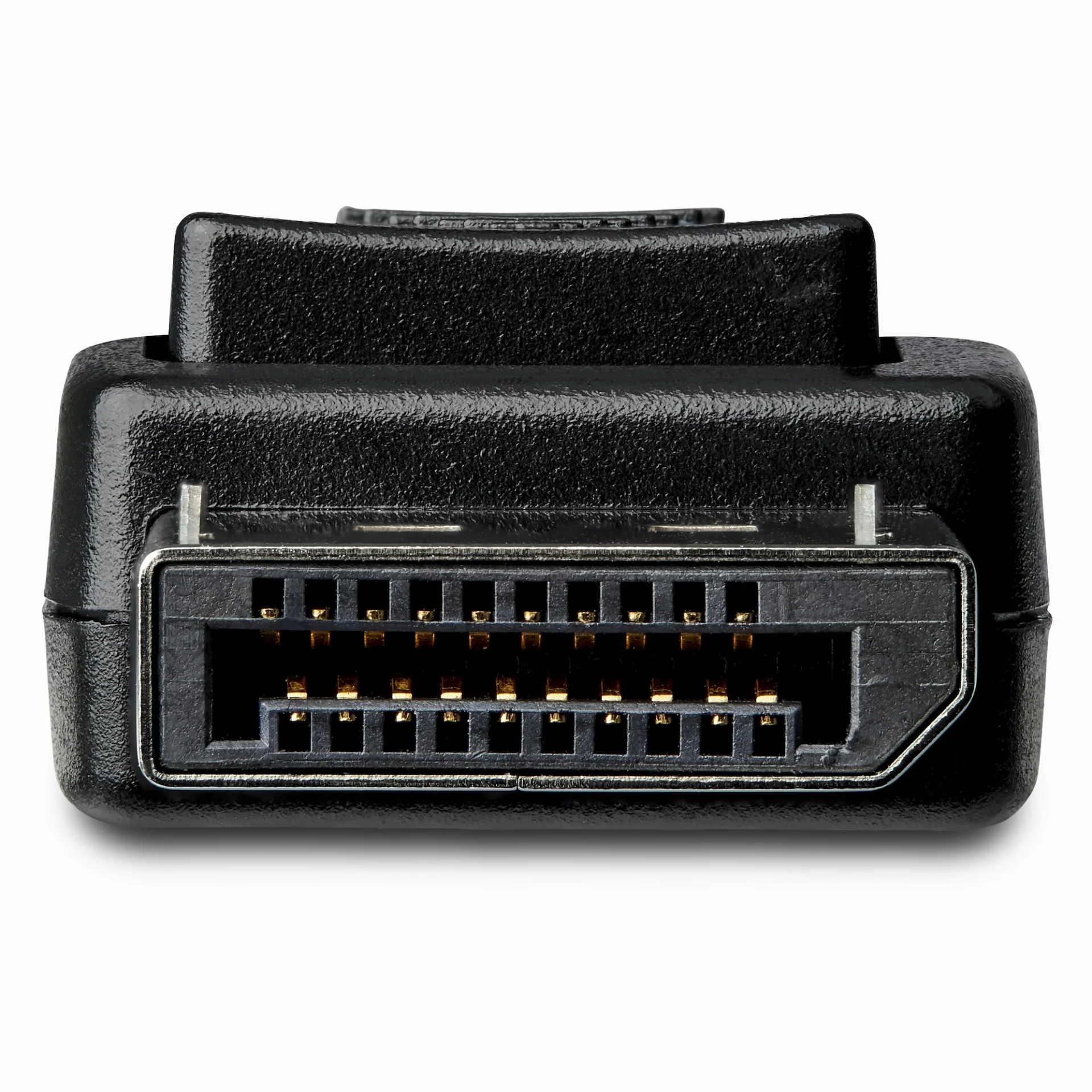

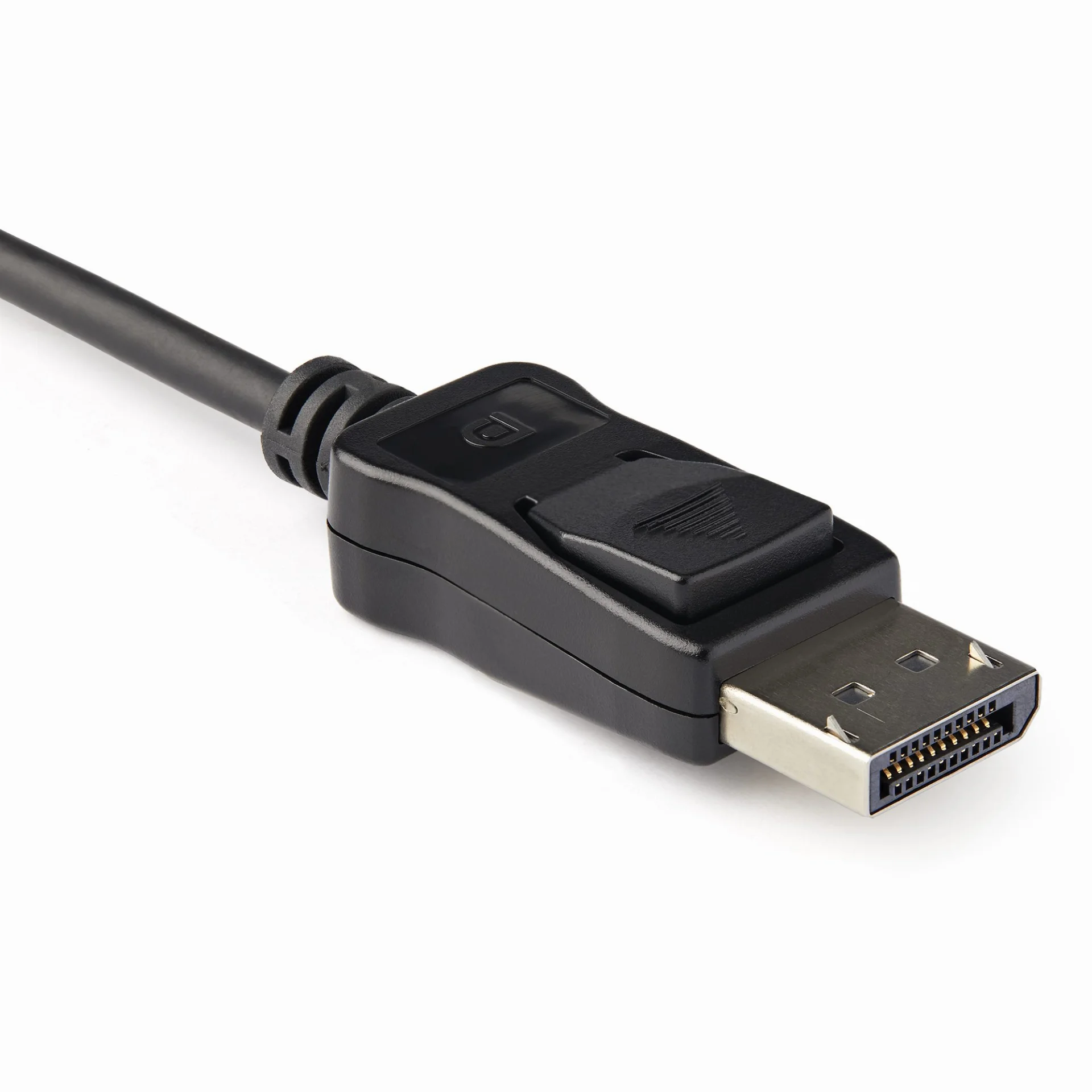

LATCHING DISPLAYPORT CONNECTOR: DP to HDMI adapter dongle with a latching DP connector to ensure solid host connection | Features Electromagnetic Interference (EMI) shielding to protect from line noise/distortion
EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video converter works with any OS including Windows, Ubuntu and macOS; DP Male to HDMI Female
# of #
This DisplayPort to HDMI Adapter lets you connect your DP equipped computer to an HDMI display. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
With brighter colors and greater contrast, the adapter is ideal for:
• Creating eye-catching visuals for photography, videography, cinematography
• Displaying crisp digital signage walls
• Delivering enriched presentations
True 4K at 60Hz and HDR
The DisplayPort to HDMI adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 x 2160) and bandwidths up to 18Gbps. The adapter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. It’s also backward compatible with earlier versions of HDMI and DisplayPort at their supported maximum resolutions.
With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
Ideal for Travel
This lightweight video adapter is highly portable, with a small footprint design. It's the perfect accessory for your DP supported devices, fitting easily into your carrying case.
Hassle-Free Setup
To ensure easy operation and installation, this unique DP to HDMI adapter allows for plug-and-play installation without any additional software or drivers.
DP2HD4K60H is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
To achieve HDR, your DisplayPort device must support version 1.4 and your display must support HDMI 2.0b.
NVIDIA graphics adapters may not support 4:4:4 chroma subsampling and 5.1/7.1 audio output, when used with this adapter.
Warranty Information
Warranty
3 Years
Connector(s)
Connector A
1 - DisplayPort (20 pin)
Connector B
1 - HDMI (19 pin)
Environmental
Operating Temperature
5°C ~ 35°C (41 F°~95 F°)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
25%-60%RH
Hardware
Active or Passive Adapter
Active
AV Input
DisplayPort - 1.4
Ports
1
AV Output
HDMI - 2.0
Audio
Yes
Industry Standards
DPCP (DisplayPort Content Protection)
HDCP 2.2 (High Definition Content Protection)
DisplayPort 1.4
HDMI 2.0b
Chipset ID
MegaChips - MCDP2900
Packaging Information
Shipping (Package) Weight
1.8 oz [50.0 g]
Package Quantity
1
Package Length
7.8 in [19.7 cm]
Package Width
4.6 in [11.6 cm]
Package Height
0.7 in [1.7 cm]
Performance
Audio Specifications
HDMI - 7.1 Channel Audio
Video Revision
HDMI 2.0b
Maximum Cable Distance To Display
23.0 ft [7 m]
Maximum Digital Resolutions
4096 X 2160 @ 24Hz
3840 X 2160 @ 60Hz
Supported Resolutions
4096 X 2160 @ 24Hz
3840 X 2160 @ 60Hz
Lower resolutions and refresh rates may also be supported
Wide Screen Supported
Yes
Physical Characteristics
Color
Black
Material
Plastic
Cable Length
4.8 in [122 mm]
Product Length
10.0 in [25.3 cm]
Product Width
1.1 in [2.9 cm]
Product Height
0.4 in [1.1 cm]
Weight of Product
1.4 oz [39.0 g]
Special Notes / Requirements
Note
This video adapter is not compatible with cables that use RedMere™ technology.
In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications

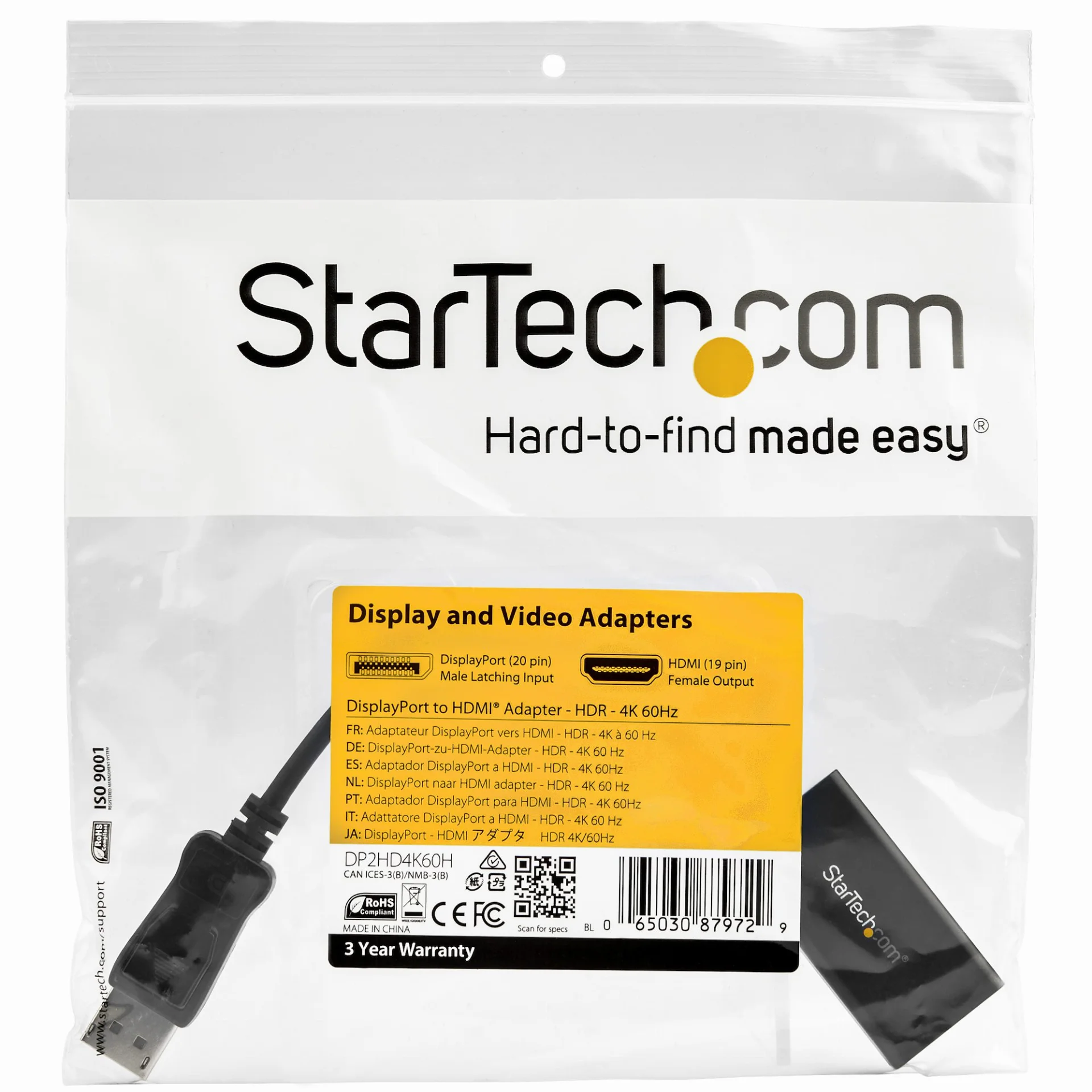

What's in the Box
Included in Package
1 - DisplayPort to HDMI Adapter
