The USB2VGAE2 USB to VGA external video adapter is the perfect multi-monitor VGA solution for office applications and Internet browsing.
The USB video adapter features a small form factor and enables a USB 2.0 port to be used with a VGA port. A cost-saving multi-monitor or dual display option that can be used as an external graphics card for either laptop or desktop applications.
The USB video adapter can be used with up to four additional (five total) USB2VGAE2 USB video adapters, creating multiple VGA connections that can be used to further extend or mirror the desktop shown on the existing display - all without having to open the computer case to add extra video cards.

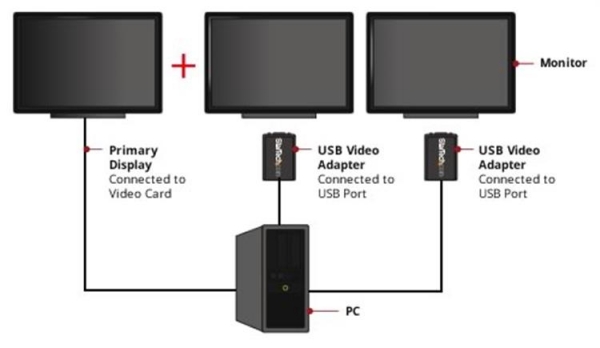

Application Diagram
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
# of #
Optimal performance at 1440x900 (higher resolutions supported) and ideal for use with 17" to 19" monitors or smaller
Works with desktop and laptop computers
No power adapter required
Includes easy to use software that allows for, multi-display management and EDID monitor detection for increased compatibility with displays
Simple installation
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Chipset ID | MCT - Trigger 1+ |
| Memory | 16MB SDRAM |
| USB Pass-Through | No |
| Performance | |
| Supported Resolutions | Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600 Widescreen(16/32 bit): 1680x1050, 1440x900, 1280x800, 1280x768, 1152x864, 800x600 |
| Connector(s) | |
| Connector A | 1 - USB A (4 pin) Male Input |
| Connector B | 1 - VGA (15 pin; High Density D-Sub) Female Output |
| Software | |
| OS Compatibility | Windows 8/8.1 (32/64) Windows 7(32/64) Windows Vista (32/64) Windows XP (32/64) Drivers are WHQL certified |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB 2.0 port |
| Physical Characteristics | |
| Cable Length | 18 in [457.2 mm] |
| Color | Gray |
| Product Height | 2 in [50 mm] |
| Product Length | 3 in [75 mm] |
| Product Weight | 2.8 oz [80 g] |
| Product Width | 1.7 in [42 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 8.2 oz [233.6 g] |
| What's in the Box | |
| Included in Package | 1 - USB to VGA Adapter |
| 1 - Driver and Software CD | |
| 1 - Instruction Manual | |
* Product appearance and specifications are subject to change without notice.
