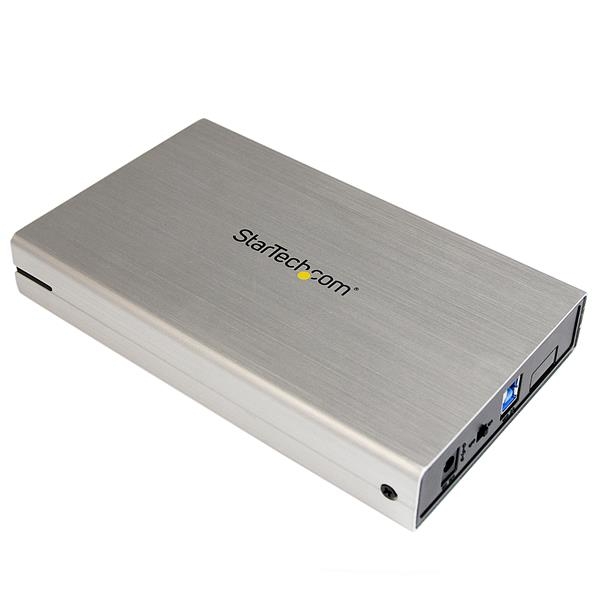

The S3510SMU33 USB 3.0 hard drive enclosure enables you to connect a 3.5in SATA hard drive through an available USB port.
With support for UASP, the enclosure performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for SATA I/II/III hard drives at capacities of up to 4TB. Plus, the enclosure features high-quality aluminum construction and a stylish silver design that looks great in any application.
To ensure compatibility with your computer system, the S3510SMU33 supports all of the leading operating systems, including: Windows, OSX, Linux and Google Chrome.
The S3510SMU33 USB 3.0 HDD enclosure is backed by a 2-year StarTech.com warranty and free lifetime technical support.
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Chipset ID | ASMedia - ASM1153E | |
| Compatible Drive Types | SATA | |
| Drive Installation | Fixed | |
| Drive Size | 3.5in | |
| Fan(s) | No | |
| Interface | USB 3.0 | |
| Number of Drives | 1 | |
| PERFORMANCE | ||
| Max Drive Capacity | No maximum currently known; tested with up to 14TB 7200 RPM hard drive. | |
| RAID | No | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| SATA III (6 Gbps) | ||
| UASP Support | Yes | |

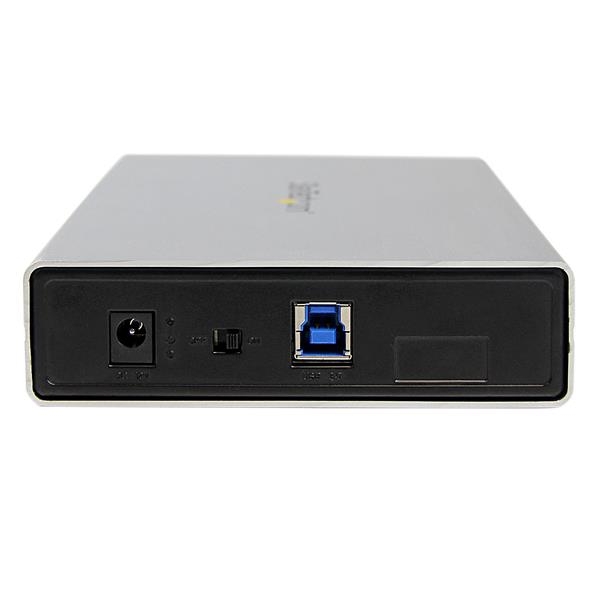

| CONNECTOR(S) | ||
| Drive Connectors | 1 - SATA Data & Power Combo (7+15 pin) Receptacle | |
| Host Connectors | 1 - USB Type-B (9 pin) USB 3.0 Female | |
| SOFTWARE | ||
| OS Compatibility | OS independent; No software or drivers required | |
| SPECIAL NOTES / REQUIREMENTS | ||
| System and Cable Requirements | Available USB port | |
| INDICATORS | ||
| LED Indicators | 1 - Power & Activity | |
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.6 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 2 A | |
| Output Voltage | 12V DC | |
| Power Consumption (In Watts) | 24 | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH |
|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -10°C to 65°C (14°F to 149°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Color | Silver | |
| Material | Aluminum and Plastic | |
| Product Height | 4.5 in [11.5 cm] | |
| Product Length | 7.5 in [19.1 cm] | |
| Product Width | 1.2 in [31.4 mm] | |
| Weight of Product | 11.3 oz [321 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 4.2 in [10.6 cm] | |
| Package Length | 8.7 in [22 cm] | |
| Package Width | 5.3 in [13.5 cm] | |
| Shipping (Package) Weight | 28.1 oz [797 g] | |

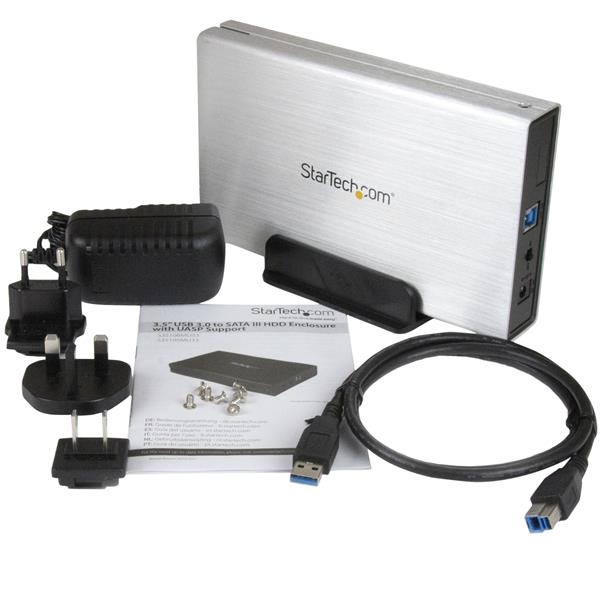

| WHAT'S IN THE BOX | ||
| Included in Package | 1 - 3.5” USB 3.0 SATA III HDD Enclosure | |
| 1 - Screw Kit | ||
| 1 - Universal Power Adapter (NA/JP / UK / EU / ANZ) | ||
| 1 - USB 3.0 Cable (1m) | ||
| 1 - HDD Stand | ||
| 1 - Product Manual | ||
