Thermaltake Smart 80+ 700W - PS-SPD-0700NPCW**-W

$94.95

Sold and Shipped By:

Availability

Head Office and Technical Facility 0

Barrie Store 3

Orillia Store 1

Midland Store 1

Quick Specs

Watts: 700
80 Plus Efficiency: Standard
Modular Cables: NO

Thermaltake Smart 700W

Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

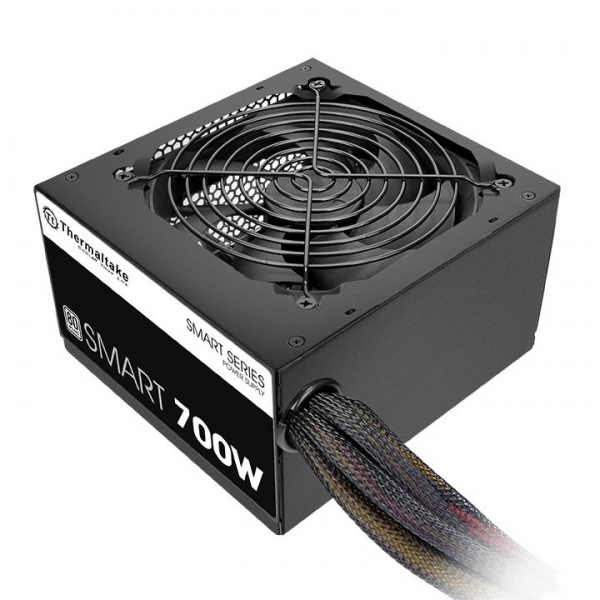

120mm Ultra Quiet Fan

Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors

Smart 700W connector’s specification as below:

80 PLUS Standard Certified and Haswell Ready

Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.

High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Single +12V Output

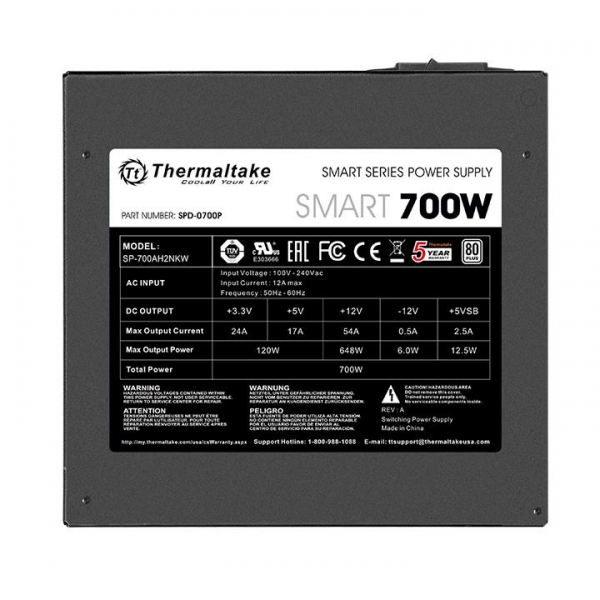

Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:

AC INPUT	Input Voltage: 100V - 240V Input Current: 12A max Frequency: 50Hz-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	24A	17A	54A	0.5A	2.5A
Max Output Power	120W		648W	6.0W	12.5W
Continuous Power	700W

P/N	PS-SPD-0700NPCW**-W
Short P/N	SPD-0700P
Model	SP-700AH2NKW
Type	Intel ATX 12V 2.3
Max. Output Capacity	700W
Color	Black
Dimension (H x W x D)	86mm x 150mm x 140mm
PFC ï¿½iPower Factor Correctionï¿½j	Active PFC
Power Good Signal	100-500 msec
Hold Up Time	16msec (minimum) within 60% load
Input current	12A max
Input Frequency Range	50 Hz - 60 Hz
Input Voltage	100Vac - 240Vac
Operating Temperature	5ï¿½ï¿½ to +40ï¿½ï¿½
Operating Humidity	20% to 85%,non-condensing
Operating Temperature	-40 ï¿½ï¿½ to +55 ï¿½ï¿½
Operating Humidity	10% to 95%, non-condensing
Cooling System	120mm Fan: 1800 R.P.M. ± 10%
Efficiency	80-87% efficiency @ 20-100% load
MTBF	100,000 hrs minimum
Safety Approval	CE/CB/TUV/ UL/ FCC
PCI-E Connector	PCI-E 6+2pin x 2
