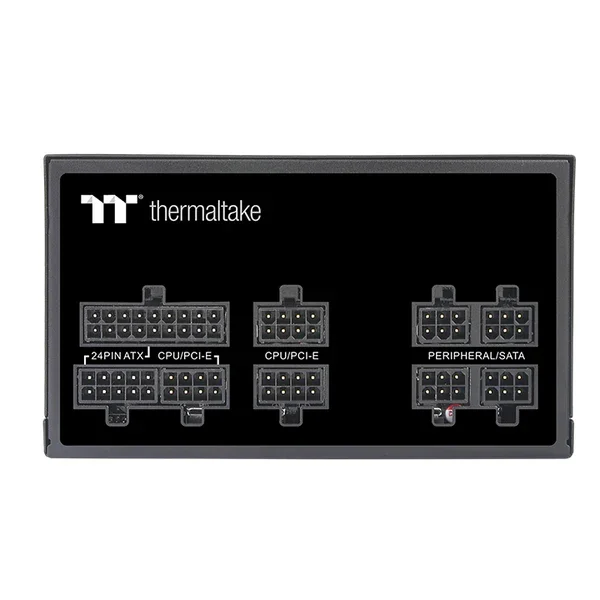

The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with the new ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5 Year Thermaltake Warranty, the Toughpower GT series meets the needs of value oriented users seeking a new power supply with reliable performance.
# of #
| P/N | PS-TPD-0750FNFAGU-1 |
|---|---|
| Model | TTP-750AH3FCG |
| Type | Analog |
| Watts | 750W |
| Max Output Capacity | 750W |
| Peak Output Capacity | 900W |
| Color | Black |
| Dimensions | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 16msec at 100% of full load |
| Input Current | 10A |
| Input Frequency Range | 50Hz - 60Hz |

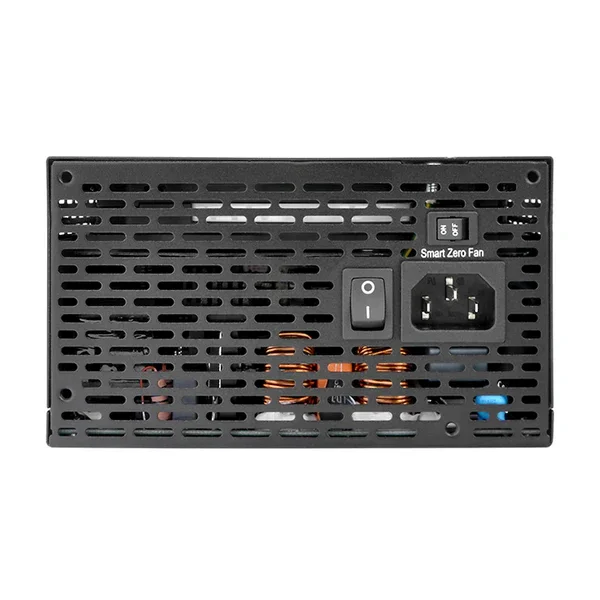

| Input Voltage | 100V – 240V~ |
| Operating Temperture | 0°C to + 50°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperture | -20°C to + 70°C |
| Storage Humidity | 5% to 95%, non-condensing |

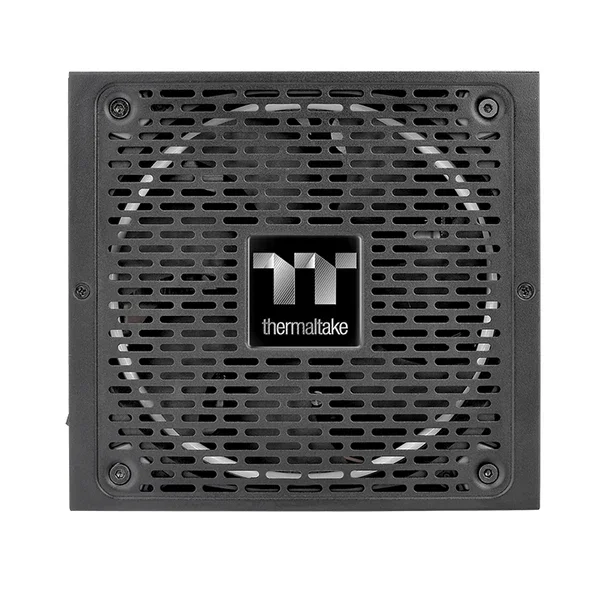

| Cooling System | 14cm hydraulic bearing fan |
| Efficiency | Meet 80 PLUS®Gold at 115Vac input. |
| MTBF | 120,000 hrs minimum |
| Safety Approval | CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC |
| PCI-E 6+2PIN | 4 |
| Protection | OCP, OVP, UVP, OPP, SCP, OTP |
