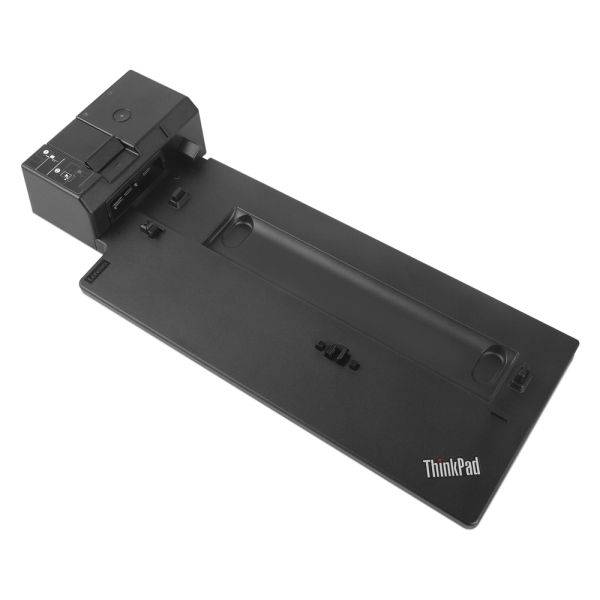

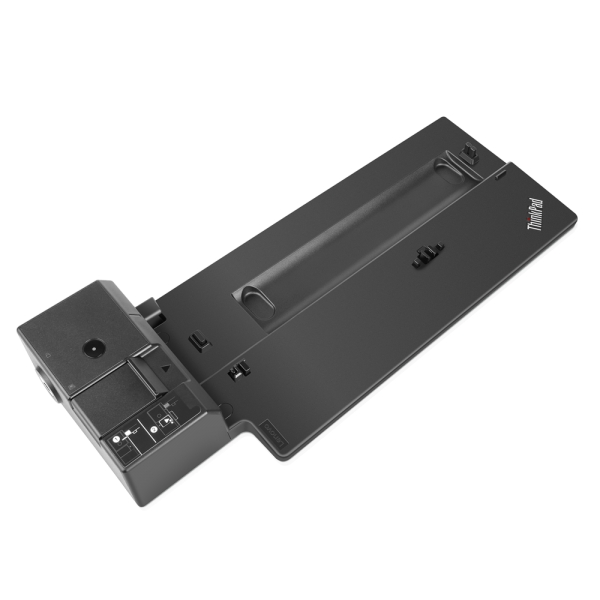

ThinkPad Docking Stations provide the best docking experience for large enterprise ThinkPad customers. The innovative side connector, designed exclusively for ThinkPad laptops, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make it easy to pack and go. Designed for large enterprise environments, ThinkPad Docking Stations support PXE boot, wake on LAN, and MAC address pass-through, simplifying asset management for IT managers. Painstakingly designed extensively tested, ThinkPad Docking Stations provide a seamless docking experience.
# of #
| Agency Approvals | • UL / cUL• FCC• ICES• NOM |
| Brand | ThinkPad |
| Charging Ports | DC-IN (Slim Tip) |
| Color | Black |
| Connectivity | USB-C |
| EAN | 192076019885 |
| Hardware Requirements | NA |
| Included Accessory | • 90W AC Power adapter• Power cord• Pubs |
| Maximum Relative Humidity(%) | 1 |
| Maximum Resolution Support/Refresh Rate | DP port: 4096*2160@60Hz;VGA port: 2048*1536@85Hz |
| Maximum Temperature(℃) | 43 |
| Maximum Temperature(℉) | 109 |
| Minimum Relative Humidity(%) | 8 |
| Minimum Temperature(℃) | -20 |
| Minimum Temperature(℉) | -4 |
| Number of External Monitors | 1 |
| OS Requirements | Windows 10 |
| Other Electrical Specifications | • 2x USB 3.1 gen1 (5Gbps) + 2x USB2.0 with 1 always-on USB charging• 10/1000 Gigabit Ethernet• 1x DisplayPort 1.4• 1x VGA• 1x Stereo/Mic Combo Audio Port• Key lock slot is reserved for master key solution |
| Package Type | Brown Box |
| Packed Physical Specification(Dimension)(in) | 16.61in*7.87in*3.39in |
| Packed Physical Specification(Dimension)(mm) | 422mm*200mm*86mm |
| Packed Weight | 1800g |

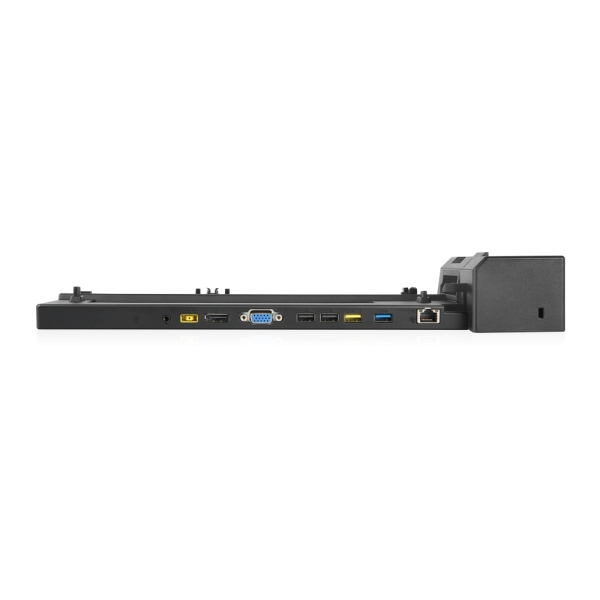

| Ports | • 2x USB 3.1 gen1 (5Gbps) + 2x USB2.0 with 1 always-on USB charging• 10/1000 Gigabit Ethernet• 1x DisplayPort 1.4• 1x VGA• 1x Stereo/Mic Combo Audio Port• 1x DC-IN (Slim Tip) |
| Product Title | ThinkPad Basic Docking Station (US) |
| Security | Kensington security slot |

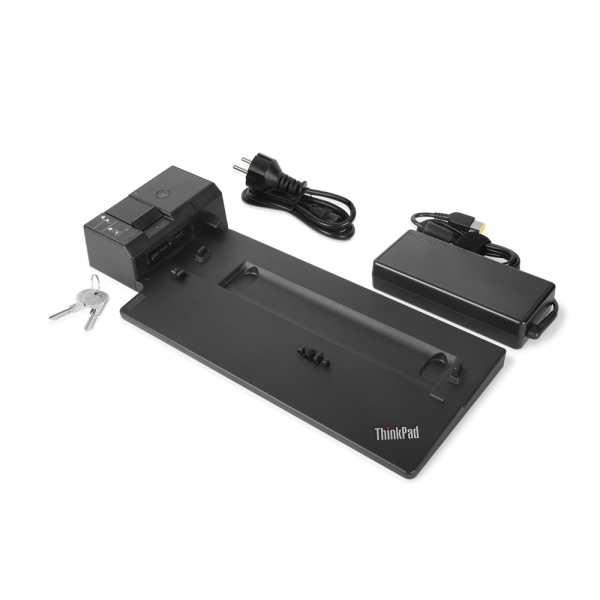

| Shipment Group | • ThinkPad Basic Docking Station• 90W AC adapter• Power cord• Publications |
| Unpacked Physical Specification(Dimension)(in) | 14.88in*6.26in*2.13in |
| Unpacked Physical Specification(Dimension)(mm) | 378mm*159mm*54.1mm |
| Unpacked Weight | 740g |
| UPC | 192076019885 |
| Warranty Terms | 3 Year |
| Wattage (W) | 90 |
| Description | ID | Footnote |
| ThinkPad L Series-L480 | 20LS | |
| 20LT | ||
| ThinkPad L Series-L580 | 20LX | |
| ThinkPad P Series-P52s | 20LC | |
| 20LB | ||
| ThinkPad T Series-T480 | 20L5 | |
| 20L6 | ||
| ThinkPad T Series-T480s | 20L7 | |
| 20L8 | ||
| ThinkPad T Series-T580 | 20LA | |
| 20L9 | ||
| ThinkPad X Series 2nd gen-X1 Carbon 6th Generation | 20KH | |
| 20KG | ||
| ThinkPad X Series 2nd gen-X280 | 20KF | |
| 20KE |
