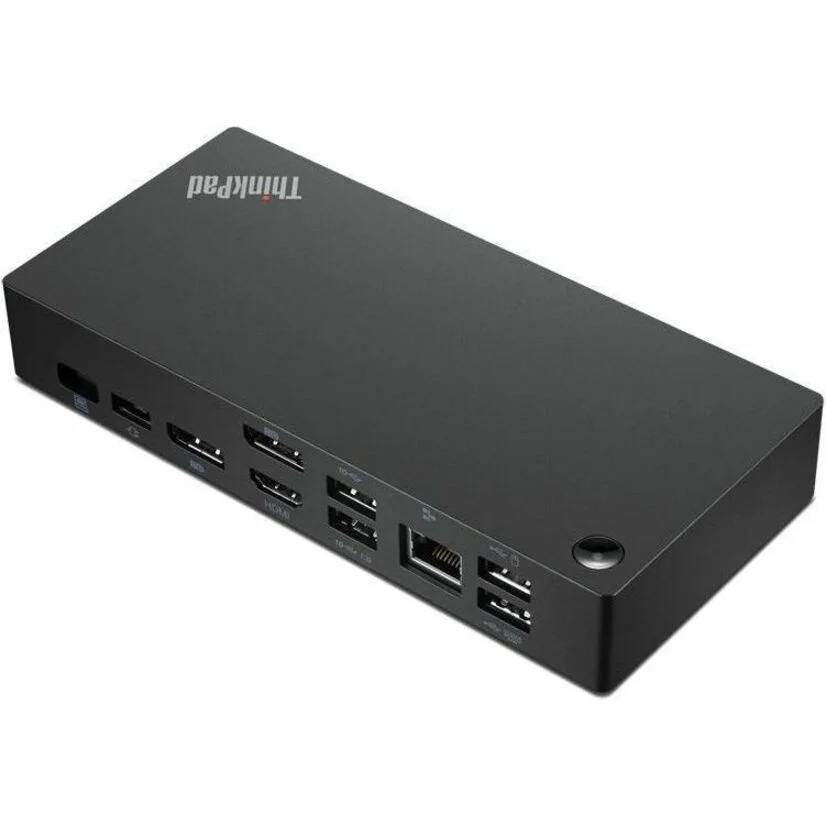

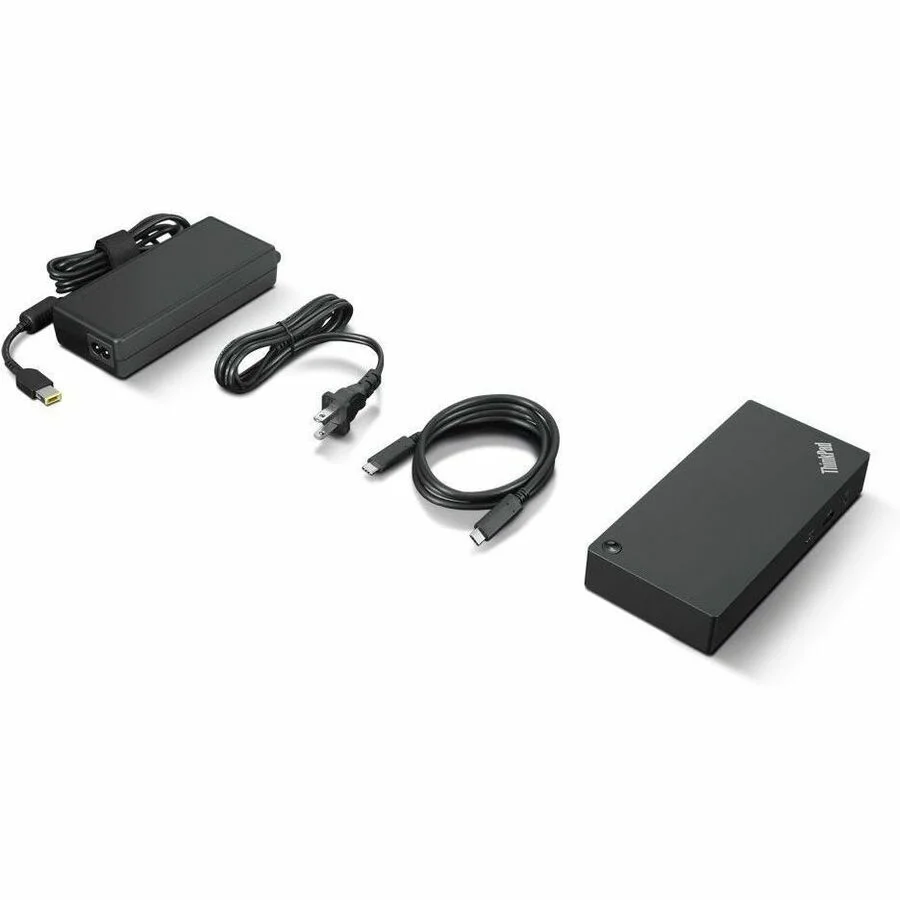

The ThinkPad Universal USB-C Dock (40AY0135US) provides a convenient, reliable way to expand your workstation with a single USB-C connection. Supporting up to three displays, Gigabit Ethernet, multiple USB ports, and up to 100W Power Delivery, it’s ideal for connecting peripherals and powering compatible notebooks. The included 135W power adapter provides dependable power for demanding desktop setups, while features such as PXE Boot, Wake-on-LAN, and MAC Address Pass-through make it well suited for business and enterprise environments.
.webp)
.webp)
.webp)
.webp)
# of #
| Specification | Details |
|---|---|
| Number of Displays | Up to 3 |
| Screen Mode | 4K @ 60 Hz |
| Resolution | 3840 × 2160 |
| HDMI | 1 port |
| DisplayPort | 2 ports |
| Port / Interface | Quantity | Details |
|---|---|---|
| USB Type-C Host Interface | 1 | Host connection |
| USB 2.0 Type-A | 2 | USB 2.0 |
| USB 3.2 Gen 2 Type-A | 3 | Up to 10 Gbps |
| USB-C | 1 | USB-C 3.2 Gen 2 |
| HDMI | 1 | Display output |
| DisplayPort | 2 | Display outputs |
| RJ-45 Ethernet | 1 | Gigabit Ethernet |
| Headphone/Microphone Combo | 1 | Audio |
Total USB Ports: 6
| Specification | Details |
|---|---|
| Form Factor | Desktop |
| Colour | Black |
| Height | 1.21" (30.75 mm) |
| Depth | 3.15" (80 mm) |
| Weight | Approx. 13.69 oz (388 g) |
