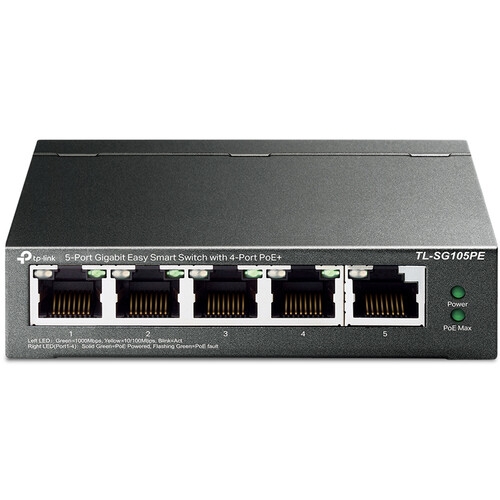

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Expand your business's network capacity to support 802.3af/at compatible power-over-Ethernet devices such as IP cameras, VoIP phones, access points, and more with the TL-SG105PE 5-Port Gigabit PoE+ Compliant Unmanaged Switch from TP-Link. This unmanaged switch includes five Gigabit Ethernet ports, four of which are PoE+ compliant to provide up to 30W of power per port to connected devices with a total budget of 65W. In addition to supporting a wide range of Layer 2 features such as link aggregation groups, IGMP snooping, and multiple VLANs, the TL-SG105PE's 10 Gb/s switching capacity 7.44 Mpps forwarding rate helps to ensure smooth data transfers with minimal packet loss. With its plug-and-play design, this switch can be quickly integrated into your network without having to install any additional hardware or software. Simply use the web-based Easy Smart Configuration Utility to set it up. The fanless cooling allows it to operate silently on desktops to avoid interrupting your office environment.

# of #

$74.95

Sold and Shipped By:

Availability

Head Office and Technical Facility 0
Barrie Store 0
Orillia Store 0
Midland Store 1

Quick Specs

  • 5 x Gigabit Ethernet Ports
  • 4 x PoE+ Compliant Ports
  • 10 Gb/s Switching Capacity
  • 7.44 Mpps Forwarding Rate
  • Desktop Design
  • 65W Power Budget
  • Passive Cooling
  • Plug-and-Play Design
  • Supports Easy Smart Utility
Inputs/Outputs4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Protocols

Layer Services SupportedLayer 2 Support
Supported ProtocolsAuto-MDIX/MDI
IGMP Snooping
Link Aggregation
Port Mirroring
Transmission MethodStore-and-Forward
Jumbo Frames Support16,000 Bytes
MAC Address Table Size2K
Multicast Groups128
VLAN Groups32
VLAN IDs4000

Security

Security FeaturesStorm Control

Standards

Supported IEEE Standards802.1p, 802.1q, 802.3ab, 802.3af, 802.3at, 802.3i, 802.3u, 802.3x

Performance

Forwarding Rate7.44 Mpps
Switching Bandwidth10 Gb/s
Packet Buffer1.5 Mb

Electrical

Power Draw4.5 W (Active)
75.2 W (Max)

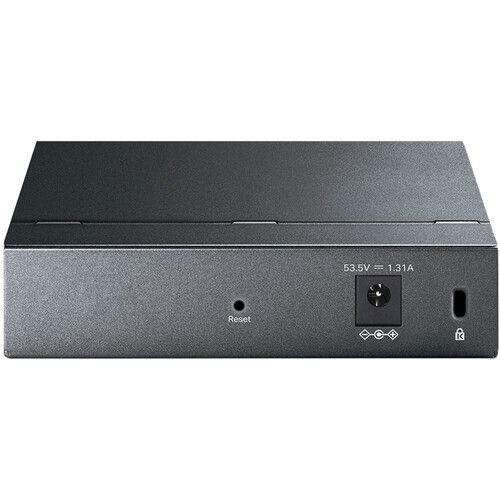

DC Input Power53.5 VDC at 1.3 A
PoE Power Budget65 W
PoE per Port30 W
Power Supply TypeExternal

Environmental

Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity10 to 90%
Storage Temperature-40 to 158°F / -40 to 70°C
Storage Humidity5 to 95%

General

Cooling SystemPassive
Indicator LightsLink/Activity, PoE, Power
Dimensions3.9 x 3.9 x 1" / 99.8 x 98 x 25 mm
