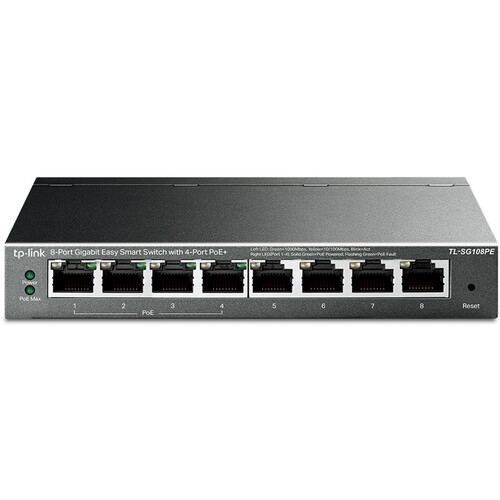

Quickly expand your home or small business network to support Power-over-Ethernet (PoE) devices, such as IP security cameras, VoIP phones, wireless access points, and more, with the TL-SG108PE V2 8-Port Gigabit PoE Compliant Unmanaged Switch from TP-Link. This unmanaged switch includes eight Gigabit Ethernet ports, four of which are PoE compliant and support up to 15W each with a total power budget of 55W. At the same time, its 16 Gb/s switching capacity and 11.9 Mpps forwarding rate help to ensure smooth and reliable data transfers between devices. With its plug-and-play design, the TL-SG108PE V2 8-port switch is designed to quickly integrate into your network without the need for a lengthy and complicated setup process.
# of #
| Inputs/Outputs | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) |
Protocols
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping Link Aggregation Port Mirroring |
| Transmission Method | Store-and-Forward |
| Jumbo Frames Support | 15,000 Bytes |
| MAC Address Table Size | 4K |
| Multicast Groups | 128 |
| VLAN Groups | 32 |
| VLAN IDs | 4000 |
Security
| Security Features | Storm Control |
Standards
| Supported IEEE Standards | 802.1p, 802.3ab, 802.3i, 802.3q, 802.3u, 802.3x |
Performance
| Forwarding Rate | 11.9 Mpps |
| Switching Bandwidth | 16 Gb/s |
| Priority Queues | 4 |
| Packet Buffer | 1.5 MB |
Electrical
| Power Draw | 65.2 W (Max) |
| DC Input Power | 48 VDC at 1.25 A |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 55 W |
| PoE per Port | 15 W |

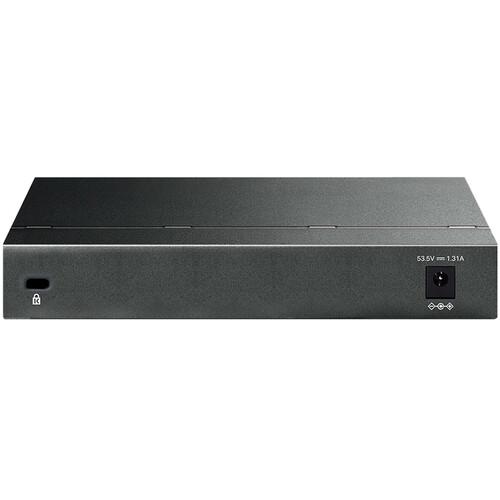

| Power Supply Type | External |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 95% |
General
| Cooling System | Passive |
| Material of Construction | Metal |
| Indicator Lights | Link/Activity/Speed, PoE, Power |
| Dimensions | 6.2 x 4 x 1" / 158 x 101 x 25 mm |
