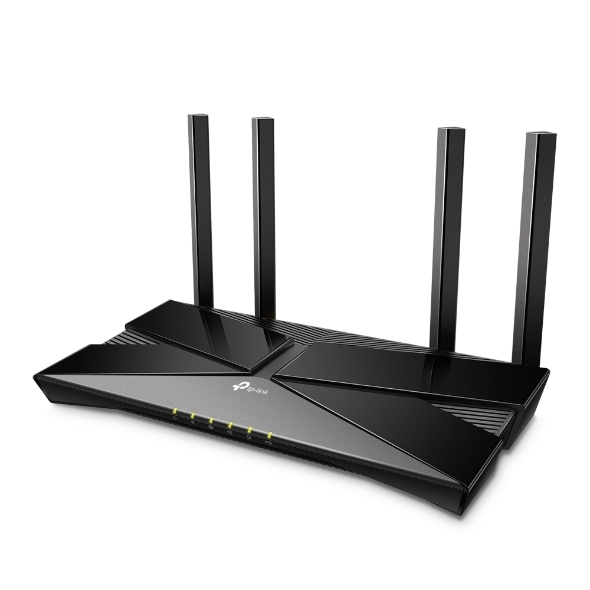

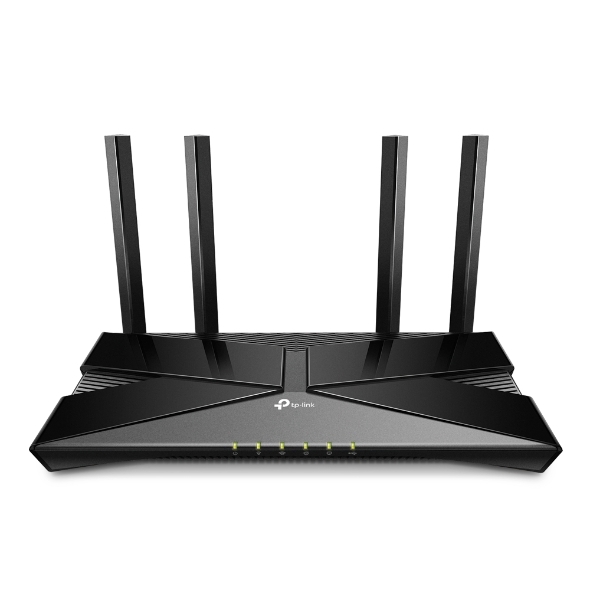

TP-Link Archer AX20 Router

AX1800 Dual-Band Wi-Fi 6 Router

# of #

$169.95

Sold and Shipped By:

Availability

Out of Stock

Quick Specs

  • Dual-Band Wi-Fi 6: Wi-Fi 6 technology achieves faster speeds, greater capacity and reduced network congestion compared to the previous generation.2
  • Next-Gen 1.8 Gbps Speeds: Enjoy smoother and more stable streaming, gaming, downloading and more with WiFi speeds up to 1.8 Gbps (1200 Mbps on 5 GHz band and 574 Mbps on 2.4 GHz band).1
  • Connect More Devices:  Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag for ultra-responsive entertainment.3
  • Quad-Core Processing: The powerful 1.5 GHz quad-core CPU ensures communications between your router and connected devices are smooth.
  • Extensive Coverage: Achieve the strongest, most reliable WiFi coverage with Archer AX1800 as it focuses signal strength to your devices far away using Beamforming technology, 4 antennas and an advanced front-end module (FEM) chipset.
  • Increased Battery Life for Devices: Target Wake Time technology reduces your devices' power consumption to extend their battery life.5
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App
  • Backward Compatible: Archer AX20 supports all previous 802.11 standards and all WiFi devices

WIRELESS

Standards

  • Wi-Fi 6
  • IEEE 802.11ax/ac/n/a 5 GHz
  • IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

  • AX1800
  • 5 GHz: 1201 Mbps (802.11ax)
  • 2.4 GHz: 574 Mbps (802.11ax)

WiFi Range

3 Bedroom Houses

Antennas

  • Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

  • Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

  • Improves transmission power to strengthen signal coverage

WiFi Capacity

High

Dual-Band

  • Allocate devices to different bands for optimal performance

OFDMA

  • Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

  • Improves network efficiency by limiting excessive occupation

4 Streams

  • Connect your devices to more bandwidth

Working Modes

  • Router Mode
  • Access Point Mode

HARDWARE

Processor

  • 1.5 GHz Quad-Core CPU

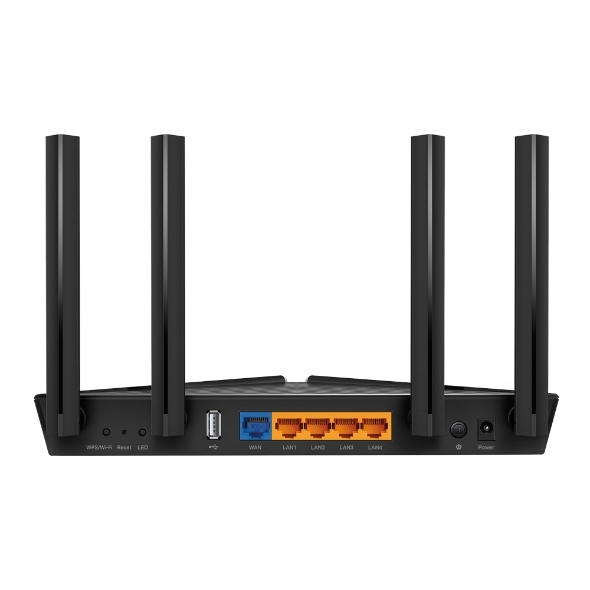

Ethernet Ports

  • 1× Gigabit WAN Port
  • 4× Gigabit LAN Ports

USB Support

  • 1× USB 2.0 Port

Supported Partition Formats:

  • NTFS, exFAT, HFS+, FAT32

Supported Functions:

  • Apple Time Machine
  • FTP Server
  • Media Server
  • Samba Server

Buttons

  • WPS/Wi-Fi Button

Power

  • On/Off Button
  • LED On/Off Button
  • Reset Button

Power

  • 12 V ⎓ 1.5 A

SECURITY

WiFi Encryption

  • WPA
  • WPA2
  • WPA3

Network Security

  • SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway

Guest Network

  • 1× 5 GHz Guest Network
  • 1× 2.4 GHz Guest Network

VPN Server

  • OpenVPN
  • PPTP

SOFTWARE

Protocols

  • IPv4
  • IPv6

OneMesh™

  • V1.0 only
  • OneMesh™ Supported
  • Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Parental Controls

  • URL Filtering
  • Time Controls

WAN Types

  • Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TP

Quality of Service

  • QoS by Device

Cloud Service

  • Auto Firmware Upgrade
  • OTA Firmware Upgrade
  • TP-Link ID
  • DDNS

NAT Forwarding

  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP

IPTV

  • IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLAN

DHCP

  • Address Reservation
  • DHCP Client List
  • Server

DDNS

  • TP-Link
  • NO-IP
  • DynDNS

Management

  • Tether App
  • Webpage

PHYSICAL

Dimensions (W×D×H)

  • 10.2 × 5.3 ×1.5 in
  • (260.2 × 135.0 × 38.6 mm)

Package Contents

  • Wi-Fi Router Archer AX20
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide

OTHER

System Requirements

  • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
  • Cable or DSL Modem (if needed)
  • Subscription with an internet service provider (for internet access)

Certifications

  • FCC

Environment

  • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

FCC:

  • <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
