TP-LINK AX3000 WALL PLATE WI-FI 6 ACC POINT - EAP655-Wall

Hardware Specifications

Interfaces

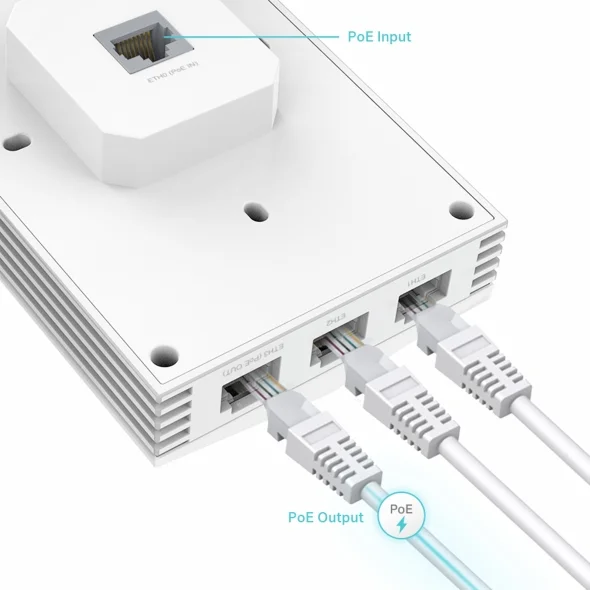

• Uplink: 1 × Gigabit Ethernet Port
• Downlink: 3 × Gigabit Ethernet Ports
  • 1 × Port supports PoE Out (pass-through)
  • Requires 802.3at PoE+ input
  • Max PoE Output:
    • 10.5W (EU)
    • 10W (US)

Power

• Power Supply: 802.3af/at PoE

Power Consumption

• EU: 12W (802.3at, PoE Out disabled)
• US: 12.6W (802.3at, PoE Out disabled)

Physical

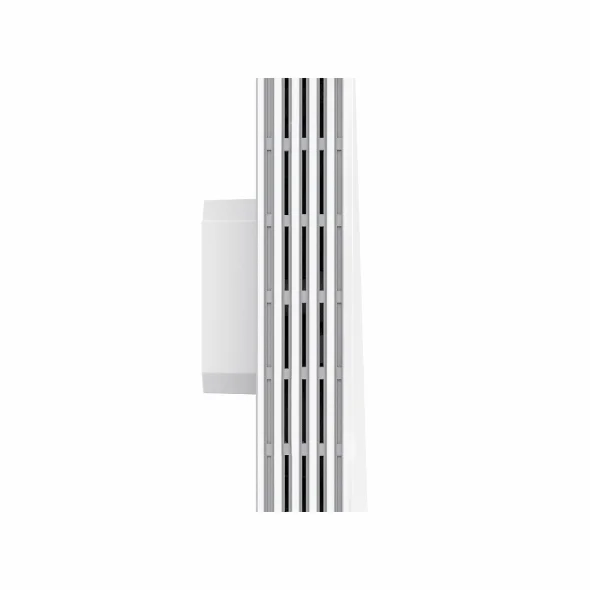

• Dimensions: 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)

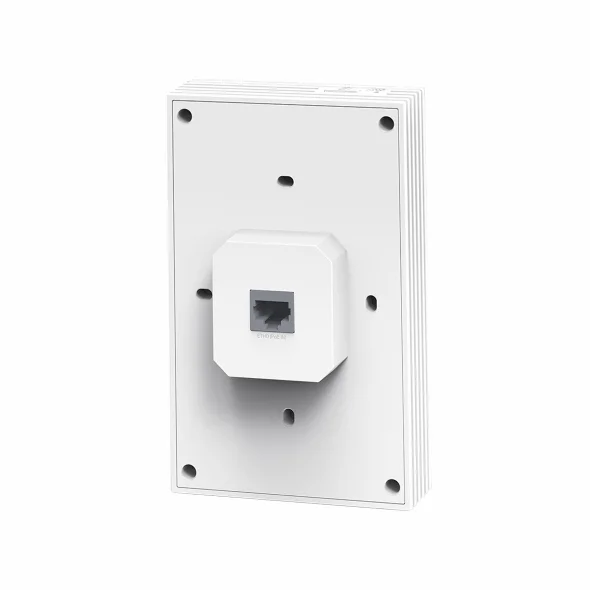

• Mounting: Wall mount (screws included)
• Buttons: Reset, LED
• Security Lock: Not supported

Antenna

• 2 × Dual-Band Internal Antennas
  • 2.4 GHz: 2 × 3 dBi
  • 5 GHz: 2 × 5 dBi

Wireless Specifications

Coverage & Capacity

• Coverage Area: Up to 50 m² (600 ft²)
• Concurrent Clients: 120+

Standards

• IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)

Frequency Bands

• 2.4 GHz
• 5 GHz

Maximum Data Rates

• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Features

• Up to 16 SSIDs (8 per band)
• Seamless Roaming (802.11k/v/r)§
• Beamforming
• Band Steering
• Airtime Fairness
• Load Balancing
• QoS (WMM)
• Automatic Channel Assignment
• Transmit Power Control
• Rate Limiting
• Wireless Scheduling & Reboot Scheduling
• RADIUS Accounting & MAC Authentication
• Wireless Statistics Monitoring
• Static / Dynamic IP Support

Wireless Security

• WPA/WPA2/WPA3 – Personal & Enterprise
• Captive Portal Authentication§
• 802.1X Support
• MAC Address Filtering
• Wireless Client Isolation
• VLAN Support
• Rogue AP Detection
• Access Control

Transmission Power

CE

• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz, Band 1 & 2)
• <26 dBm (5 GHz, Band 3)

FCC

• <21 dBm (2.4 GHz)
• <21 dBm (5 GHz, all bands)

Management & Control

Platform Support

• Omada App: Yes
• Cloud Access: Yes (Omada Controller required)

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Management Features

• Zero-Touch Provisioning (Cloud-based)
• Multi-site Management
• L3 Management
• Management VLAN

Monitoring & Access

• SNMP (v1, v2c, v3)
• SSH Access
• Web Management (HTTP/HTTPS)
• Local & Remote Syslog
• Email Alerts
• LED On/Off Control
• MAC Access Control (Management)

Environmental & System Requirements

Operating Conditions

• Operating Temperature: 0–40°C (32–104°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% RH (non-condensing)
• Storage Humidity: 5–90% RH (non-condensing)

System Compatibility

• Windows (XP → 11)
• Linux

Certifications

• FCC
• RoHS

Package Contents

• AX3000 Wall Plate Wi-Fi 6 Access Point (EAP655-Wall)
• Installation Guide
• Mounting Kits

Notes

• § Features require compatible Omada controller and environment
• Coverage and client capacity may vary depending on environment and usage conditions
