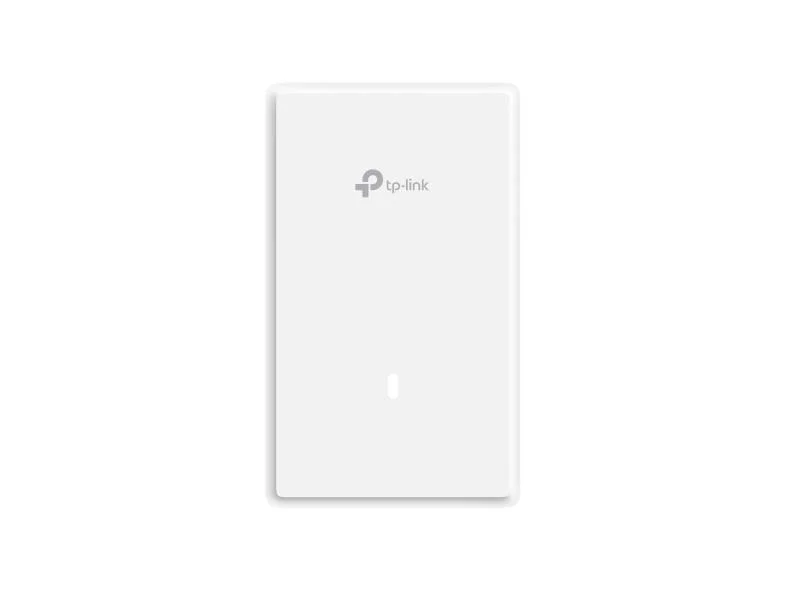

TP-LINK BE5000 WALL-PLATE DUAL-BAND WI-FI 7 ACCESS POINT - EAP725-Wall

Hardware Specifications

Interfaces

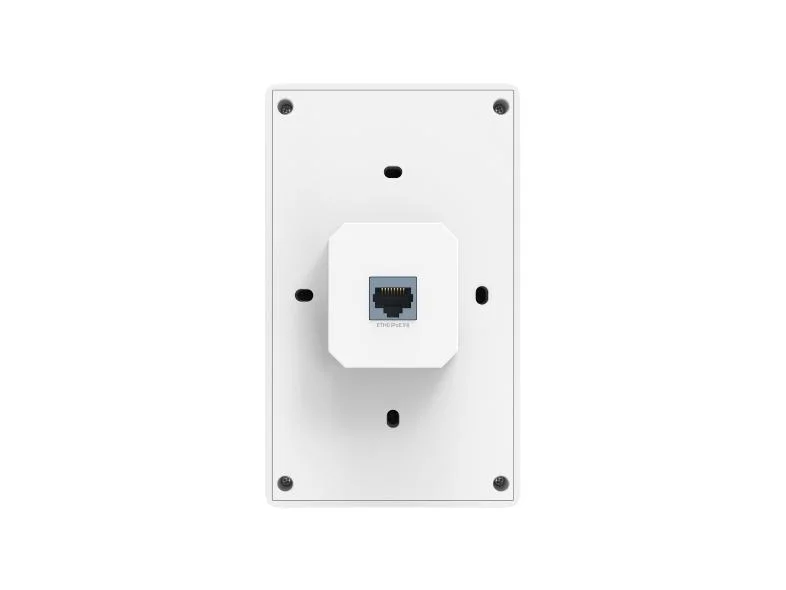

• Uplink: 1 × 2.5G Ethernet Port

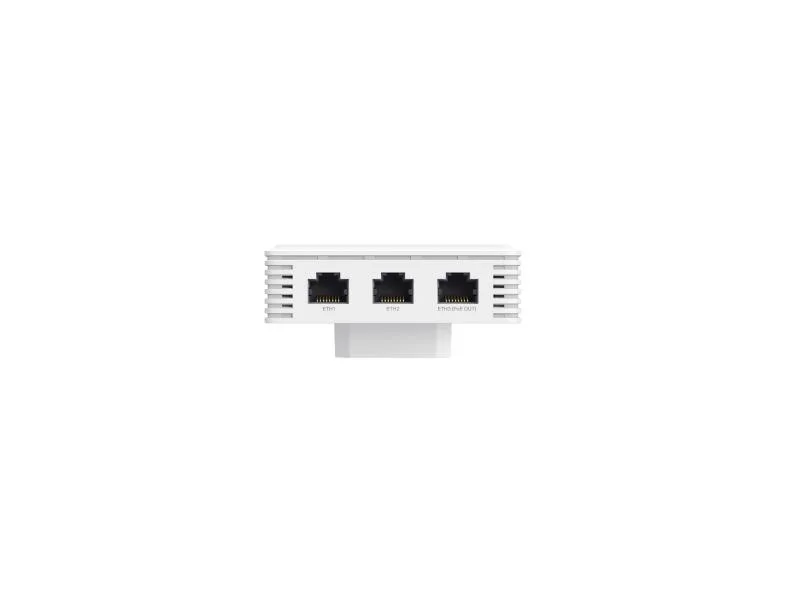

• Downlink:
  • 1 × 2.5G Ethernet Port (PoE pass-through supported)
  • 2 × Gigabit Ethernet Ports

Power

• Power Supply: 802.3at/bt PoE
• PoE Out: Pass-through (Pins 1,2-; 3,6+)
  • Requires 802.3at/bt input
  • 802.3bt required if downstream device exceeds 7W

Power Consumption

• 802.3bt: 17W (PoE Out up to 15.4W)
• 802.3at: 17W (PoE Out up to 7W)

Physical

• Dimensions: 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
• Mounting: Wall mount (screws included)
• Buttons: Reset, LED
• Security Lock: Not supported

Antenna

• 4 × Internal Antennas
  • 2.4 GHz: 2 × 4 dBi
  • 5 GHz: 2 × 5 dBi

Bluetooth

• Version 5.2

Wireless Specifications

Coverage & Capacity

• Coverage Area: Up to 750 ft² (70 m²)
• Concurrent Clients: 250+

Standards

• IEEE 802.11 a/b/g/n/ac/ax/be (Wi-Fi 7 ready)

Frequency Bands

• 2.4 GHz
• 5 GHz

Maximum Data Rates

• 5 GHz: Up to 4324 Mbps
• 2.4 GHz: Up to 688 Mbps

Transmission Power

• 2.4 GHz: 4–22 dBm
• 5 GHz: 4–22 dBm

Wireless Features

• MLO (Multi-Link Operation)‡
• 4K-QAM‡
• Multi-RUs‡
• 240 MHz Bandwidth‡
• Up to 16 SSIDs (8 per band)
• Seamless Roaming△
• Beamforming
• Band Steering
• Airtime Fairness
• Load Balancing
• QoS (WMM)
• Transmit Power Control
• Automatic Channel Assignment
• Rate Limiting (SSID/Client-based)
• Wireless Scheduling & Reboot Scheduling
• RADIUS Accounting & MAC Authentication
• Wireless Statistics Monitoring
• Static / Dynamic IP Support

Wireless Security

• WPA/WPA2/WPA3 – Personal & Enterprise
• Captive Portal Authentication△
• MAC Address Filtering
• Wireless Client Isolation
• VLAN Support
• Rogue AP Detection
• Access Control

Management & Control

Platform Support

• Omada App: Yes
• Cloud Access: Yes (requires Omada Controller)

Centralized Management Options

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

Management Features

• Zero-Touch Provisioning (via Omada Cloud)
• Multi-site Management
• L3 Management
• Management VLAN

Monitoring & Access

• SNMP (v1, v2c, v3)
• SSH Access
• Web-based Management
• System Logging (Local & Remote Syslog)
• Email Alerts
• LED On/Off Control
• MAC Access Control (Management)

Environmental & System Requirements

Operating Conditions

• Operating Temperature: 0–40°C (32–104°F)
• Storage Temperature: -40–70°C (-40–158°F)
• Operating Humidity: 10–90% RH (non-condensing)
• Storage Humidity: 5–90% RH (non-condensing)

System Compatibility

• Windows (XP → 11)
• Linux

Certifications

• CE
• RoHS

Package Contents

• EAP725-Wall Access Point
• Installation Guide
• Mounting Screws

Notes

• ‡ Feature availability may depend on firmware and client device support
• △ Requires compatible controller and environment for full functionality
