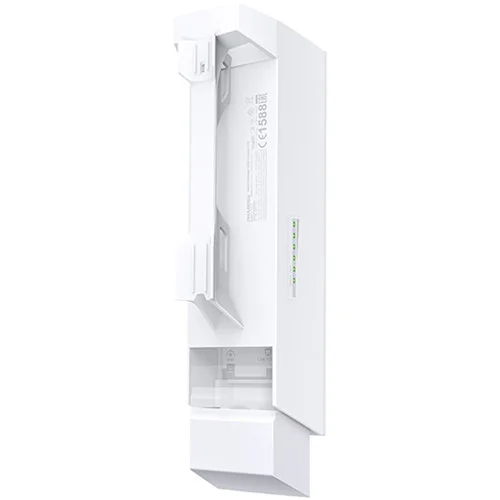

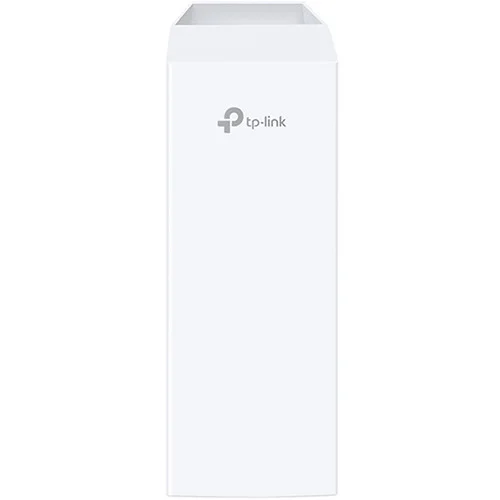

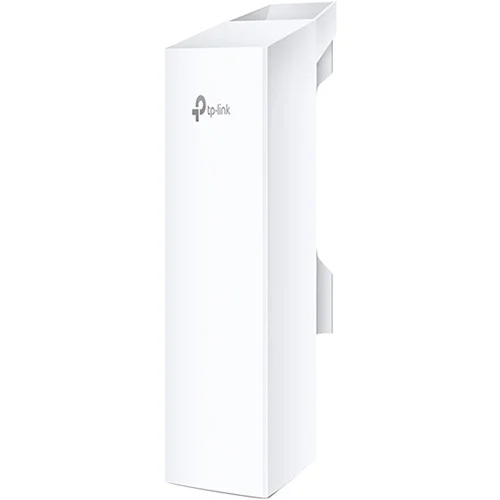

Whether using this device as a point to multi-point link or as an access point, the CPE210 2.4 GHz N-300 9 dBi Outdoor Customer-Premises Equipment from TP-Link is capable of enhancing network performance and coverage. This CPE features a weatherproof enclosure complete with 15 KV ESD protection and 6,000 V lightning protection allowing it to withstand some of the harshest weather conditions.
The enclosure is composed of outdoor ASA stabilized plastic and carries the IPX5 waterproof certification. Underneath the sturdy shell you will find one Fast Ethernet Passive PoE input eliminating the need for an additional PoE adapter. You will also find one grounding terminal for added protection against lightning strikes.
Once installed, you can take advantage of IEEE 802.11b/g/n networking standards to connect nearly any Wi-Fi enabled device to the Internet. The CPE operates on the 2.4 GHz routing frequency supporting a maximum data transfer rate of up to 300 Mbps with a transmit power of up to 27 dBm. Configure the CPE to suit nearly any networking need with support for AP, client, bridge, repeater, AP router mode, and AP client (WISP client) operation modes.
Built-in 9 dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27 dBm / 500 mw
System-level optimizations for more than 9 mi+ (15 km+) long range wireless transmission
TP-LINK Pharos MAXtream (Time-Division-Multiple-Access) technology improves product throughput, capacity and latency performance, ideal for PTMP applications
Centralized Management System - Pharos Control
AP / Client / Repeater / Bridge / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 200 feet (60 meter) Power over Ethernet deployment and allows the device to be reset remotely
IEEE 802.11b/g/n Wireless Standards
Up to 300 Mbps Wireless Speed
2.4~2.483 GHz Operating Frequency
1 x 10/100 Mbps Ethernet Port
1 x Grounding Terminal
9 dBi Antenna Gain
24 dB Min Cross-pol Isolation
Horizontal / Vertical Polarizations
Enhanced Beamwidth Technology
Key Specs
Wi-Fi
Wi-Fi 4 (802.11n); Single-Band (2.4 GHz) with MU-MIMO Support (2 x 2)
Throughput
300 Mb/s Total
2.4 GHz: 300 Mb/s
Inputs/Outputs
1x RJ45 10/100 Mb/s Ethernet PoE (15.4 W, 802.3af)
Wireless
Wi-Fi
Wi-Fi 4 (802.11n); Single-Band (2.4 GHz) with MU-MIMO Support (2 x 2)
Number of Antennas
1
Sensitivity
-76 to -96 dBm
Antenna Gain
9 dBi
Transmit Power
26 to 27 dBm
Supported Protocols
MAC Filtering
SSID
Antenna Placement
Internal
Cellular Support
No
Performance
Throughput
300 Mb/s Total
2.4 GHz: 300 Mb/s
Interface
Inputs/Outputs
1x RJ45 10/100 Mb/s Ethernet PoE (15.4 W, 802.3af)
USB Sharing Support
No
Security
Guest Network Support
No
Wireless Security
WEP, WPA, WPA2
VPN Protocol
No
Firewall Support
No
Hardware
RAM
64 MB
Storage Capacity
8 MB
Supported IEEE Standards
802.11b, 802.11g, 802.11n
Electrical
Power Consumption
10.5 W
General
Environmental Resistance
Water-Resistant (IPX5)
Certifications
FCC
Operating Conditions
-22 to 158°F / -30 to 70°C at 10 to 90% Humidity
Storage Conditions
-40 to 158°F / -40 to 70°C at 5 to 95% Humidity
Dimensions
8.8 x 3.1 x 2.4" / 224 x 79 x 60 mm
Packaging Info
Package Weight
1.5 lb
Box Dimensions (LxWxH)
10.7 x 5.3 x 4.15"
