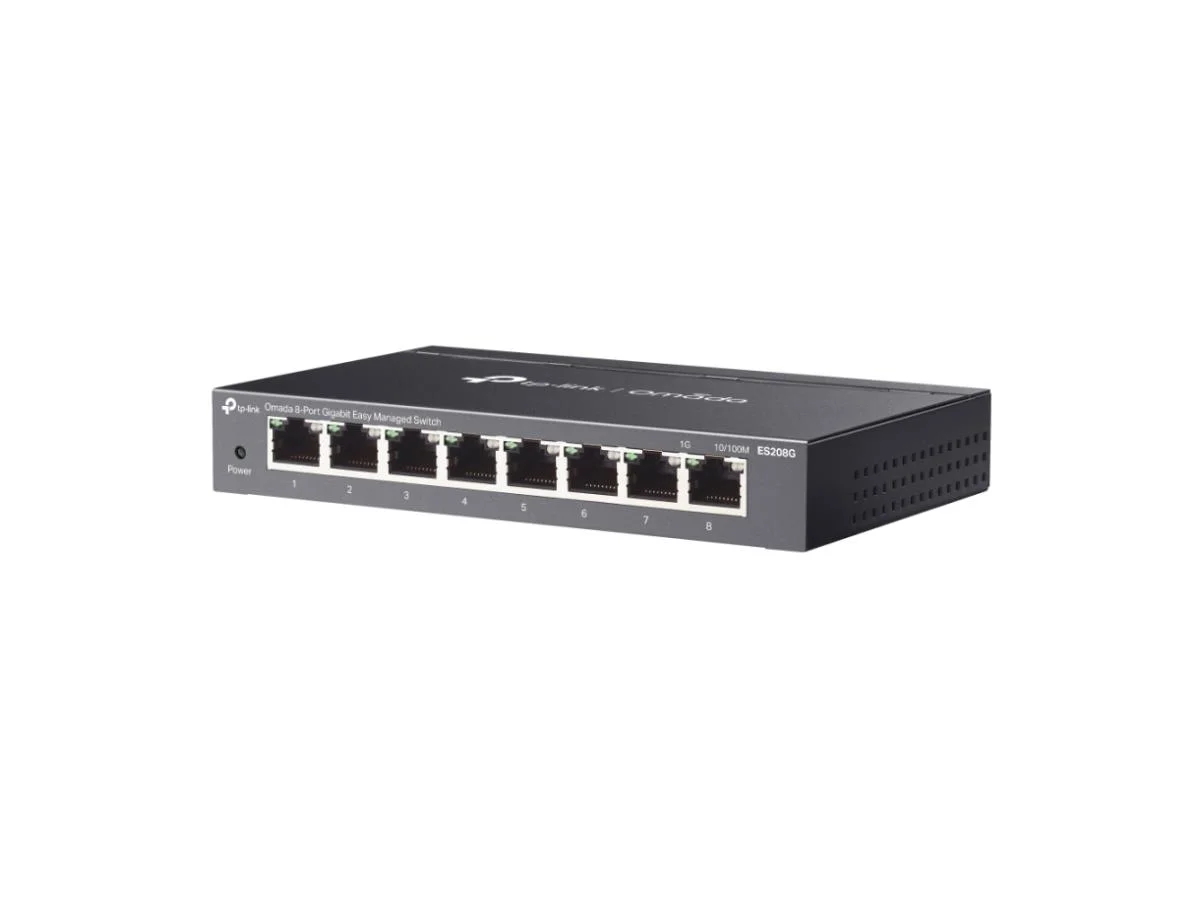

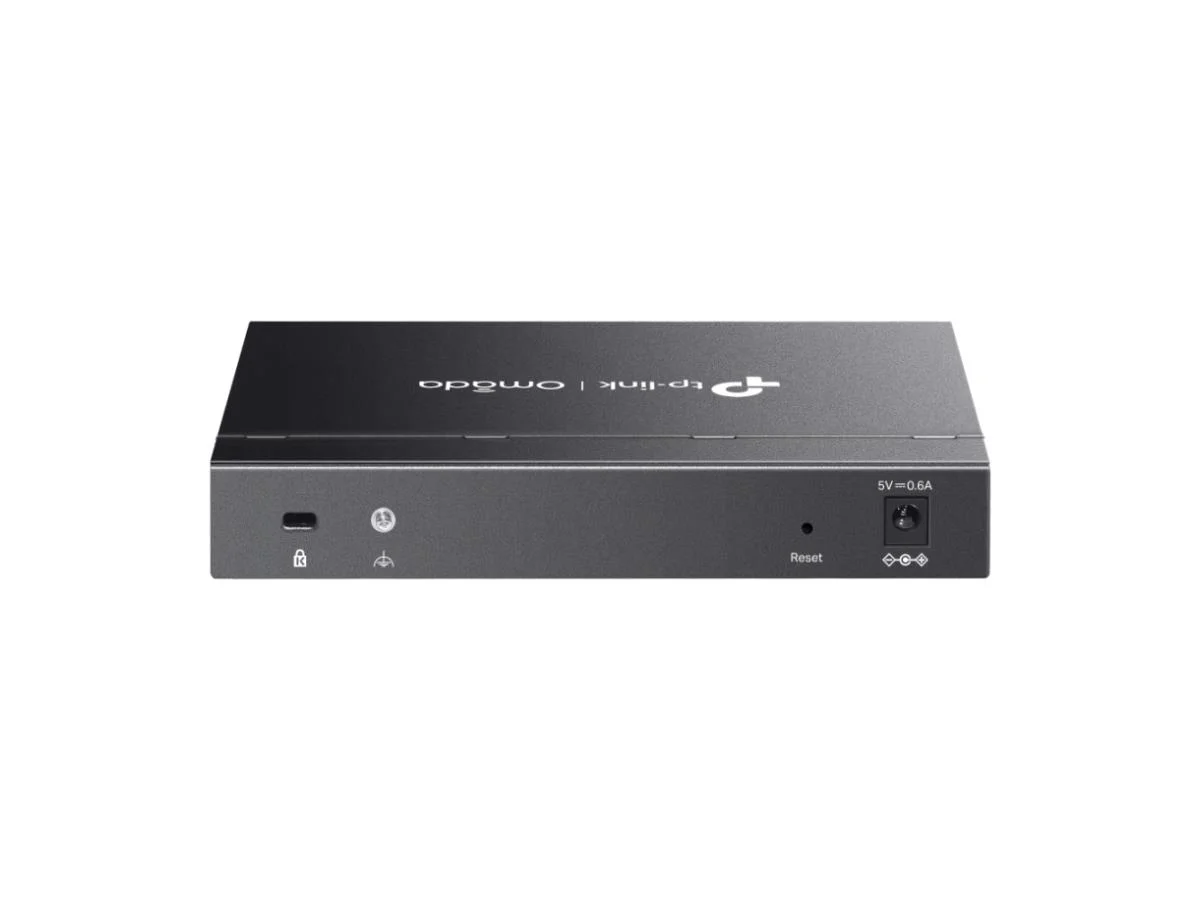

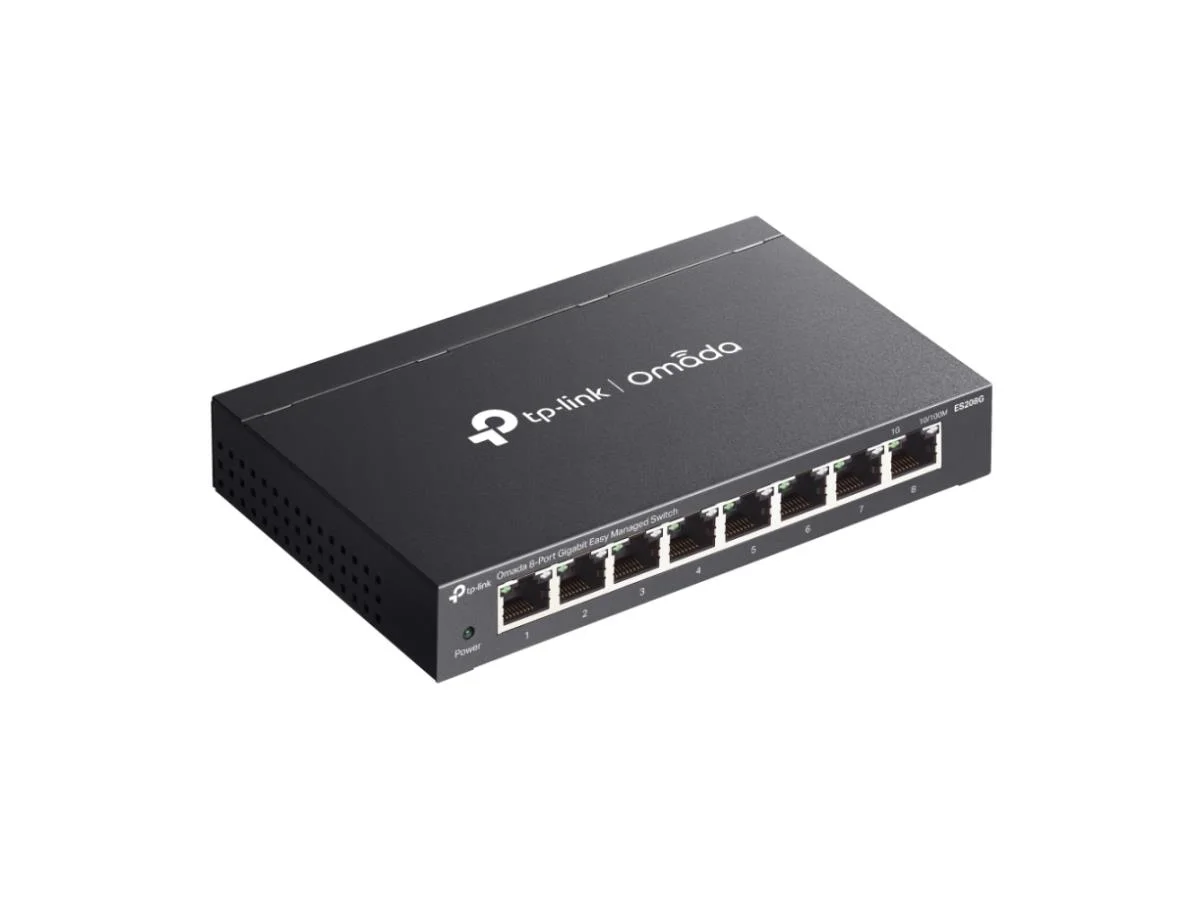

TP-LINK OMADA 8-PORT GIGABIT EASY MANAGED SWITCH PORT: 8 GIGABIT RJ45 PORTS SPEC: DESKTOP STEEL CASE AND FANLESS FEATURE: CENTRALIZED MANAGEMENT - ES208G

General Information

• Brand: TP-Link Omada
• Model: ES208G
• Device Type: Network Switch
• Form Factor: Desktop (Wall-mountable)
• Connectivity Technology: Wired
• Data Link Protocol: Gigabit Ethernet
• UNSPSC Code: 43222612
• Country of Origin (COO): Taiwan / China

Ports & Interfaces

• Total Ports: 8
• Interfaces: 8 × 10/100/1000 Mbps RJ45
• Port Type: 10/100/1000BASE-T

Performance

• Data Transfer Rate: 1 Gbps
• MAC Address Table Size: 8K
• Jumbo Frame Support: Up to 15 KB
• MTBF: 1,141,726 hours @ 25°C

Networking & Management

• Management Type: Easy Managed / Cloud Managed
• Remote Management Protocols: DHCP, VLAN
• Supported Standards:
  • IEEE 802.1p (QoS)
  • IEEE 802.3x (Flow Control)
  • IEEE 802.1ab (LLDP)
  • IEEE 802.1Q (VLAN)

Key Features

• Plug-and-play setup for instant deployment
• Centralized cloud management via Omada web interface or mobile app
• VLAN, Port Isolation, QoS, and Cable Test for optimized network control
• Automatic loop prevention and IGMP snooping
• Fanless design for silent operation
• Durable metal housing with desktop or wall-mount options

Power

• Input Voltage: 5V
• Power Type: External Power Supply
• Max Power Consumption: 2.7W
• PoE Support: No
• PoE Power Consumption: None

Physical Specifications

• Width: 6.2 in
• Depth: 4 in
• Height: 1 in
• Status Indicators: Yes

Environmental Conditions

• Operating Temperature: -5°C to 45°C
• Storage Temperature: -40°C to 70°C

What’s Included

• ES208G Switch
• Power Adapter
• Rubber Feet
• Installation Guide
