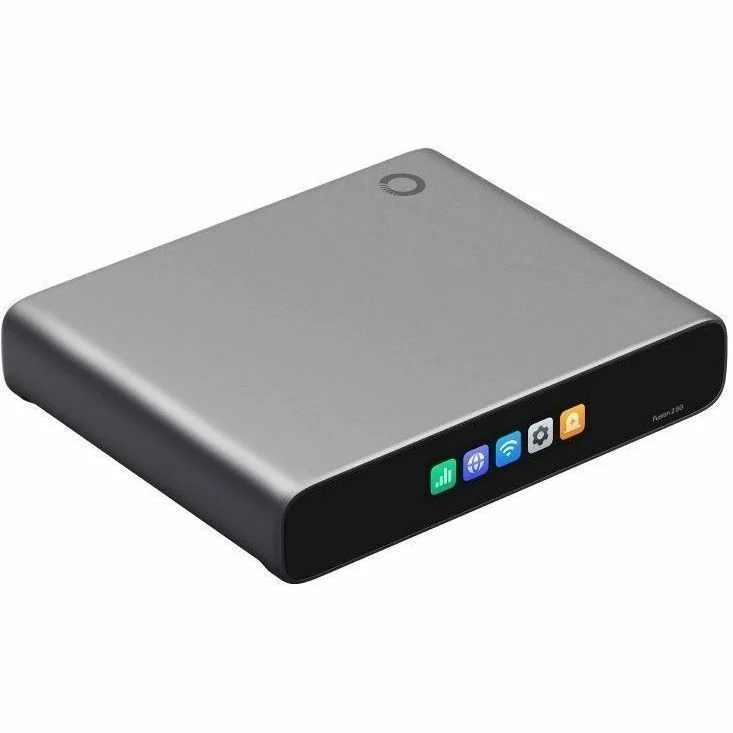

Gateway and controller integrated into a single device, delivering a unified solution that combines networking and centralized management at the core of the Omada networking ecosystem-improving the installation and management experience.
.webp)
.webp)
.webp)
# of #
| Overview | |
|---|---|
| Built-In Omada Applications | Network Application |
| Managed Omada Devices | Recommended for up to 30 devices§ |
| Client Capacity | Recommended for up to 300 connected clients§ |
| Interface | • 1× 2.5G RJ45 WAN port • 4× 2.5G RJ45 LAN/WAN ports • Up to 4 simultaneous WAN ports |
| IPS Throughput | 2,183 Mbps |
| Site-to-Site VPN Throughput | 1,023 Mbps† |
| Management | Cloud, local, and Omada App management |
| Mounting | • Desktop • Wall-mount (magnetic-mount plate sold separately) • Rack-mount (rackmount kit sold separately) |
| Dimensions | 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm) |
| Built-in Omada Controller§ | |
|---|---|
| Cloud Access | √ |
| Local Management | √ |
| Omada App | √ |
| Multi-Site Management | Via the Omada Cloud Management Platform |
| Restore & Backup | √ |
| Automatic Device Discovery | √ |
| Network Topology | √ |
| Dashboard | √ |
| Device List / Client List | √ |
| Logs / Alerts / Events | √ |
| Batch Firmware Upgrade | √ |
| Health Monitoring | √ |
| Internet Activity | √ |
| Captive Portal | √ |
| RADIUS / LDAP Authentication | √ |
| 802.1X Authentication | √ |
| OUI-Based VLAN | √ |
| Diagnostics Tools | Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring |
| SNMP | v1/v2c/v3 |
| SECURITY | |
|---|---|
| IDS/IPS | √ |
| DPI | √ |
| Application-Based ACL | √ |
| Content Filtering | √ |
| Ad Blocker | √ |
| Safe Search | √ |
| DNS Security | √ |
| Firewall | √ |
| Attack Defense | √ |
| ARP Inspection | √ |
| VPN & SD-WAN | |
|---|---|
| Omada LightLink VPN | √ |
| Site-to-Site VPN | WireGuard VPN / IPsec VPN |
| VPN Server | WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN |
| VPN Client | WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN |
| SD-WAN | Full Mesh Mode |
| VPN Throughput | • Omada LightLink VPN: 527 Mbps • IPsec VPN: 1,023 Mbps • WireGuard VPN: 605 Mbps • OpenVPN: 223 Mbps • L2TP VPN: 892 Mbps • PPTP VPN: 193 Mbps • SSL VPN: 250 Mbps |
| Networking | |
|---|---|
| WAN Connection | Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite |
| Multi-WAN Failover & Load Balancing | √ |
| DHCP Server | √ |
| VLAN Segmentation | √ |
| Bandwidth Control | √ |
| QoS | √ |
| Static Routing | √ |
| Policy Routing | √ |
| NAT | Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT |
| Dynamic DNS | TP-Link DDNS, 3rd-party DDNS, custom DDNS |
| IPv6 | Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode |
| Bonjour / mDNS | √ |
| IGMP v2/v3 Proxy | √ |
| HARDWARE | |
|---|---|
| Touchscreen | 2.51-inch color LCM touchscreen |
| Button | Reset button |
| Memory | 2 GB DDR4 |
| Power Supply | USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output |
| Max Power Consumption | 8.18 W, with power adapter |
| Enclosure | Polycarbonate |
| LED | Ethernet |
| Fan | Fanless |
| Net Weight | 1.12 lb (510 g) |
| Surge Protection | 4 kV surge protection |
| ESD Protection | ±8 kV (Air), ±4 kV (Contact) |
| Onboarding | Bluetooth or Ethernet |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C) • Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C) • Operating Humidity: 10% to 90% RH, non-condensing • Storage Humidity: 5% to 90% RH, non-condensing |
