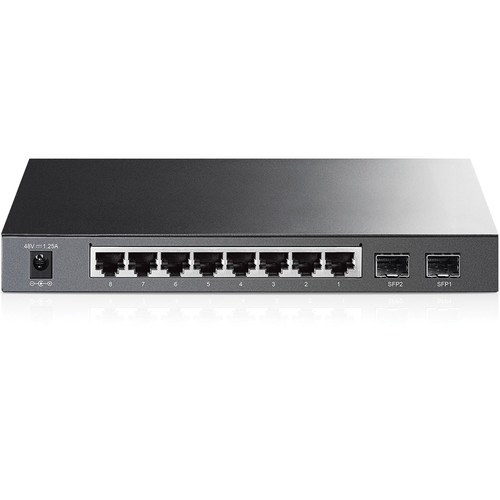

The TL-SG2210P 8-Port Gigabit PoE Smart Switch with 2 SFP Slots from TP-Link is designed for small and medium business networks that require high connectivity, functionality, and performance. This switch can be configured to meet multiple needs and provides you with 8 Gigabit Ethernet ports that support network traffic at speeds up to 1000 Mbps. Also supported is 802.3af-compliant Power over Ethernet (PoE) up to 53W. PoE passes electrical power along with data on Ethernet cabling, allowing a single cable to provide a data connection and electrical power to devices such as wireless access points or IP cameras.
# of #
| Inputs/Outputs | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1) 2 x 10/100/1000 Mb/s Gigabit SFP |
Protocols
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping |
| Queuing | Strict Priority, Weighted Round Robin (WRR) |
| Jumbo Frames Support | 9,216 Bytes |
| MAC Address Table Size | 8K |
| VLAN Groups | 512 |
| VLAN IDs | 4000 |
Security
| Security Features | Storm Control |
Standards
| Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3af, 802.3i, 802.3u, 802.3x, 802.3z |
Performance
| Forwarding Rate | 14.9 Mpps |
| Switching Bandwidth | 20 Gb/s |
| Priority Queues | 4 |
| Packet Buffer | 512 Kb |
Computer
| OS Compatibility | Windows XP or Later macOS Linux UNIX *As of May, 2018: Check with manufacturer for the most up-to-date compatibility |
Electrical
| Power Draw | 10.4 W (Active) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 63.4 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Storage Humidity | 5 to 90% |
General
| Certifications | RoHS *as per Manufacturer |
| Cooling System | Passive |
| Dimensions | 8.2 x 4.9 x 1" / 20.9 x 12.6 x 2.6 cm |
