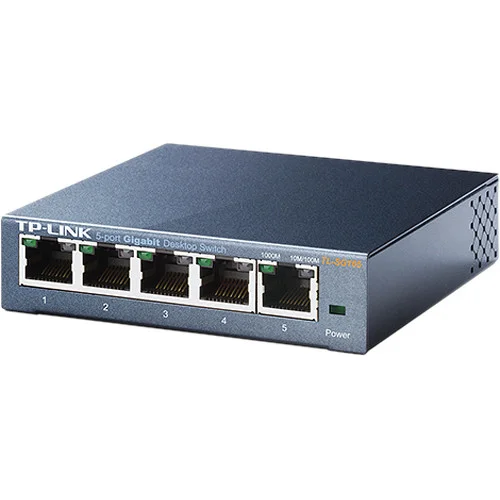

Connect a variety of Ethernet-enabled devices to your existing wired network with the TL-SG105 5-Port Desktop Switch from TP-Link. Equipped with 5 Gigabit Ethernet ports, this unmanaged switch is compatible with IEEE 802.3ab, 802.3x, 802.3u, and 802.3i networking standards. Support for 802.1p helps to prioritize latency-sensitive traffic such as voice, video, and gaming, while IGMP snooping helps optimize multicast traffic.
# of #
| Stackable | No |
| Supported Protocols | Auto-MDIX/MDI IGMP Snooping |
| Jumbo Frames Support | 16,000 Bytes |
| MAC Address Table Size | 2K |
| Forwarding Rate | 7.4 Mpps |
| Switching Bandwidth | 10 Gb/s |
| Packet Buffer | 1 Mb |
| Power Draw | 2.3 W |
| Input Power | 220 VAC, 50 Hz 5 VDC at 0.6 A |
| Power Supply Type | External |
| Certifications | CE, FCC, RoHS |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 90% Humidity |
| Storage Conditions | -40 to 158°F / -40 to 70°C at 5 to 90% Humidity |
| Noise Level | 0.0 dB |
| Cooling System | Passive |
| Material of Construction | Steel |
| Indicator Lights | Yes |
| Rack Mountable | No |
| Dimensions | 3.9 x 3.9 x 1" / 9.9 x 9.9 x 2.5 cm |
