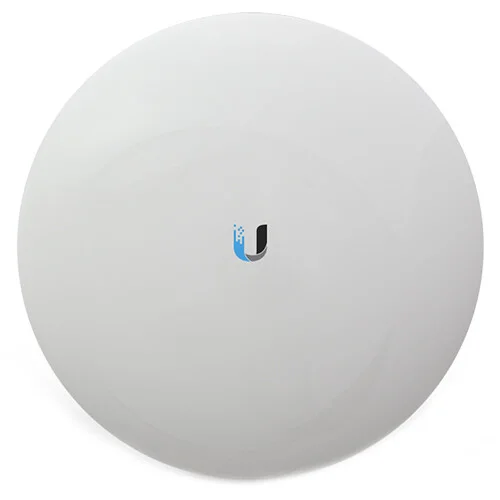

Ubiquiti Nano Beam 5GHZ AC Gen2

With tighter beamwidth, the NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE with Dedicated Management Radio from Ubiquiti Networks offers a more reliable long-distance point-to-point connection. Boasting a maximum throughput of up to 450 Mb/s over the 5 GHz band with a range of up to 6.2 miles, this NanoBeam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals while offering up to 19 dBi gain. Setup is simple, as the NanoBeam can be mounted to a pole (kit included) or to the wall and aligned using its own 3-axis mount to ensure it is level.

# of #

$169.95

Sold and Shipped By:

Availability

Head Office and Technical Facility 1
Barrie Store 0
Orillia Store 0
Midland Store 0

Quick Specs

  • Dedicated Wi-Fi Radio for Management
  • Throughput: 450+ Mb/s
  • Atheros MIPS 74Kc, 720 MHz Processor
  • 128MB DDR2, 8MB Flash Memory

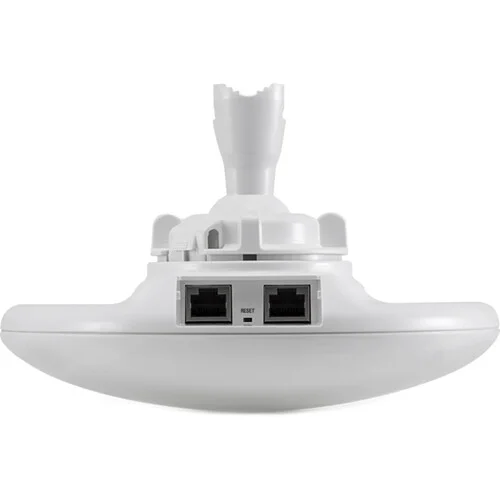

  • 2 x 10/100/1000 Ethernet Ports
  • airOS Software
  • Power/LAN/WLAN LED Indicators
  • Versatile Mounting
  • FCC, IC, CE Approved
  • RoHS Compliant
Wireless
Wireless Frequency
5 GHz
Antenna Gain
19 dBi
Antenna Placement
Internal
Bluetooth
No
Throughput
450 Mb/s Total

Interface
Inputs/Outputs
2x RJ45 Gigabit Ethernet
Management
Mobile App Compatible
No
Hardware
RAM
128 MB
Storage Capacity
8 MB
Processor
Qualcomm Atheros
CPU
Quad-Core: Up to 720 MHz MIPS 74Kc
Electrical
Power Consumption
8.5 W
General
Certifications
CE, FCC, IC, RoHS
Operating Conditions
-40 to 176°F / -40 to 80°C at 5 to 95% Humidity
Mount Options
Pole, Wall
Range
6.2 Miles / 10 km
Dimensions
7.44 x 7.44 x 4.92" / 189 x 189 x 125 mm
Weight
1.17 lb / 0.53 kg
