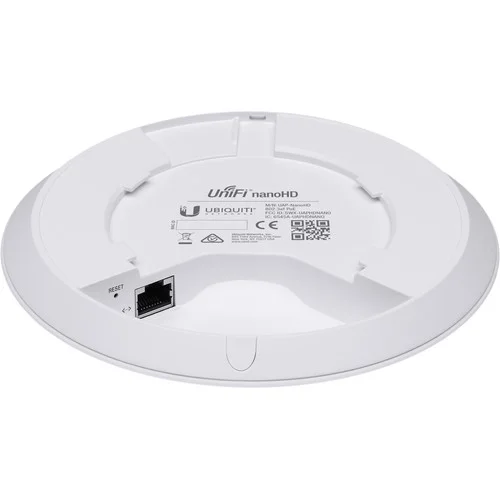

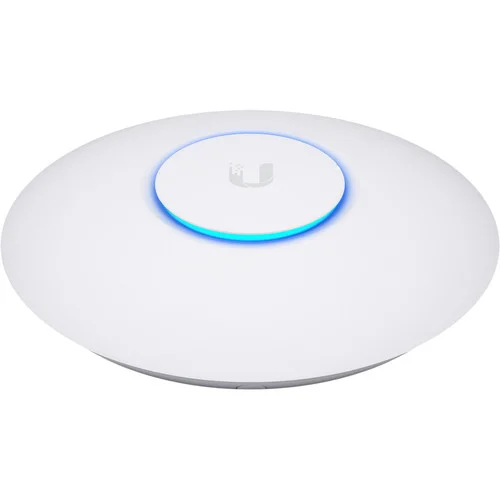

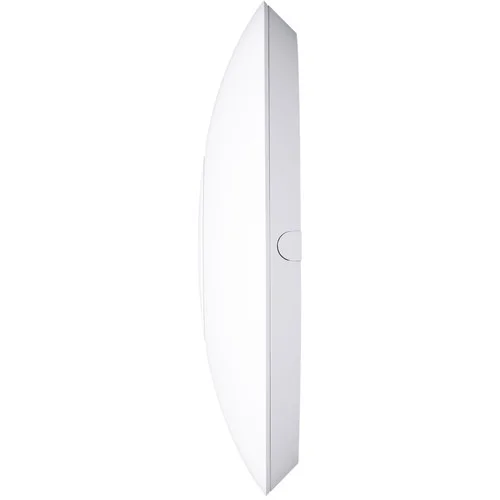

Ubiquiti Networks UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point

Discretely install the UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point from Ubiquiti Networks into nearly any building environment, thanks to the optional skins which come in a variety of designs including camouflage, concrete, marble, wood, black and fabric. This Ubiquiti Networks AP also comes equipped with a single Gigabit Ethernet 802.3af PoE-compliant network port and includes mounting kits for easy installation to either the wall or ceiling.

# of #

$269.95

Sold and Shipped By:

Availability

Head Office and Technical Facility 1
Barrie Store 0
Orillia Store 0
Midland Store 0

Quick Specs

  • 802.11ac Wave-2 Technology
  • Up to 1733 Mb/s Wi-Fi Data Throughput
  • 4x4 MIMO on the 5 GHz Band
  • 2x2 MIMO on the 2.4 GHz Band
  • 1 x Gigabit Ethernet Port
  • 802.3af PoE Compliant
  • WEP/WPA/WPA2 Wi-Fi Encryption
  • Intuitive UniFi Controller Functionality
  • Low-Profile Mounting
  • Compact Form Factor
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4)
Number of Antennas
2
Antenna Gain
2.8 to 3 dBi
Transmit Power
23 to 26 dBm
Supported Protocols
WMM
Antenna Placement
Internal
Bluetooth
No
Throughput
2000 Mb/s Total
2.4 GHz: 300 Mb/s
5 GHz: 1733 Mb/s
Interface
Inputs/Outputs
1x RJ45 Gigabit Ethernet
Security
Guest Network Support
Yes
Wireless Security
AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2-PSK
Lock Slot
No
Management
Operation Modes
Access Point
Max SSIDs Supported
8
Mobile App Compatible
Yes: Android & iOS
App Name: UniFi
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
Hardware
Media Card Reader
Yes
Supported IEEE Standards
802.11a, 802.11ac, 802.11b, 802.11g, 802.11k, 802.11n, 802.11r, 802.11v
Electrical
DC Input Power
44 to 57 VDC
Power Consumption
10.5 W
General
Certifications
CE, FCC, IC
Mount Options
Wall, Ceiling
Dimensions
6.3 x 6.3 x 1.29" / 160 x 160 x 32.77 mm
Weight
10.6 oz / 300 g
