Ubiquiti UniFi U6-Mesh-Pro Indoor/Outdoor Access Point

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

# of #

Out of stock

Sold and Shipped By:

Availability

Head Office and Technical Facility 0
Barrie Store 0
Orillia Store 0
Midland Store 0

Quick Specs

  • Warranty 1-year
Access Point U6 Mesh Pro
Access Point U6 Mesh Pro
Access Point U6 Mesh Pro
Access Point U6 Mesh Pro
Overview

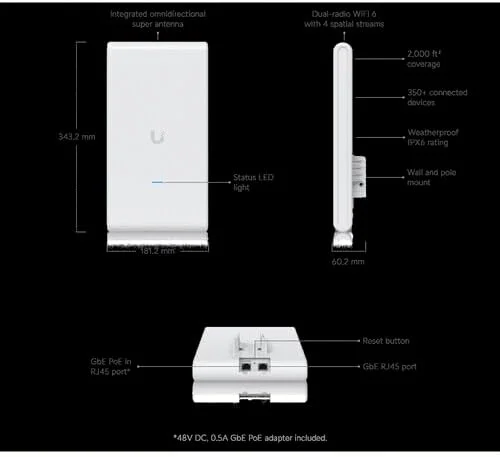

Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
WiFi Standard
WiFi 6
Spatial Streams
4
Coverage Area
185 m² (2,000 ft²)
Max. Client Count
250+
Uplink
GbE

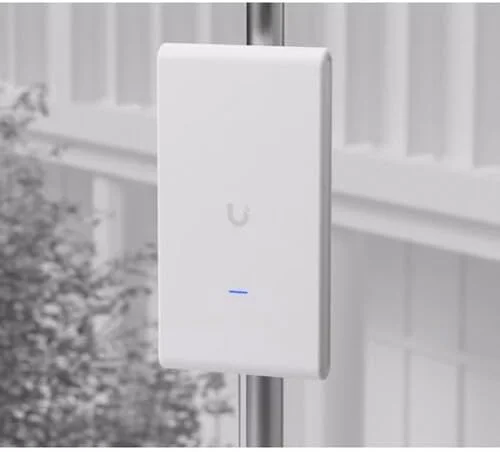

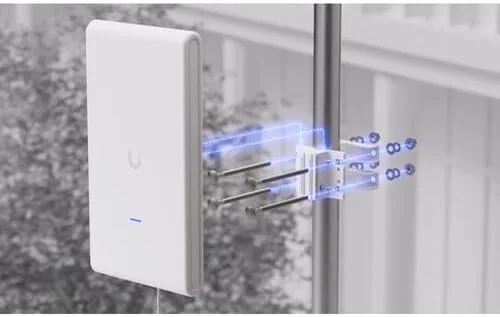

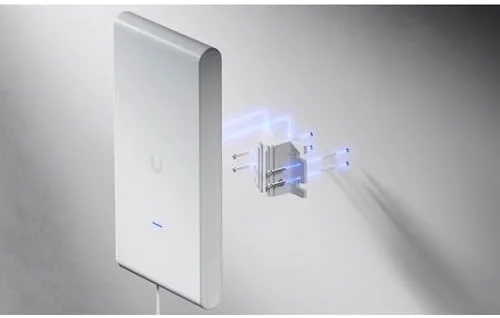

Mounting
Wall, Pole (Mounts Included)
Weatherproofing
IPX6
Power Method
PoE

Performance
MIMO



5 GHz
2 x 2 (DL/UL MU MIMO)


2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate



5 GHz
2.4 Gbps (BW160)


2.4 GHz
573.5 Mbps (BW40)
Antenna Gain



5 GHz
8 dBi


2.4 GHz
8 dBi
Max. TX Power



5 GHz
27 dBm


2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates



802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)


802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)


802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)

Features

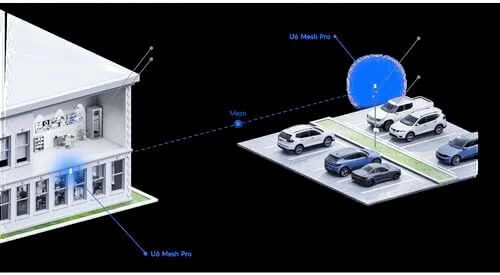

Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal



Custom Branding Landing Page
✓


Voucher Authentication
✓


Payment-Based Authentication
✓


External Portal Server Support
✓


Password Authentication
✓


Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
9W
Includes PoE Adapter
✓
Supported Voltage Range
42.5—57V DC
Networking Interface
(2) GbE RJ45 ports
Weight
819 g (1.8 lb)
Pole Mount Diameter
1–2.5" (25–63.5 mm)
Management
Ethernet WiFi
Enclosure Material
UV-stabilized polycarbonate

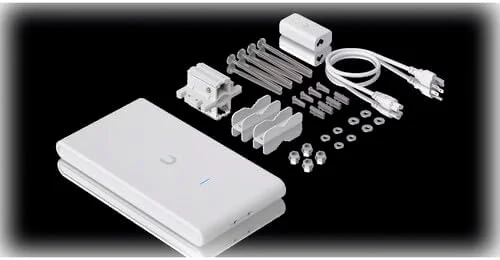

Mount Material
Aluminum alloy, steel
LEDs



System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements



UniFi Network
Version 8.1.127 and later
