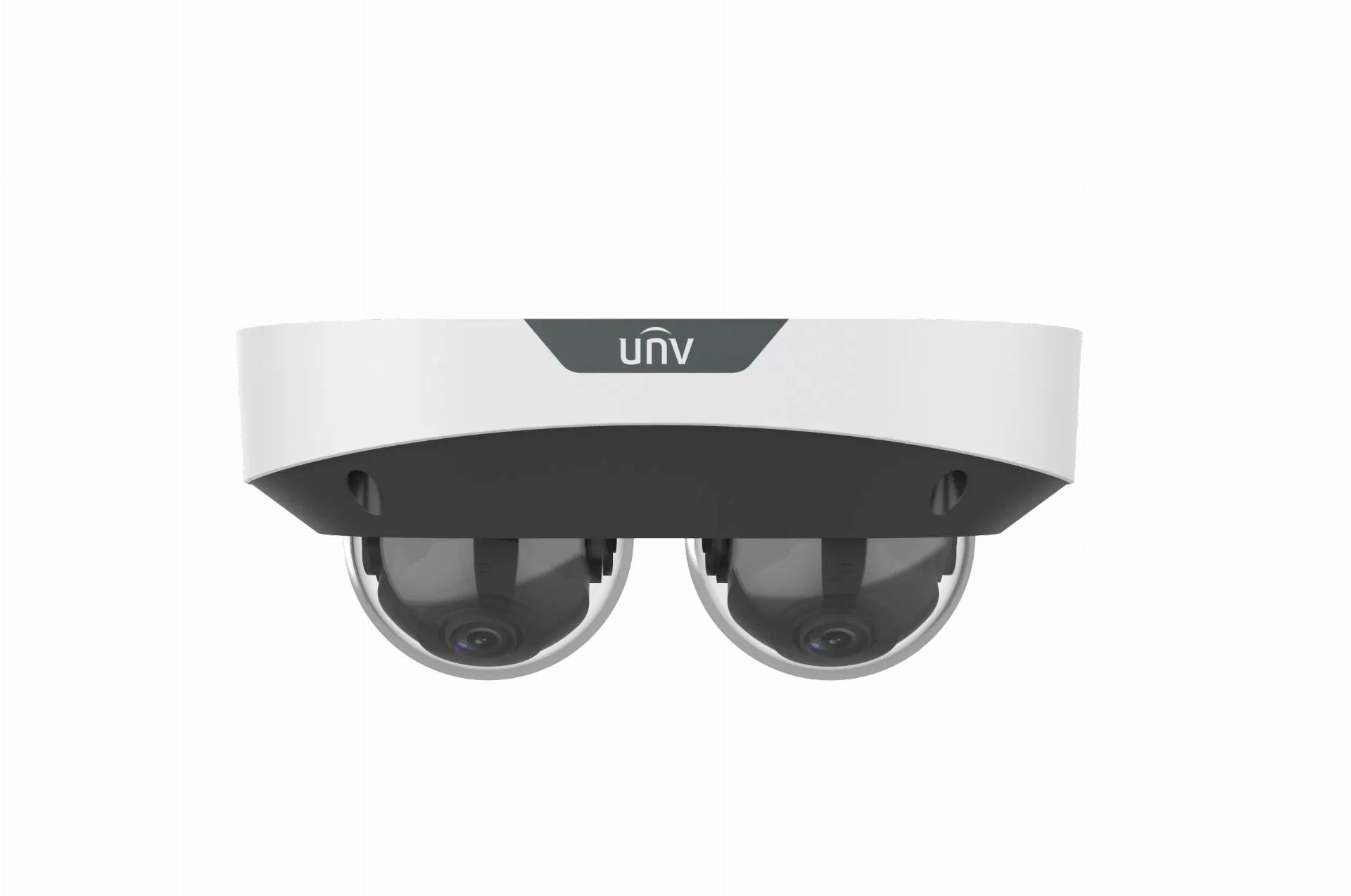

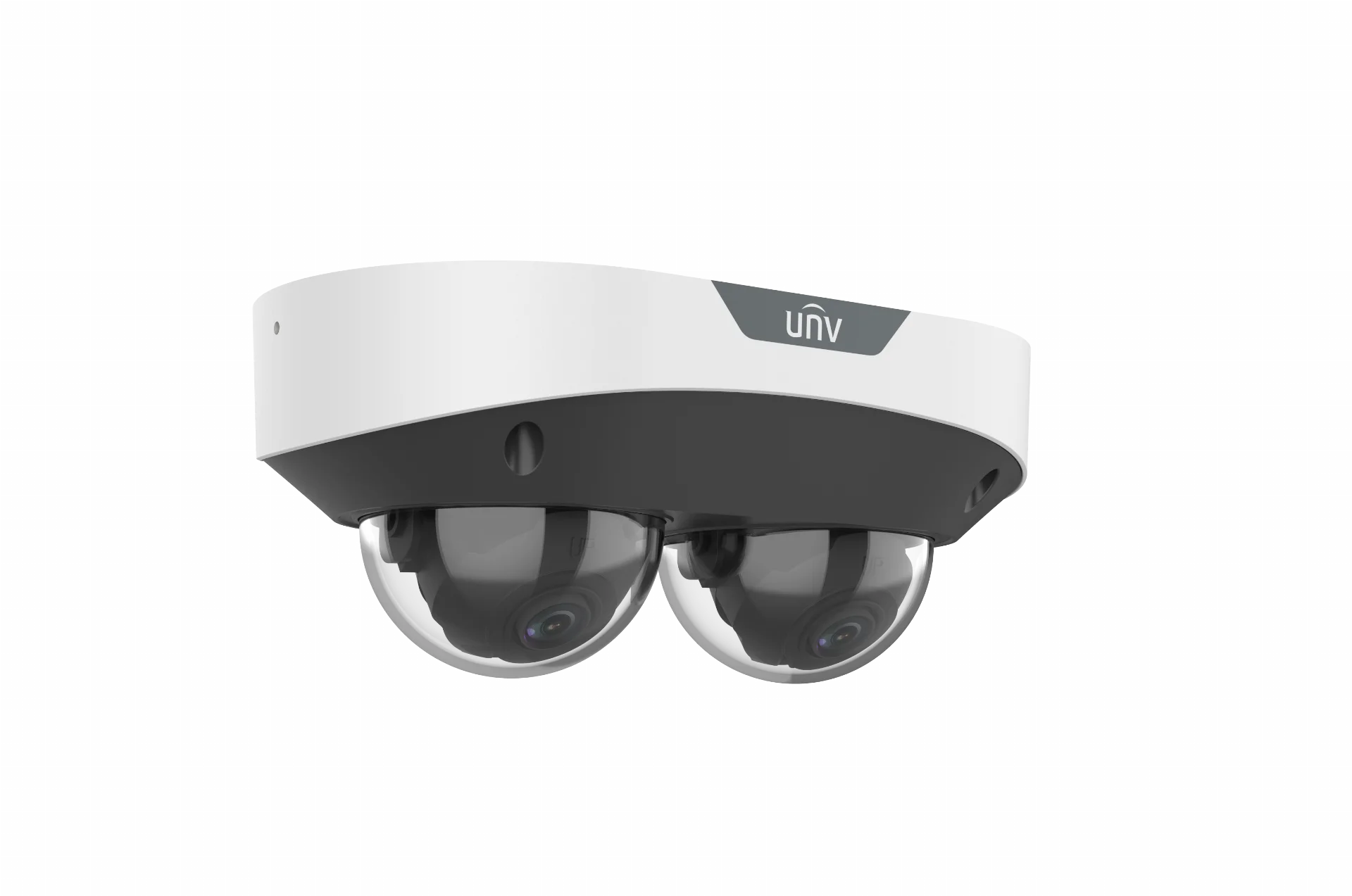

The Uniview IPC3224SS-ADF28K-I1 is an innovative dual-channel 4MP MultiView dome camera that delivers two independent camera views through a single IP address and single network connection. Designed for wide-area monitoring applications, it combines two 4MP image sensors, fixed 2.8mm lenses, and intelligent analytics to provide comprehensive coverage while reducing installation costs and simplifying system design.
Featuring LightHunter low-light technology, 130 dB True WDR, and powerful IR illumination up to 30 metres, the camera provides clear, detailed images in both bright and dark environments. Each channel supports intelligent perimeter protection, while built-in dual microphones, onboard storage, IP67 weather protection, and IK10 vandal resistance make it suitable for demanding indoor and outdoor surveillance applications.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3224SS-ADF28K-I1 |
| Camera Type | 2 × 4MP Dual-Channel Non-Splicing MultiView IR Fixed Dome Network Camera |
| Channels | 2 independent camera channels from a single IP address |
| Image Sensor | 1/3.0" Progressive Scan CMOS (each channel) |
| Maximum Resolution | 2688 × 1520 (4MP) per channel |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 97.68° |
| Vertical Field of View | 52.67° |
| Diagonal Field of View | 102.52° |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >52 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 4MP @ 25/20 fps; 3MP/1080p @ 30/25 fps |
| Video Streams | Dual Stream |
| IR Illumination | Up to 30 m (98 ft) |
| IR Wavelength | 850 nm |
| IR Control | Auto / Manual |
| Audio | Built-in Dual Microphones |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Power Consumption | ≤7 W |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing | Metal |
| Adjustment | Pan: 0°–180°, Tilt: 0°–66°, Rotate: 0°–346° |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Dimensions | Approx. Ø122 × 90 mm |
| Weight | Approx. 0.65 kg |
Additional image and event features:
| Function | Distance |
|---|---|
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
