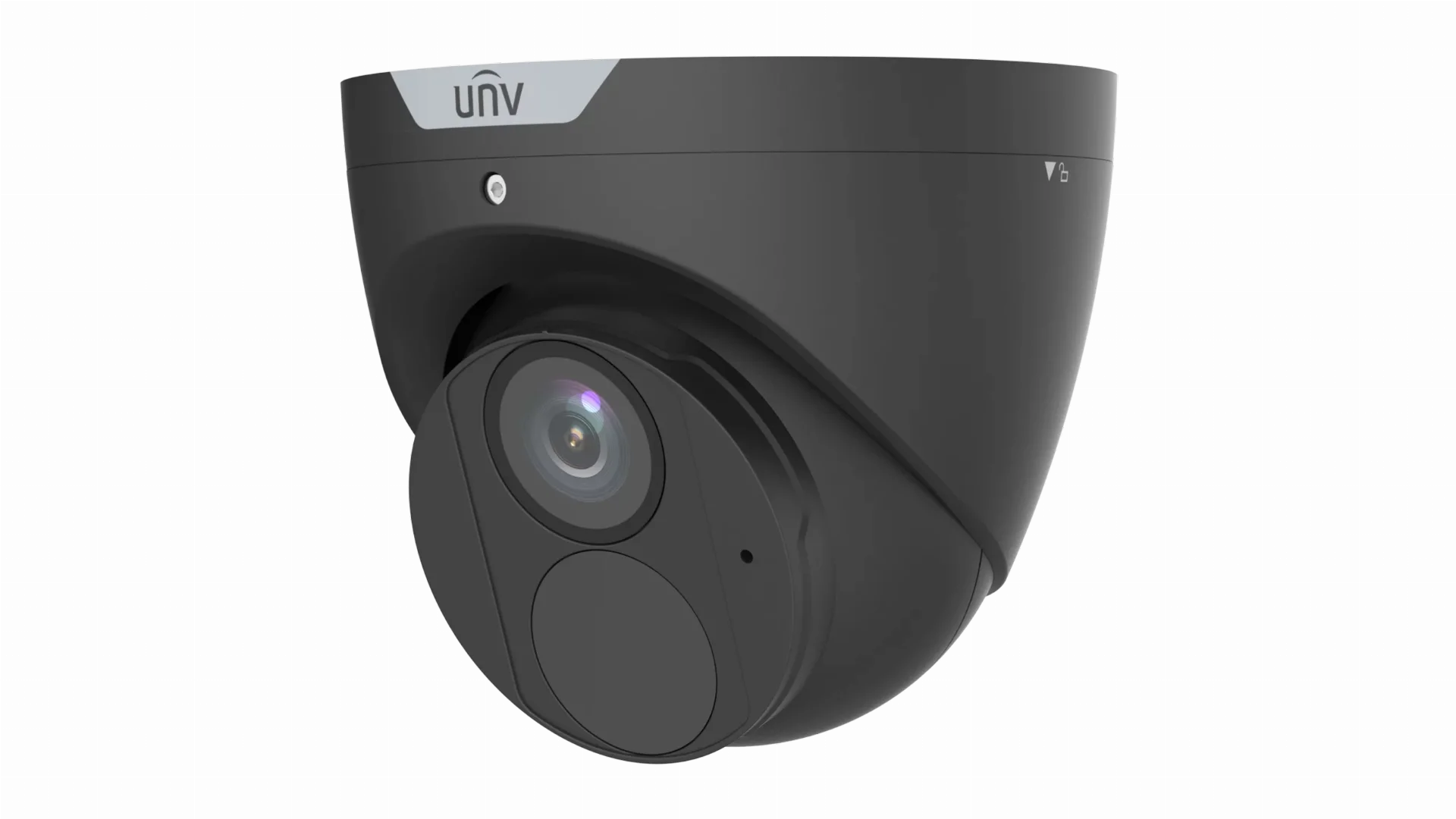

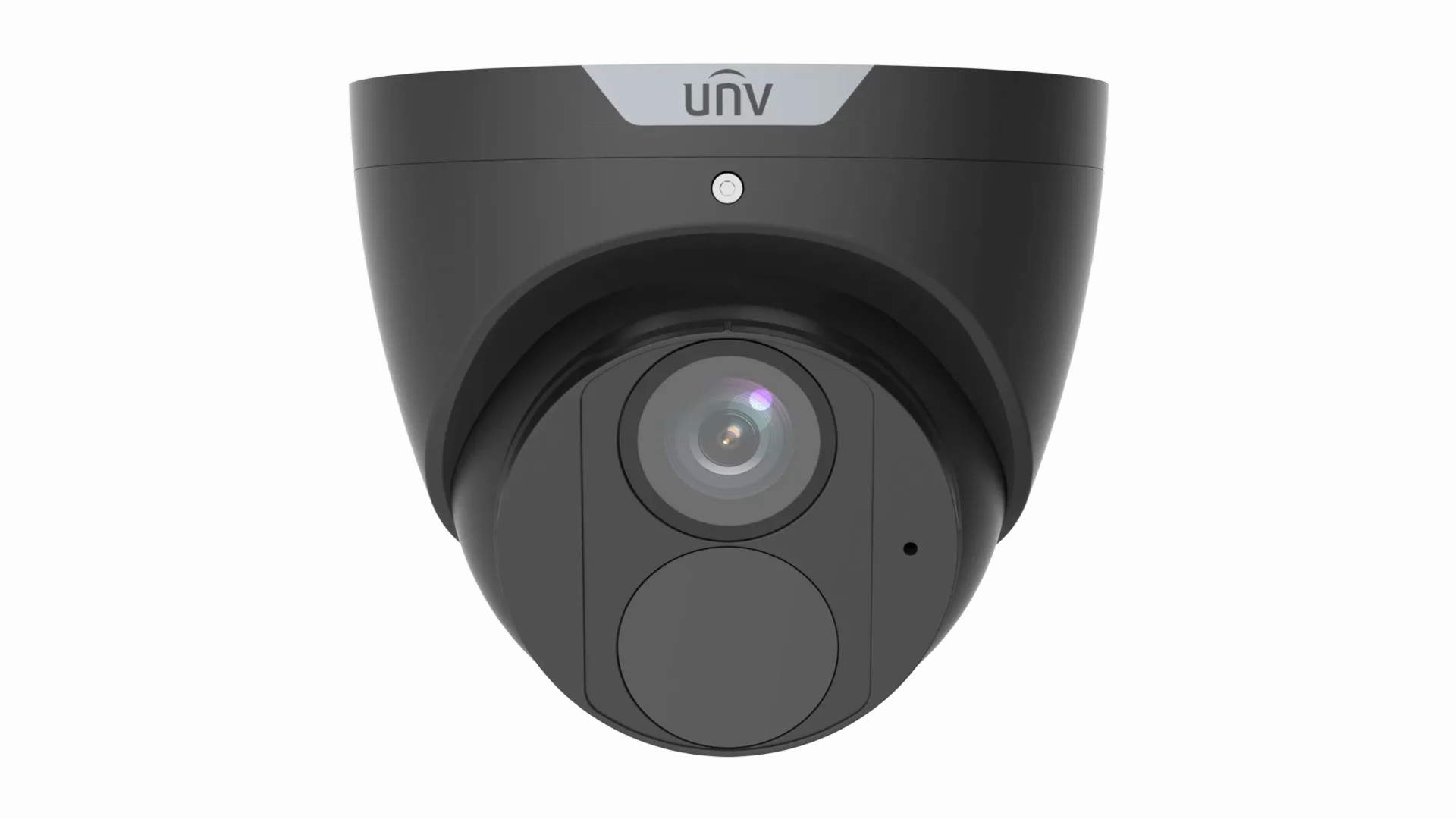

The Uniview IPC3614SR-ADF28KM-H-BK is a compact 4MP HD IR fixed turret network camera designed to provide reliable, high-quality surveillance in residential, commercial, and industrial environments. Featuring a 1/3.0" CMOS sensor, Easystar low-light technology, and 120 dB True WDR, it delivers clear and balanced images in challenging lighting conditions, including low-light and high-contrast scenes.
Equipped with a 2.8mm fixed lens, the camera provides a wide viewing angle for broad area coverage, while Smart IR illumination up to 30 m ensures clear night-time monitoring. The discreet black housing, built-in microphone, microSD card support up to 512 GB, IP67 weather protection, and PoE capability make the IPC3614SR-ADF28KM-H-BK a versatile solution for indoor and outdoor surveillance installations.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3614SR-ADF28KM-H-BK |
| Camera Type | 4MP HD IR Fixed Turret Network Camera (Black Housing) |
| Series | Essential Series |
| Image Sensor | 1/3.0" Progressive Scan CMOS |
| Maximum Resolution | 2688 × 1520 (4MP) |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 97.0° |
| Vertical Field of View | 52.2° |
| Diagonal Field of View | 107.5° |
| Minimum Illumination | Colour: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 120 dB True WDR |
| Signal-to-Noise Ratio | >52 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 4MP @ 30fps |
| Video Streams | Dual Stream |
| Bit Rate | 128 Kbps – 6144 Kbps |
| Smart Encoding | U-Code Supported |
| IR Illumination | Smart IR up to 30 m (98 ft) |
| IR Wavelength | 850 nm |
| Audio | Built-in Microphone |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | ≤5 W |
| Weather Protection | IP67 |
| Housing | Metal, Black Finish |
| Adjustment | Pan: 0°–360°, Tilt: 0°–80°, Rotate: 0°–360° |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Dimensions | Approx. Ø118 × 96 mm |
| Weight | Approx. 0.45 kg |
| Function | Distance |
|---|---|
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
