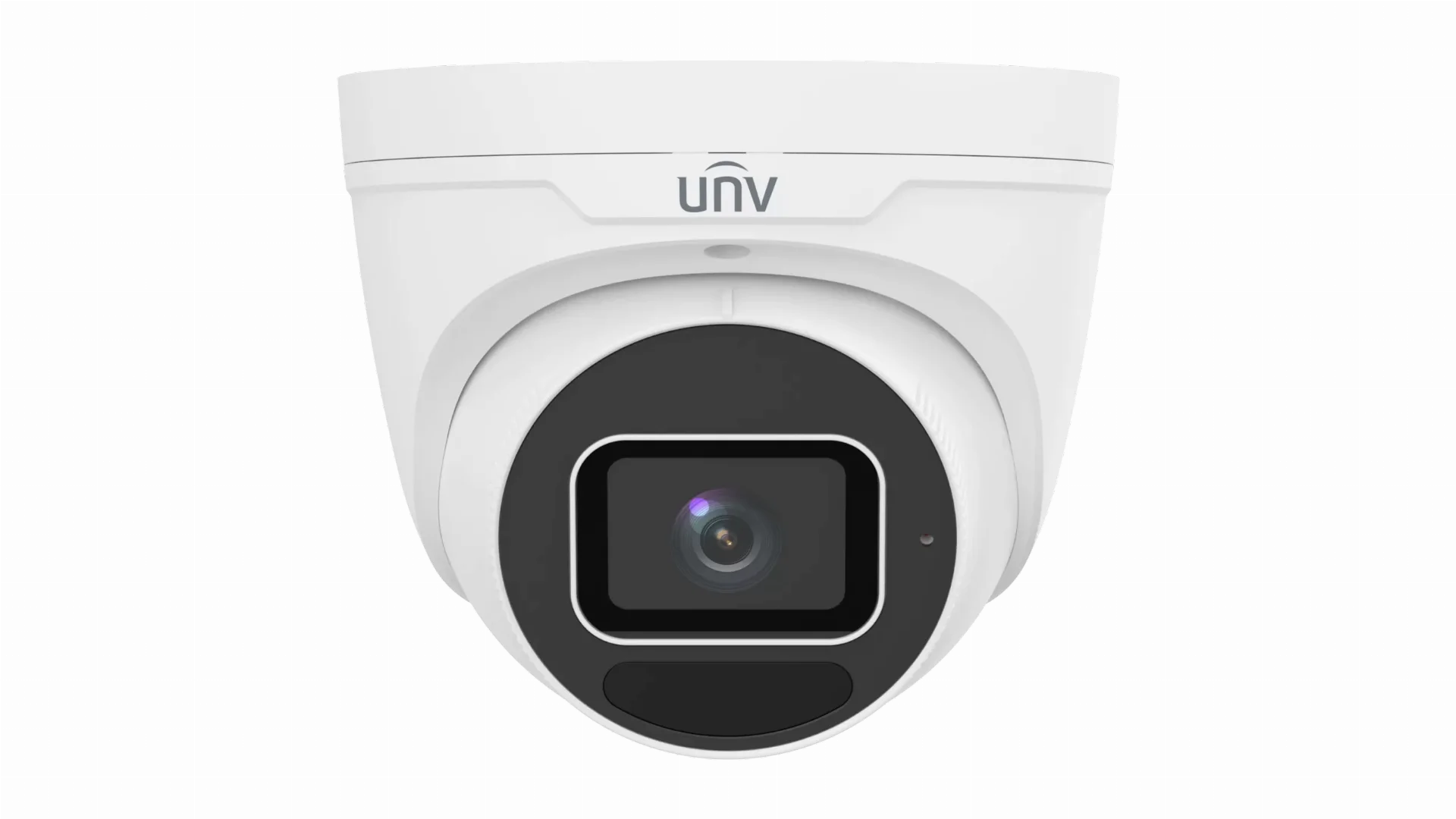

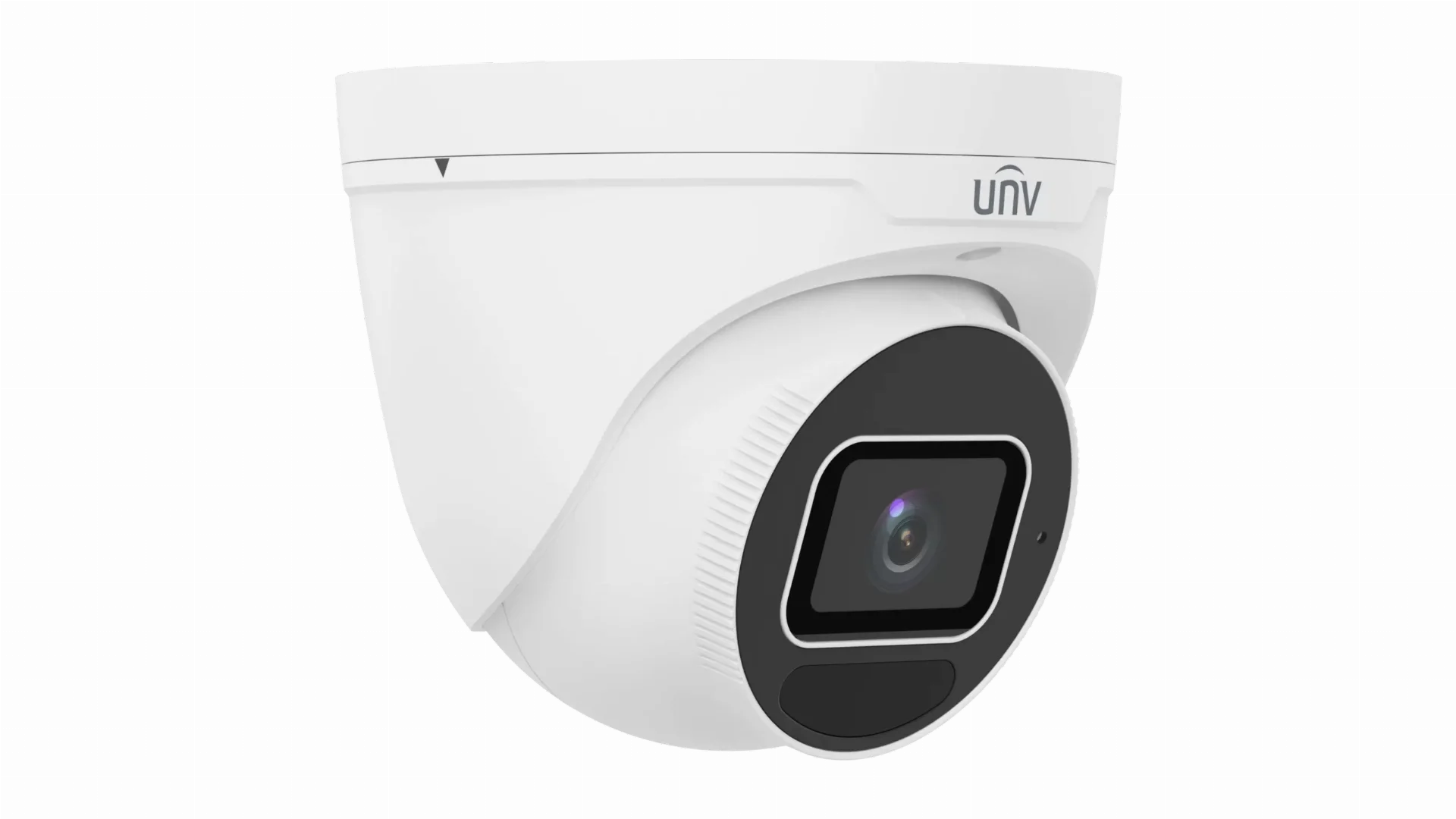

Experience exceptional image quality around the clock with the Uniview IPC3635SS-ADF28K-I1, a 5MP Star Light - LightHunter turret network camera designed for demanding commercial and residential surveillance. Equipped with a high-performance 1/2.7" CMOS sensor, LightHunter low-light technology, and 130 dB True WDR, it delivers outstanding colour images in challenging lighting conditions. The 2.8mm fixed lens provides a wide 110° horizontal field of view, while Smart IR illumination reaches up to 40 metres for clear night-time monitoring. Built-in audio, intelligent AI analytics, onboard edge storage, and an IP67-rated weatherproof housing make this camera an ideal solution for reliable indoor and outdoor security.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3635SS-ADF28K-I1 |
| Camera Type | 5MP LightHunter Fixed IR Turret Network Camera |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 (5MP) |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 110.0° |
| Vertical Field of View | 58.7° |
| Diagonal Field of View | 130° |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >56 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 5MP @ 30fps |
| Video Streams | Triple Stream |
| Bit Rate | 128 Kbps – 16 Mbps |
| Smart Encoding | U-Code Supported |
| IR Range | Up to 40 m (131 ft) Smart IR |
| IR Wavelength | 850 nm |
| Audio | Built-in Microphone |
| Audio I/O | 1 Input / 1 Output |
| Alarm I/O | 1 Input / 1 Output |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | ≤6.0 W |
| Weather Protection | IP67 |
| Housing Material | Metal |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Dimensions | Ø129 × 110 mm (Ø × H) |
| Weight | Approx. 0.66 kg |
| Function | Distance |
|---|---|
| Detect | 63.0 m |
| Observe | 25.2 m |
| Recognize | 12.6 m |
| Identify | 6.3 m |
