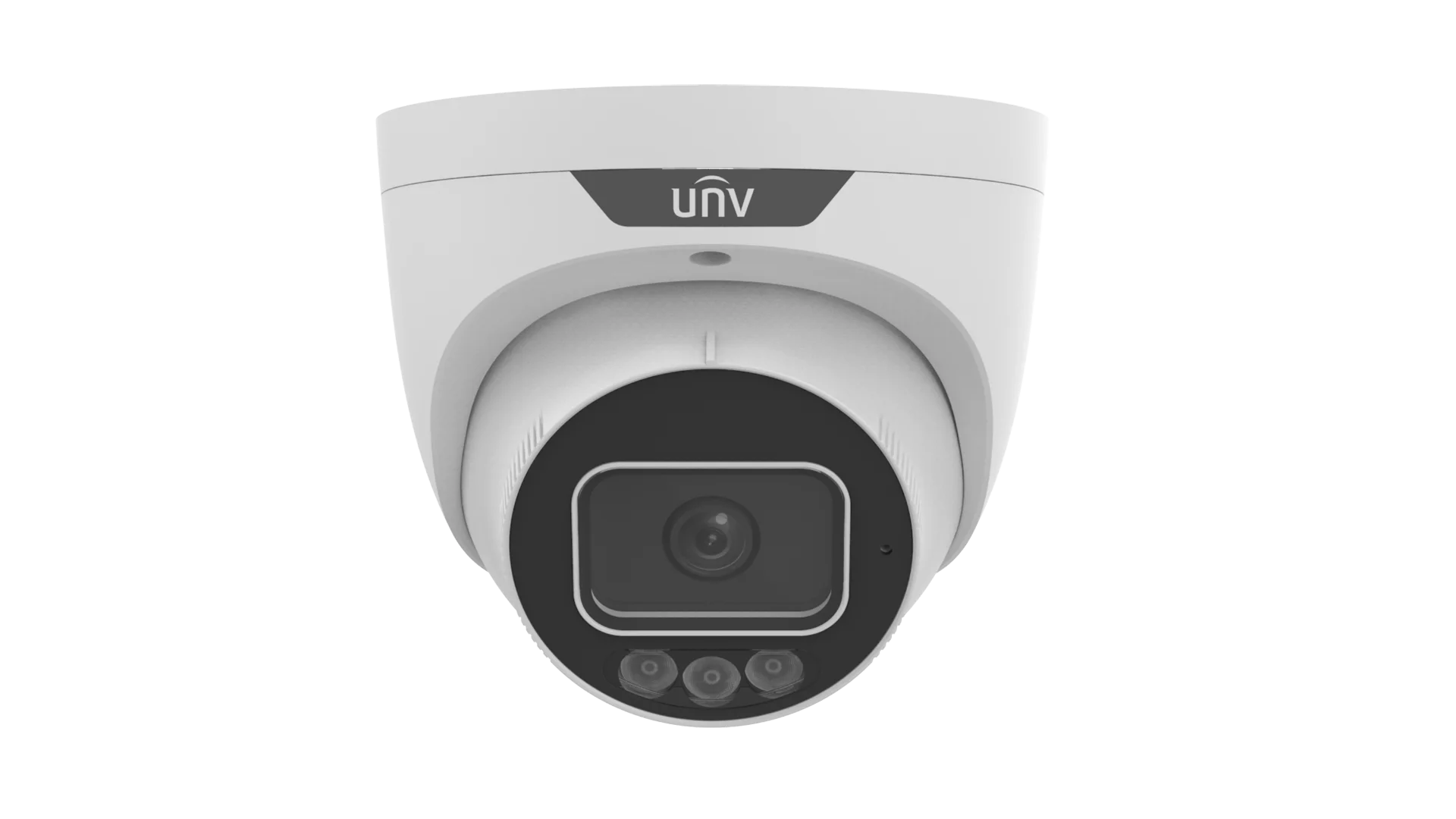

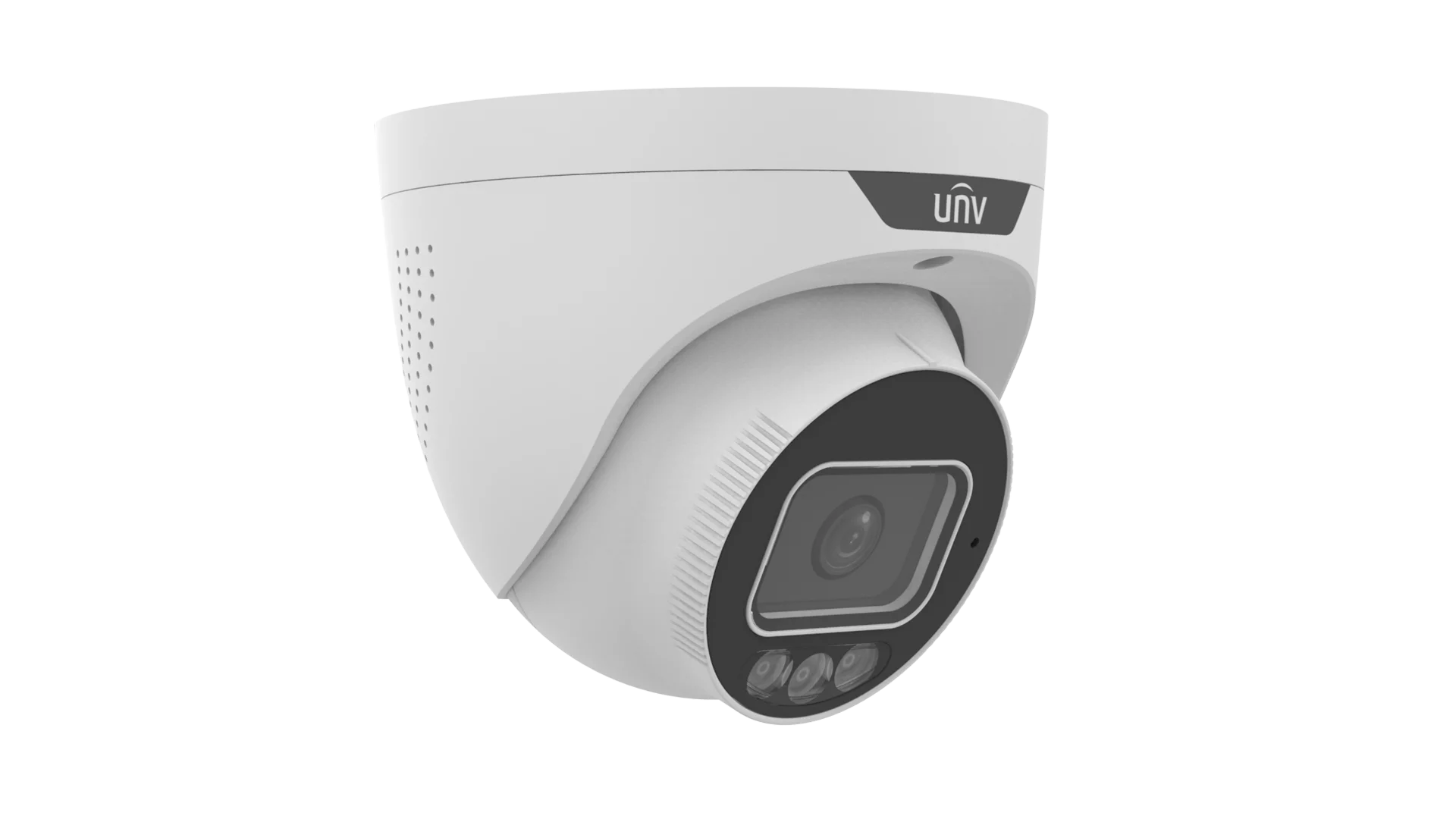

The IPC3635SS-ADF28KMC-I1 delivers reliable 5MP surveillance with advanced Smart Dual Light technology, AI-powered detection, and active deterrence features. Designed for proactive security, it combines high-quality imaging with intelligent human, vehicle, and non-motor vehicle classification to reduce false alarms and improve event accuracy.
Featuring a large aperture F1.0 lens, 130 dB True WDR, built-in microphone and speaker, and dual-light illumination up to 30 m (98 ft), this camera provides clear video day and night. With integrated red/blue warning lights, configurable audio alarms, 512 GB microSD support, PoE connectivity, and IP67 weather protection, the IPC3635SS-ADF28KMC-I1 is ideal for commercial, perimeter, retail, and industrial security applications.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3635SS-ADF28KMC-I1 |
| Camera Type | 5MP Tri-Guard Fixed Dual-Light Turret Network Camera |
| Series | Professional Series |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2880 × 1620 (5MP) |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.0 Large Aperture |
| Horizontal Field of View | 112.8° |
| Vertical Field of View | 59.4° |
| Diagonal Field of View | 116.3° |
| Minimum Illumination | Colour: 0.001 Lux (F1.0, AGC ON); 0 Lux with light |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >56 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 5MP @ 30fps |
| Video Streams | Triple Stream |
| Bit Rate | 128 Kbps – 16 Mbps |
| Smart Encoding | U-Code Supported |
| Supplemental Lighting | Smart Dual Light (IR + Warm White Light) |
| IR Distance | Up to 30 m (98 ft) |
| Warm Light Distance | Up to 30 m (98 ft) |
| Audio | Built-in Microphone + Speaker |
| Audio Interface | 1 × Audio Input / 1 × Audio Output |
| Alarm Interface | 1 × Alarm Input / 1 × Alarm Output |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 10 W |
| Weather Protection | IP67 |
| Housing | Metal |
| Adjustment | Pan: 0°–360°, Tilt: 0°–80°, Rotate: 0°–360° |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Function | Distance |
|---|---|
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
