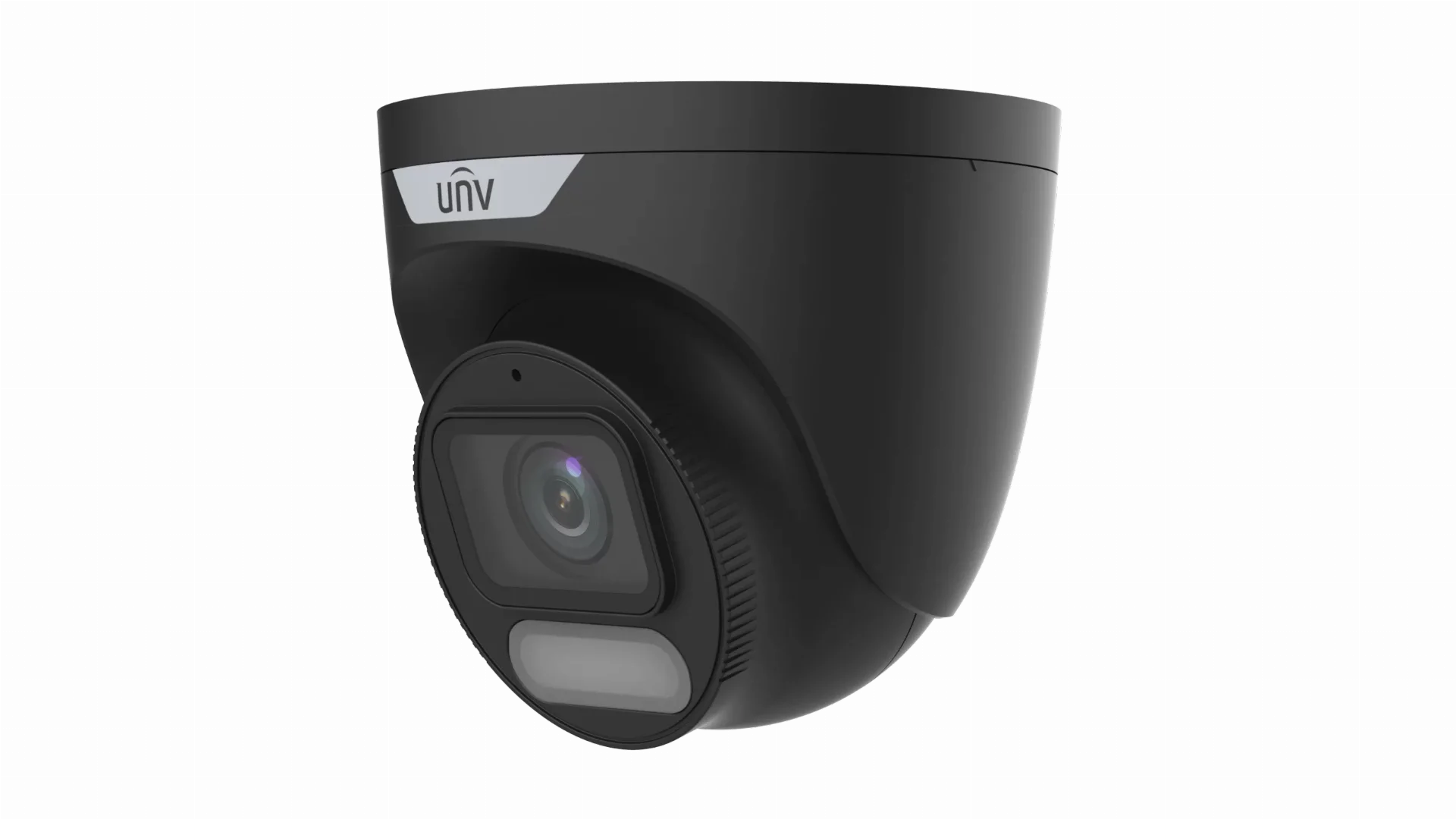

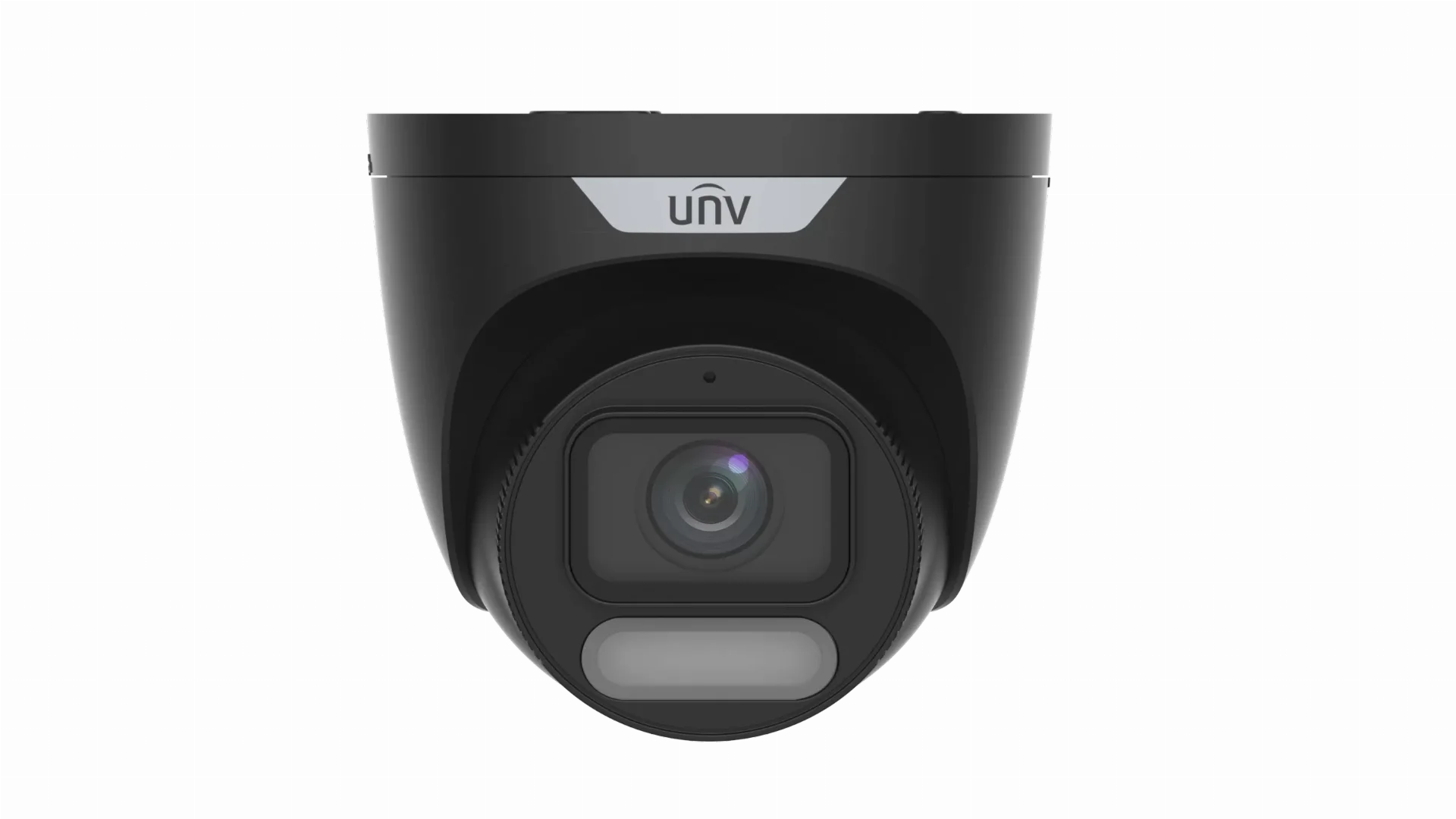

The Uniview IPC3628SR-ADF28KM-WP-BK is a premium 8MP ColorHunter turret network camera designed to deliver exceptional 24/7 full-colour surveillance in both daytime and low-light environments. Featuring a large 1/1.8" CMOS sensor, F1.0 large-aperture lens, and advanced Wise-ISP technology, it produces bright, detailed images with improved colour accuracy, reduced noise, and enhanced motion clarity.
Equipped with a 2.8mm fixed lens, 120 dB True WDR, and warm white light illumination up to 30 metres, the IPC3628SR-ADF28KM-WP-BK provides reliable identification in challenging lighting conditions. The discreet black housing, built-in microphone, 512 GB microSD support, IP67 weatherproof protection, and PoE capability make it an ideal solution for commercial, residential, and architectural surveillance installations requiring high-resolution video and dependable performance.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3628SR-ADF28KM-WP-BK |
| Camera Type | 8MP ColorHunter Wise-ISP Fixed Turret Network Camera (Black Housing) |
| Series | Advance Series |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 (8MP / 4K) |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.0 Large Aperture |
| Horizontal Field of View | 111° |
| Vertical Field of View | 63° |
| Diagonal Field of View | 131° |
| Minimum Illumination | Colour: 0.0003 Lux (F1.0, AGC ON) |
| Day/Night | Full Colour / Smart Illumination |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 120 dB True WDR |
| Signal-to-Noise Ratio | >52 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 8MP @ 20fps; 5MP/4MP/1080p @ 30fps |
| Video Streams | Dual Stream |
| Bit Rate | 128 Kbps – 6144 Kbps |
| Smart Encoding | U-Code Supported |
| Image Technology | ColorHunter with Wise-ISP |
| Supplemental Lighting | Warm White Light |
| White Light Distance | Up to 30 m (98 ft) |
| Audio | Built-in Microphone |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 3.9 W |
| Weather Protection | IP67 |
| Housing | Metal, Black Finish |
| Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Function | Distance |
|---|---|
| Detect | 63.0 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
Supports:
