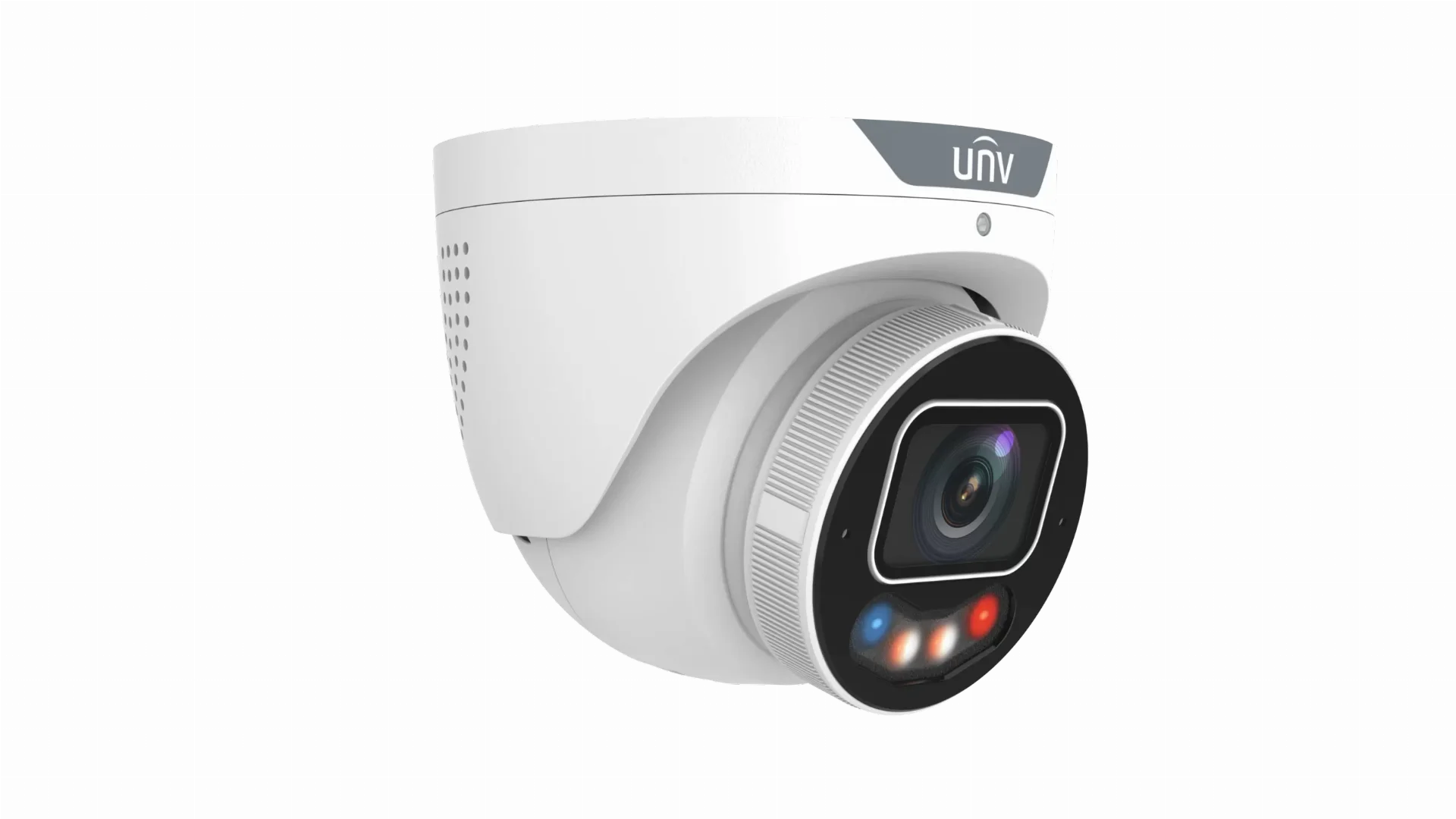

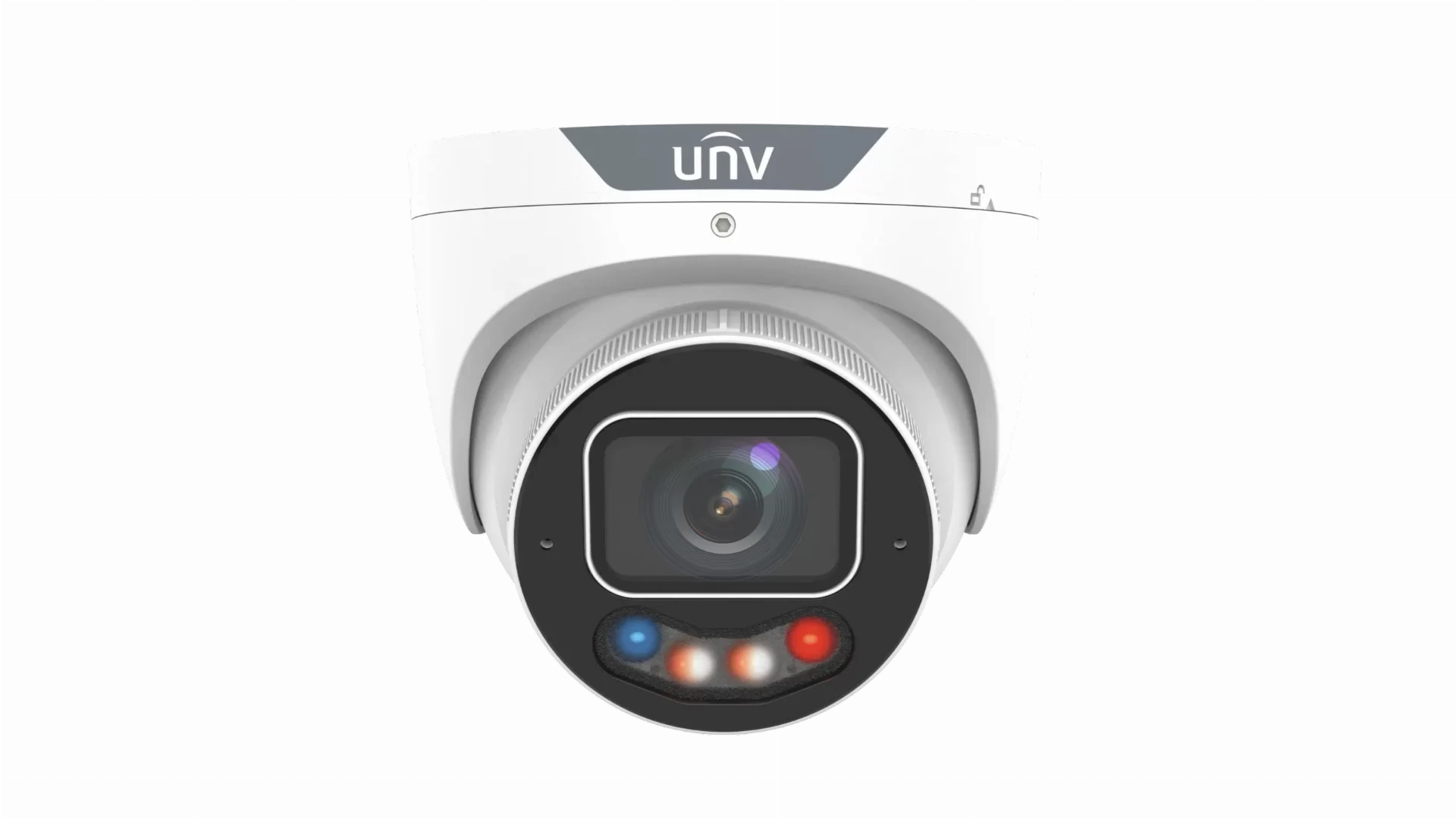

The IPC3638SE-ADZKMC-WP-I1 delivers advanced 8MP surveillance with ColorHunter Wise-ISP technology, motorized varifocal imaging, and intelligent Tri-Guard security features. Designed for demanding security applications, it provides 24-hour full-colour video, accurate AI detection, and active monitoring capabilities.
Featuring a 1/1.8" CMOS sensor, F1.2 large-aperture motorized lens, and 130 dB True WDR, the camera captures detailed images in both low-light and high-contrast environments. Smart Intrusion Prevention uses AI-based classification to focus on humans, vehicles, and non-motor vehicles while reducing false alarms caused by environmental movement.
The IPC3638SE-ADZKMC-WP-I1 includes Smart Dual Light illumination with up to 30 m IR and warm white light, built-in microphone and speaker, alarm I/O, and support for up to 512 GB microSD storage. With IP67 weather protection, IK10 vandal resistance, PoE support, and flexible varifocal coverage, it is ideal for commercial sites, perimeter security, industrial facilities, and large-area surveillance applications.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3638SE-ADZKMC-WP-I1 |
| Camera Type | 8MP Tri-Guard VF Dual Light Turret Network Camera |
| Series | OwlView Plus Series |
| Image Sensor | 1/1.8" CMOS |
| Maximum Resolution | 3840 × 2160 (8MP / 4K) |
| Lens | 2.8–12 mm Motorized Varifocal Lens |
| Aperture | F1.2 Large Aperture |
| Horizontal Field of View | 111.5°–54.1° |
| Vertical Field of View | 60.2°–30.6° |
| Diagonal Field of View | 128.7°–61.9° |
| Minimum Illumination | Colour: 0.0005 Lux (F1.2, AGC ON) |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >56 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 8MP @ 30fps |
| Video Streams | Triple Stream |
| Bit Rate | 128 Kbps – 6144 Kbps |
| Smart Encoding | U-Code Supported |
| Image Technology | ColorHunter with Wise-ISP Technology |
| Supplemental Lighting | Smart Dual Light (IR + Warm White Light) |
| IR Distance | Up to 30 m (98 ft) |
| Warm Light Distance | Up to 30 m (98 ft) |
| Audio | Built-in Microphone + Speaker |
| Audio Interface | 1 × Audio Input / 1 × Audio Output |
| Alarm Interface | 1 × Alarm Input / 1 × Alarm Output |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 10 W |
| Weather Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing | Metal |
| Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Function | Distance |
|---|---|
| Detect | 63.0 m – 270.0 m (206.7 ft – 885.8 ft) |
| Observe | 25.2 m – 108.0 m (82.7 ft – 354.3 ft) |
| Recognize | 12.6 m – 54.0 m (41.3 ft – 177.2 ft) |
| Identify | 6.3 m – 27.0 m (20.7 ft – 88.6 ft) |
