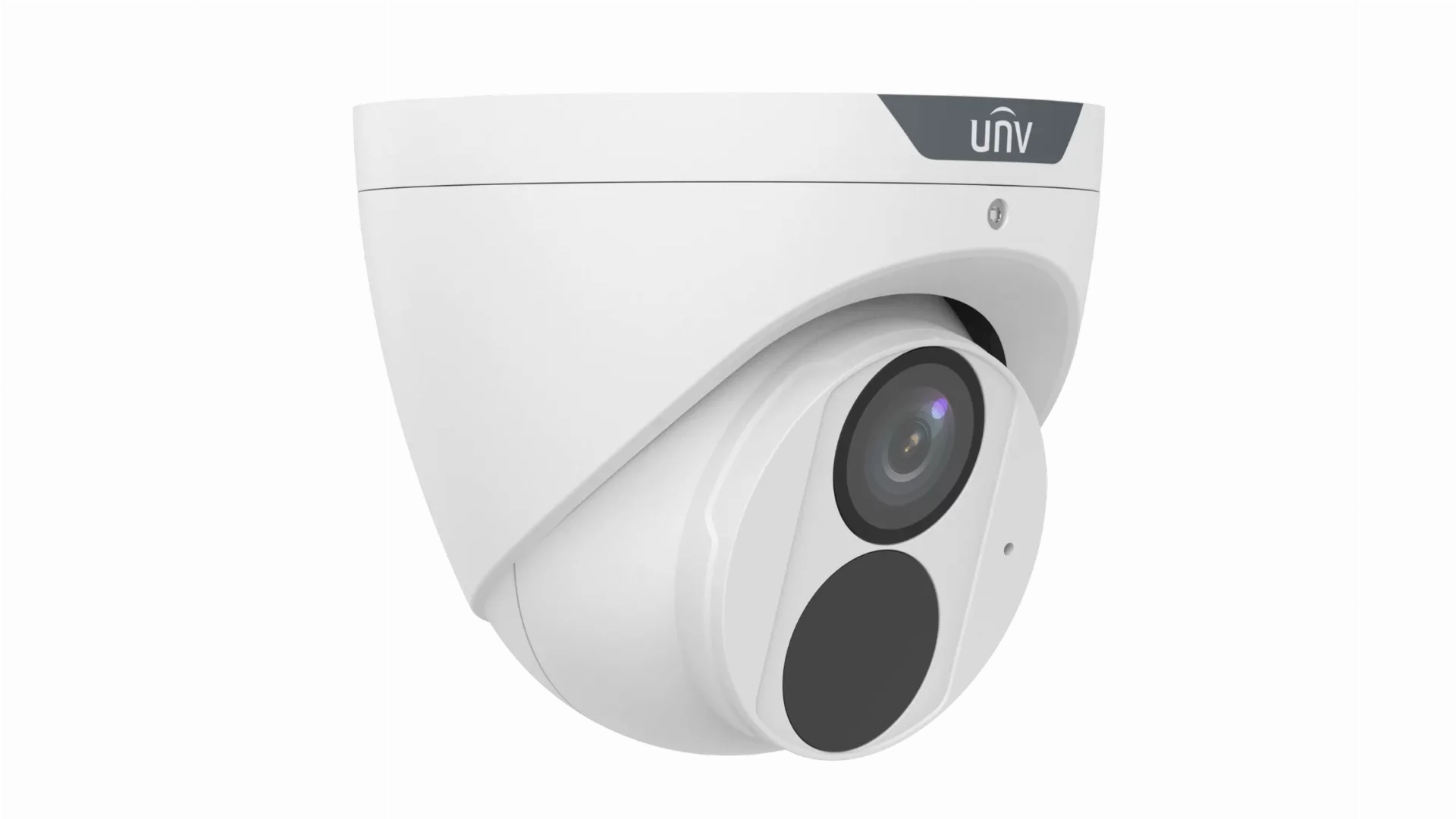

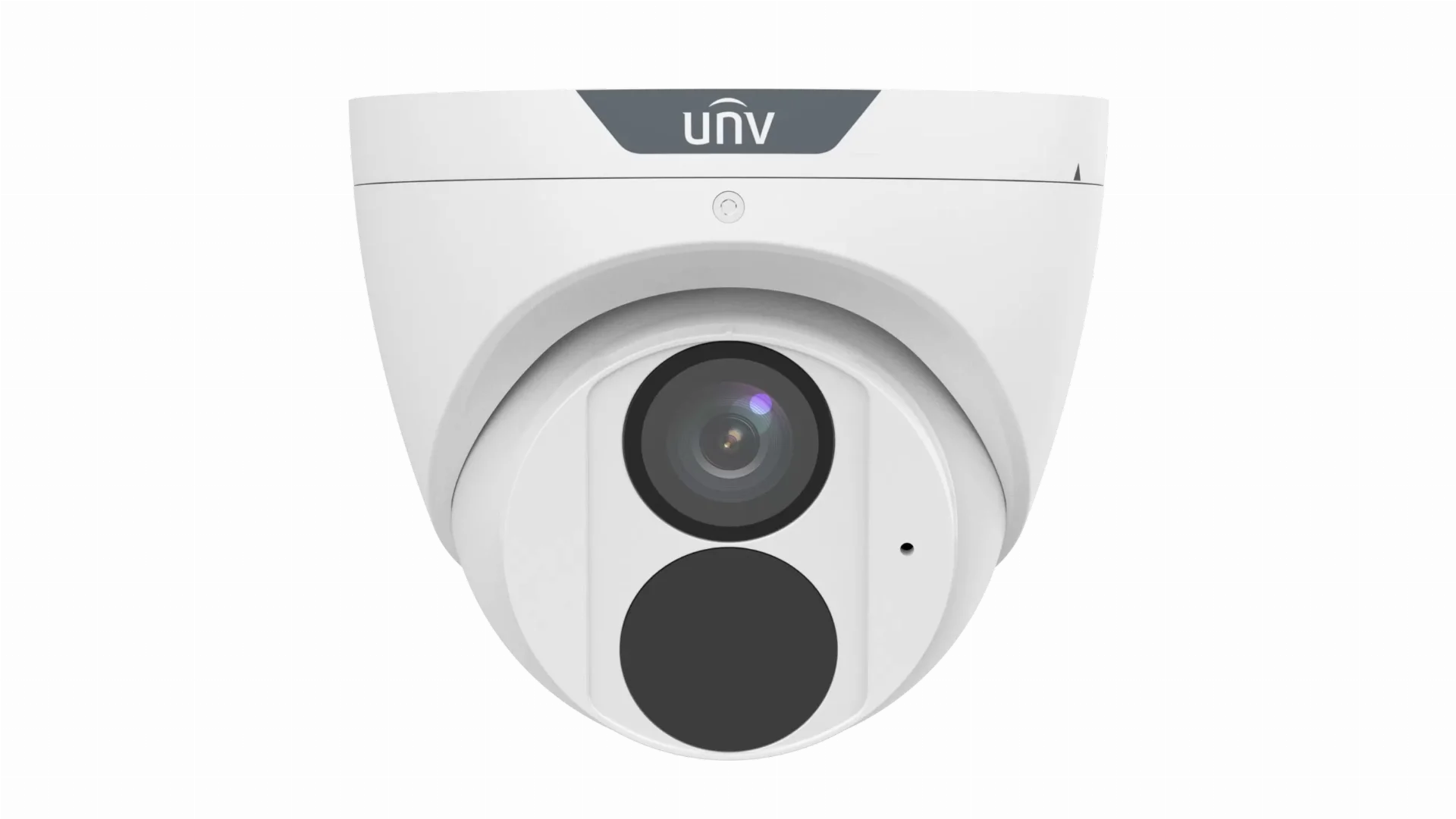

Capture exceptional image detail with the Uniview IPC3618SR-ADF28KM-H, an 8MP network IR turret camera designed for reliable indoor and outdoor surveillance. Featuring a high-performance 1/2.8" CMOS sensor, 120 dB True WDR, and Easystar low-light technology, it delivers crisp, clear video in challenging lighting conditions. The 2.8mm fixed lens provides a wide 98.7° horizontal field of view, while Smart IR illumination offers dependable night vision up to 30 metres. Built-in PoE, an integrated microphone, and IP67 weatherproof construction make installation simple and ensure dependable performance in a wide range of environments.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3618SR-ADF28KM-H |
| Camera Type | 8MP HD IR Fixed Turret (Eyeball) Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 (8MP) |
| Lens | 2.8 mm Fixed |
| Aperture | F1.6 |
| Horizontal Field of View | 98.7° |
| Minimum Illumination | Colour: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut Filter (ICR) |
| Wide Dynamic Range | 120 dB True WDR |
| Digital Noise Reduction | 2D/3D DNR |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 8MP @ 20fps; 5MP/4MP/1080p @ 30fps |
| IR Distance | Up to 30 m (98 ft) |
| Audio | Built-in Microphone |
| Edge Storage | MicroSD/SDHC/SDXC up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | ≤7.5 W |
| Weather Rating | IP67 |
| Housing | Metal |
| Operating Temperature | -30°C to +60°C |
| Dimensions | Ø118 × 96 mm |
| Weight | Approx. 450 g |
The latest datasheet confirms support for Ultra 265 compression, 120 dB True WDR, Smart IR with a 30 m range, built-in microphone, 512 GB microSD storage, PoE, and IP67 weather protection.
| Function | Distance |
|---|---|
| Detect | 86.9 m |
| Observe | 34.8 m |
| Recognize | 17.4 m |
| Identify | 8.7 m |
Supports:
