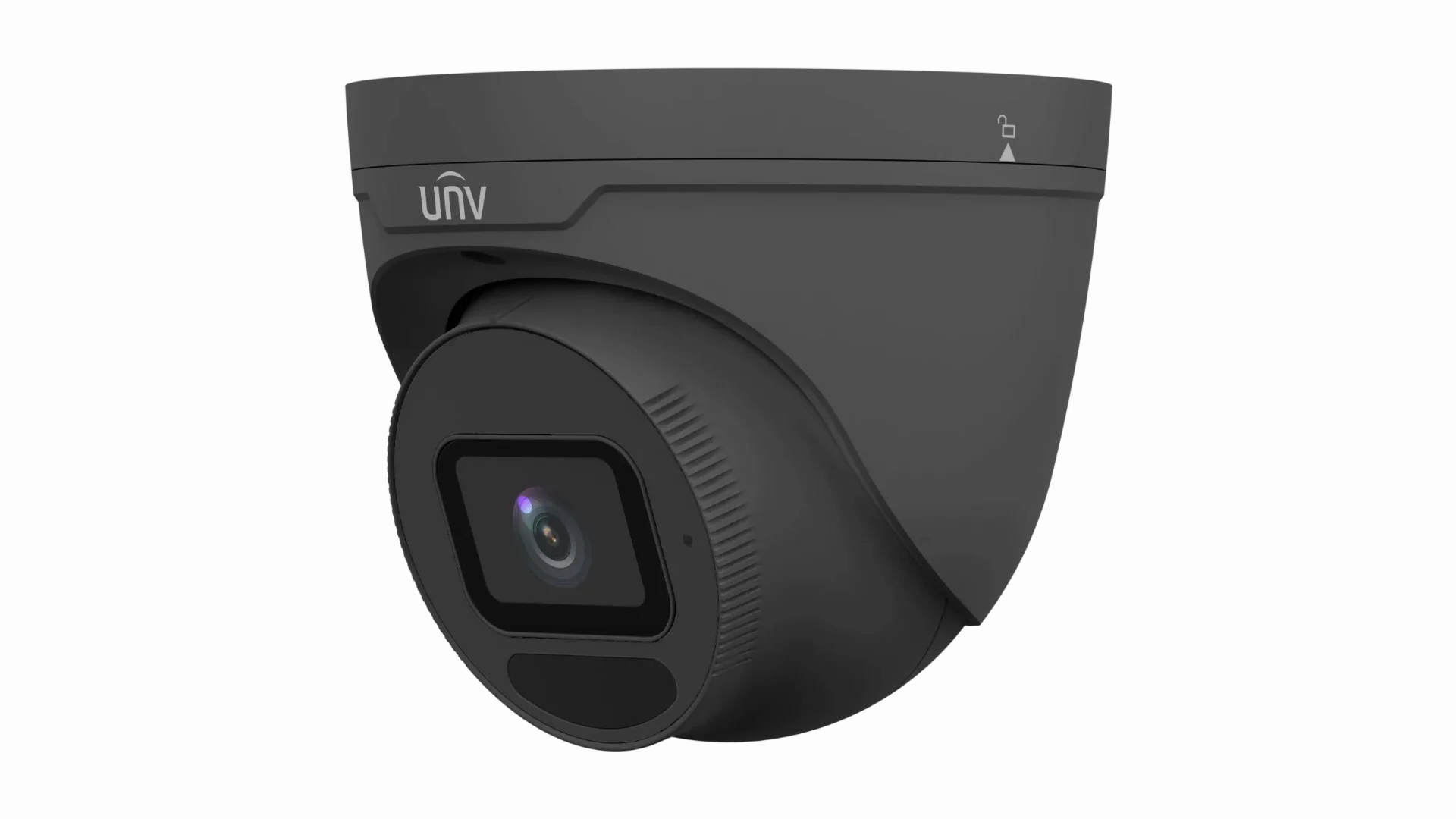

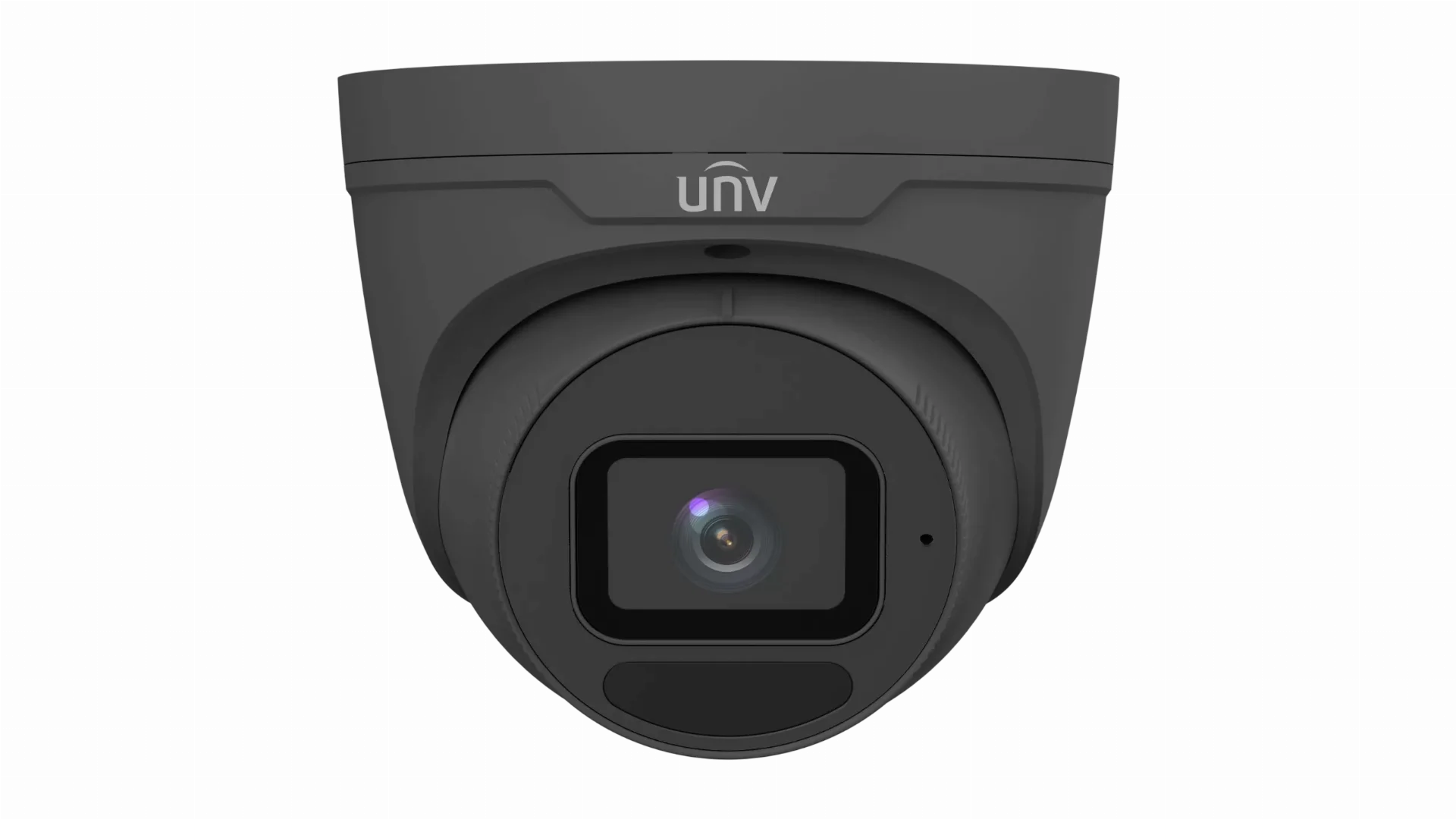

The IPC3638SS-ADF28K-I1-BK delivers exceptional 8MP Ultra HD surveillance with advanced LightHunter low-light technology for clear, detailed imaging in challenging lighting conditions. Featuring a high-performance 1/2.8" CMOS sensor, 130 dB True WDR, and a 2.8 mm fixed lens, it provides reliable coverage for commercial, industrial, and outdoor security applications.
Equipped with intelligent perimeter protection, the camera accurately detects human, vehicle, and non-motor vehicle targets while reducing false alarms caused by environmental changes. Smart IR illumination provides visibility up to 40 m (131 ft), while Ultra 265 compression, built-in microphone, microSD storage support up to 512 GB, and PoE connectivity deliver efficient and flexible surveillance deployment.
Built with a durable IP67-rated metal housing, the IPC3638SS-ADF28K-I1-BK is designed for dependable operation in demanding environments, making it ideal for perimeter monitoring, commercial properties, warehouses, and critical infrastructure applications.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3638SS-ADF28K-I1-BK |
| Camera Type | 8MP LightHunter Fixed IR Turret Network Camera (Black Housing) |
| Series | Advance Series |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 3840 × 2160 (8MP / 4K) |
| Lens | 2.8 mm Fixed Lens |
| Aperture | F1.6 |
| Horizontal Field of View | 97.49° |
| Vertical Field of View | 52.31° |
| Diagonal Field of View | 102.29° |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >56 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 8MP @ 30fps |
| Video Streams | Triple Stream |
| Bit Rate | 128 Kbps – 16 Mbps |
| Smart Encoding | U-Code Supported |
| Image Technology | LightHunter Low-Light Technology |
| Supplemental Lighting | Smart IR |
| IR Distance | Up to 40 m (131 ft) |
| Audio | Built-in Microphone + Audio I/O |
| Alarm Interface | 1 Alarm Input / 1 Alarm Output |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G, T & M |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 8.0 W |
| Weather Protection | IP67 |
| Housing | Metal, Black Finish |
| Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Function | Distance |
|---|---|
| Detect | 86.9 m (285.1 ft) |
| Observe | 34.8 m (114.0 ft) |
| Recognize | 17.4 m (57.0 ft) |
| Identify | 8.7 m (28.5 ft) |
