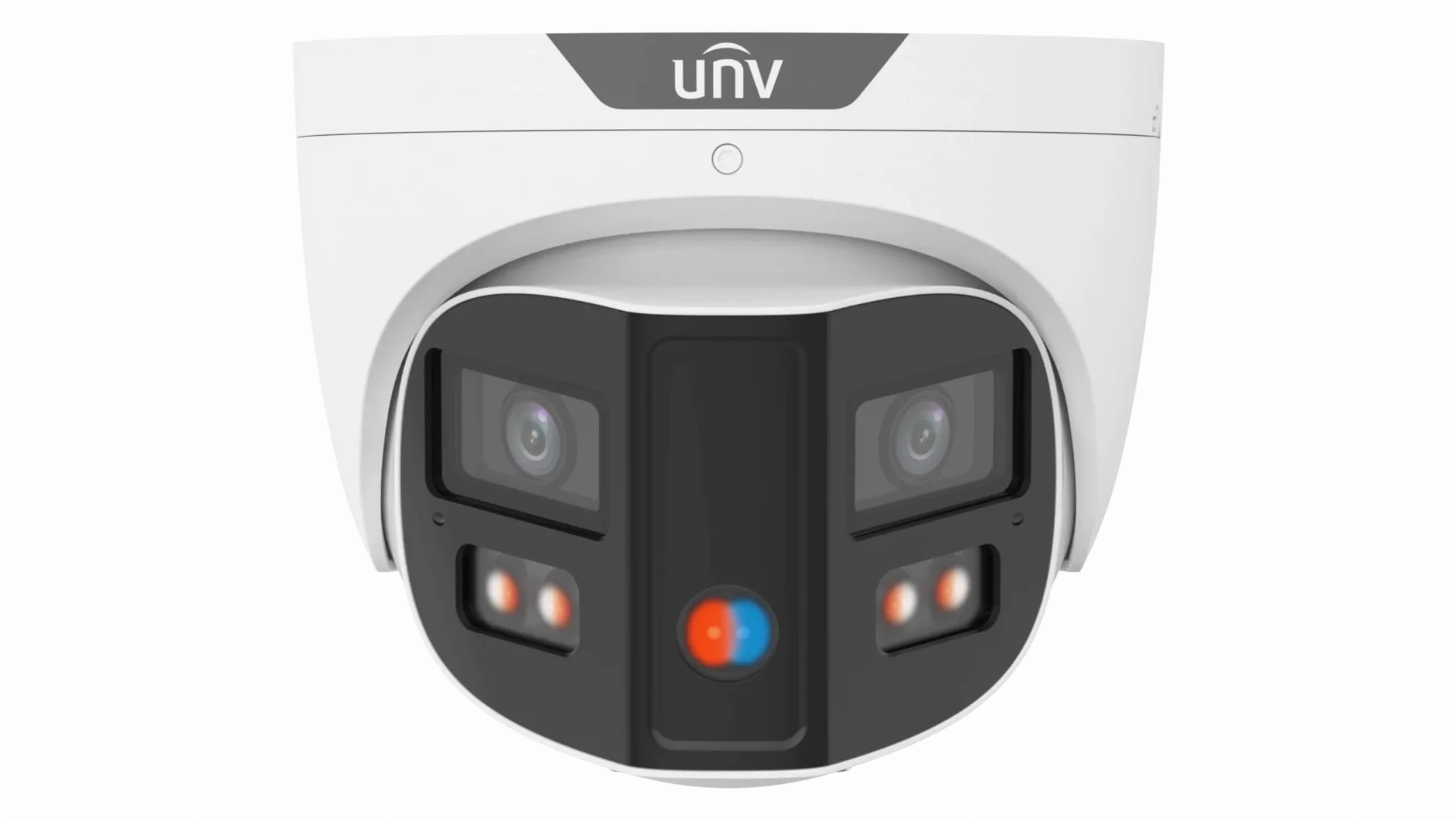

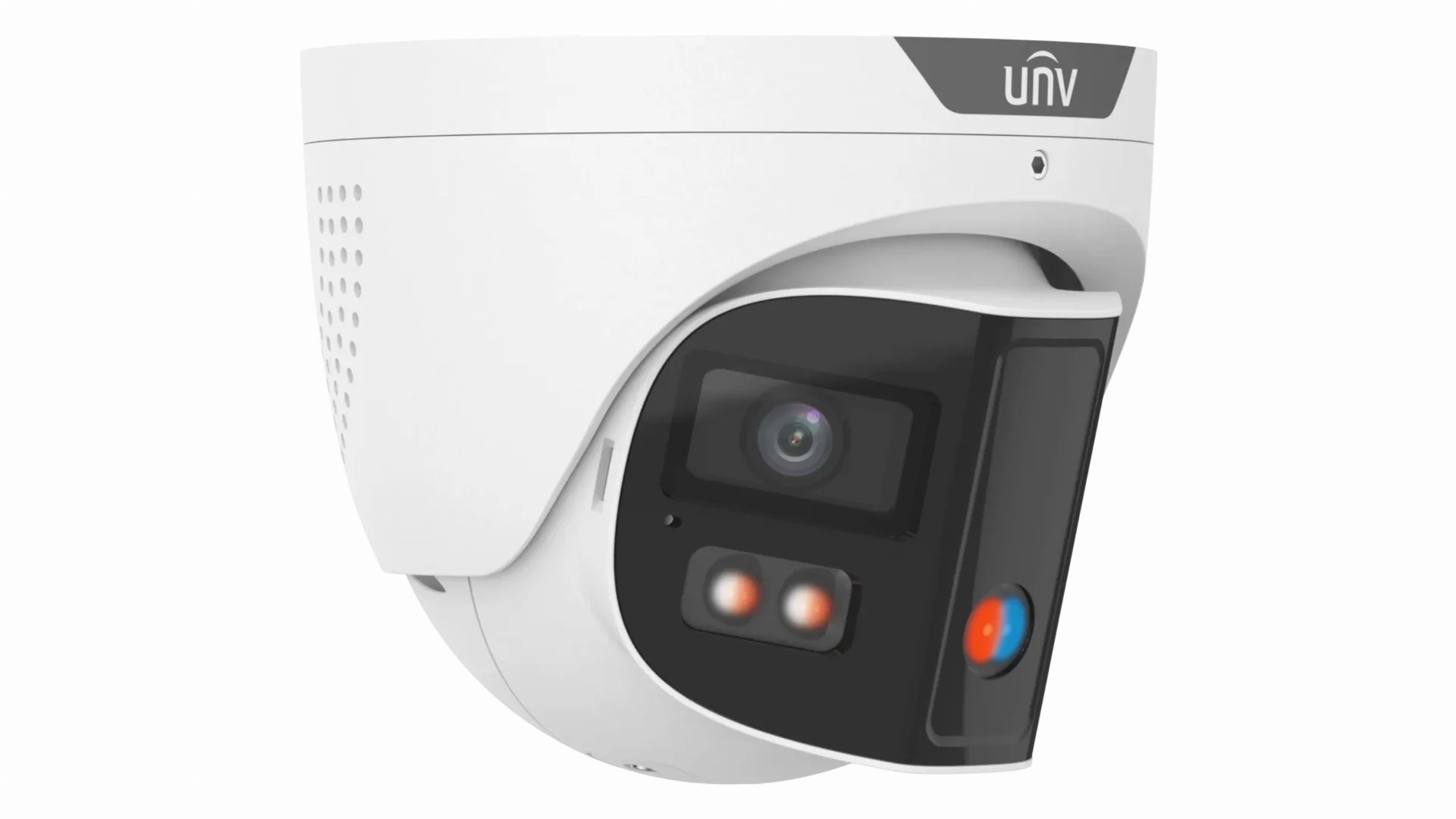

The Uniview IPC3K28SE-ADF28KMC-DL-I0 is an advanced 8MP Tri-Guard 2.0 Omniview dual-sensor turret camera designed to provide expansive area coverage from a single installation point. Featuring dual 2.8mm lenses with advanced splicing technology, it creates a seamless 180° horizontal panoramic view, eliminating blind spots while reducing the need for multiple cameras.
Powered by ColorHunter technology, this camera delivers 24/7 full-colour imaging, even in low-light environments. The built-in double-light system, including infrared and white light illumination, ensures reliable monitoring day and night, while integrated red and blue warning lights and an audible alarm provide active deterrence against unwanted activity.
The IPC3K28SE-ADF28KMC-DL-I0 combines intelligent AI analytics with wide-area surveillance, featuring Smart Intrusion Prevention, human/vehicle classification, people flow counting, crowd density monitoring, and colour retrieval for faster event investigation. With built-in dual microphones, speaker, alarm interfaces, onboard storage, and rugged outdoor protection, it is an ideal solution for entrances, parking areas, building perimeters, retail spaces, and other applications requiring broad coverage with advanced security intelligence.
# of #
| Feature | Specification |
|---|---|
| Model | IPC3K28SE-ADF28KMC-DL-I0 |
| Camera Type | 8MP Tri-Guard 2.0 Dual-Sensor 180° ColorHunter Omniview Turret Camera |
| Image Sensor | 1/2.5" CMOS (Dual Sensor) |
| Maximum Resolution | 4096 × 1860 (8MP) |
| Lens | Dual 2.8 mm Fixed Lenses |
| Aperture | F1.0 |
| Lens Type | Fixed |
| Horizontal Field of View | 180° |
| Vertical Field of View | 65° |
| Diagonal Field of View | 180° |
| Minimum Illumination | Colour: 0.0005 Lux (F1.0, AGC ON); 0 Lux with supplemental light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter Speed | Auto/Manual, 1 ~ 1/100000 sec |
| Wide Dynamic Range | 130 dB True WDR |
| Signal-to-Noise Ratio | >52 dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Maximum Frame Rate | 8MP (4096 × 1860) @ 20fps |
| Video Streams | Dual Stream |
| Bit Rate | 128 Kbps – 16 Mbps |
| Smart Encoding | U-Code Supported |
| Edge Storage | MicroSD up to 512 GB |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| ONVIF Support | Profiles S, G & T |
| Power Supply | 12 VDC ±25% or PoE (IEEE 802.3af) |
| Power Consumption | ≤12 W |
| Weather Protection | IP67 |
| Housing | Metal Turret Housing |
| Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | ≤95% RH (non-condensing) |
| Feature | Specification |
|---|---|
| Supplemental Lighting | Dual Light (IR + Warm White Light) |
| IR Distance | Up to 30 m (98 ft) |
| Warm Light Distance | Up to 30 m (98 ft) |
| IR Wavelength | 850 nm |
| Light Control | Auto / Manual |
| Function | Distance |
|---|---|
| Detect | 63.1 m (206.7 ft) |
| Observe | 25.2 m (82.7 ft) |
| Recognize | 12.6 m (41.3 ft) |
| Identify | 6.3 m (20.7 ft) |
| Feature | Specification |
|---|---|
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Microphone | Built-in Dual Microphones |
| Speaker | Built-in |
Supports:
