Uniview Doorbell 3MP + 2MP dual cameras, support connection to Uniview NVR for live view, playback, supports true HDR and WDR, support dual-band Wi-Fi(2.4 GHz and 5 GHz) IR range up to 5m, LED light - ED-525B-WB

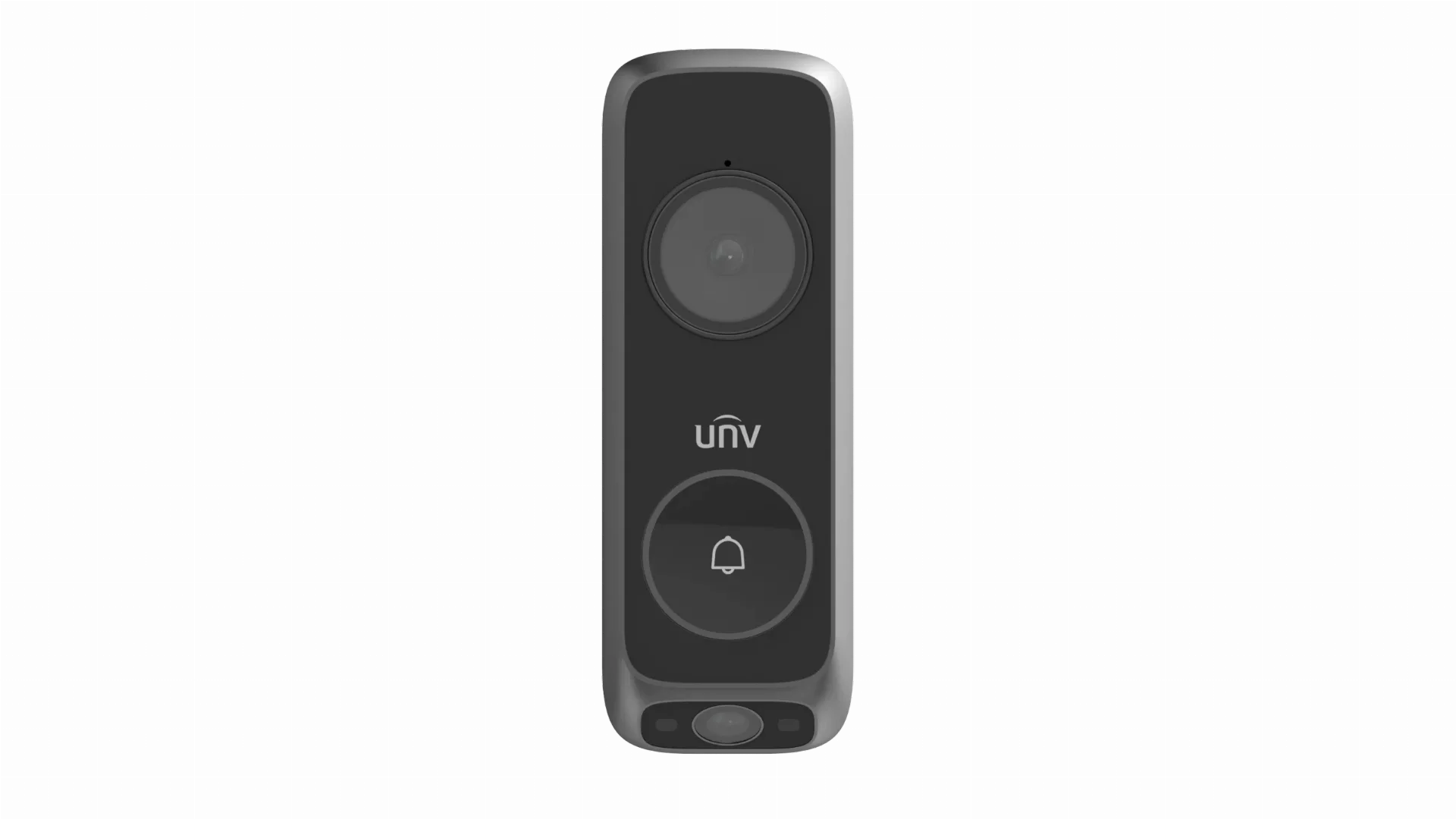

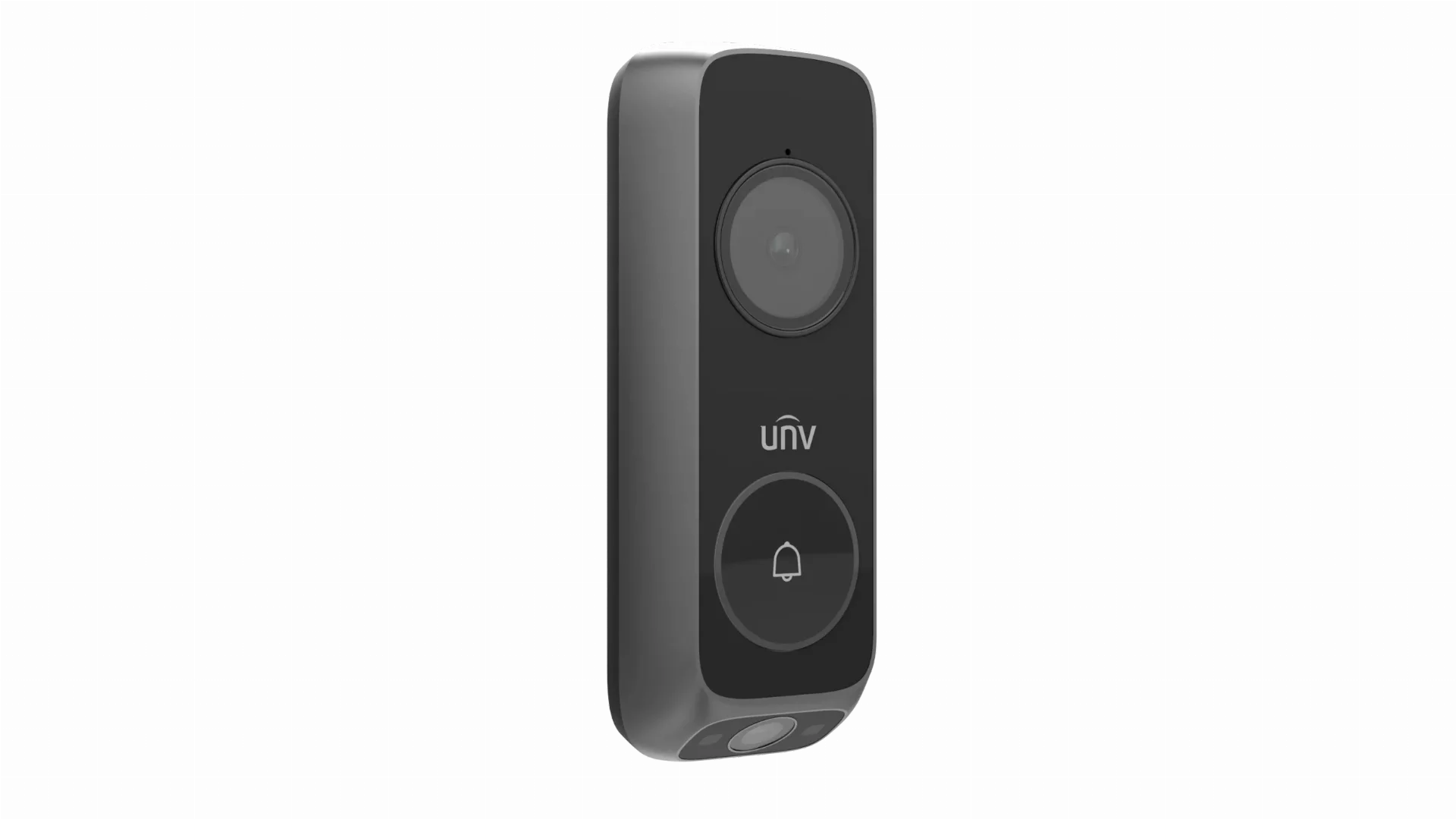

ED-525B-WB Dual-Lens Video Doorbell

Protect your entryway with smarter, more complete front-door monitoring. The ED-525B-WB features a unique dual-lens design with a 3MP main camera to capture visitors and a dedicated 2MP downward-facing camera to keep an eye on packages and deliveries. Intelligent motion, human, and package detection help reduce false alerts while ensuring you never miss important activity.

With two-way audio, dual-band Wi-Fi 6 connectivity, and seamless integration with the UNV-Link app, you can answer your door and monitor your property from anywhere. Built-in 8GB storage, support for mechanical or wireless chimes, and compatibility with Uniview NVRs make the ED-525B-WB a flexible and reliable solution for modern home and business security.

# of #

Please login for pricing

Sold and Shipped By:

Availability

Head Office and Technical Facility 2
Barrie Store 0
Orillia Store 2
Midland Store 0

Quick Specs

  • Warranty 3 Year Warranty

Key Specifications

Camera

SpecificationDetails
Main Camera Resolution3 MP
Sub Camera Resolution2 MP
Main Camera Field of ViewH: 116° • V: 82.5° • D: 131°
Sub Camera Field of ViewH: 96.8° • V: 52.6° • D: 109.9°

Video

SpecificationDetails
Video CompressionH.265, H.264
Wide Dynamic RangeDWDR (Main: 80 dB, Sub: 58 dB)
Minimum Illumination0.02 lux
IlluminatorIR + White Light
IR DistanceUp to 5 m (16 ft)
White Light DistanceUp to 2 m (6.5 ft)

Audio

SpecificationDetails
Two-Way AudioYes
Built-in MicrophoneYes
Built-in SpeakerYes
Noise SuppressionSupported
Audio CompressionG.711, MP3, PCM
Audio Bit Rate128 Kbps
Audio Sampling Rate8 kHz

Detection & Smart Features

  • Motion Detection
  • Human Body Detection (UMD)
  • Package Detection
  • Push notifications to UNV-Link app
  • Remote visitor calls
  • Live view, playback, and alarm search via Uniview NVR

Wireless & Networking

SpecificationDetails
Wi-Fi StandardIEEE 802.11 b/g/n/ax (Wi-Fi 6)
Frequency Bands2.4 GHz & 5 GHz
BluetoothIntegrated (for setup)
EncryptionWPA-PSK, WPA2-PSK, WPA3-Personal
AntennaBuilt-in omnidirectional
Network ProtocolsTCP/IP, IPv4, HTTP, RTP, RTSP, NTP

Chime Support

  • Mechanical door chime
  • Wireless Sub-1GHz chime
  • Supports up to 3 wireless chimes or 1 mechanical chime
  • Includes 240 mAh rechargeable lithium power kit for mechanical chime compatibility

Storage

SpecificationDetails
Built-in Storage8 GB eMMC

Interface

SpecificationDetails
Reset ButtonMicro switch (pairing & reset)
Anti-Tamper ButtonYes
Call ButtonSingle illuminated call button

General

SpecificationDetails
Power InputAC 12–24 V
Power Consumption10 W
Operating Temperature-30°C to 60°C (-22°F to 140°F)
Charging Temperature0°C to 45°C
Weather RatingIP65
InstallationBracket mount with contact terminals
Dimensions55.8 × 156.5 × 27.9 mm (2.2 × 6.2 × 1.1 in.)
Net Weight142 g
Gross Weight295 g

Certifications

  • CB
  • CE LVD
  • CE EMC
  • CE RED
  • FCC SDoC
  • FCC ID

Key Features

  • Dual-lens design with dedicated package camera
  • 3MP + 2MP cameras
  • Dual-band Wi-Fi 6
  • Two-way audio
  • Built-in 8GB storage
  • Motion, human, and package detection
  • True HDR & DWDR imaging
  • Bluetooth-assisted setup
  • Mechanical and wireless chime support
  • Compatible with Uniview NVRs and the UNV-Link mobile app.
